Bulkhead Wiring Harness (In Compartment)
Bulkhead Wiring Harness (In Compartment)
BULKHEAD WIRING HARNESS (IN COMPARTMENT)
B30-B55:
B56-B87:

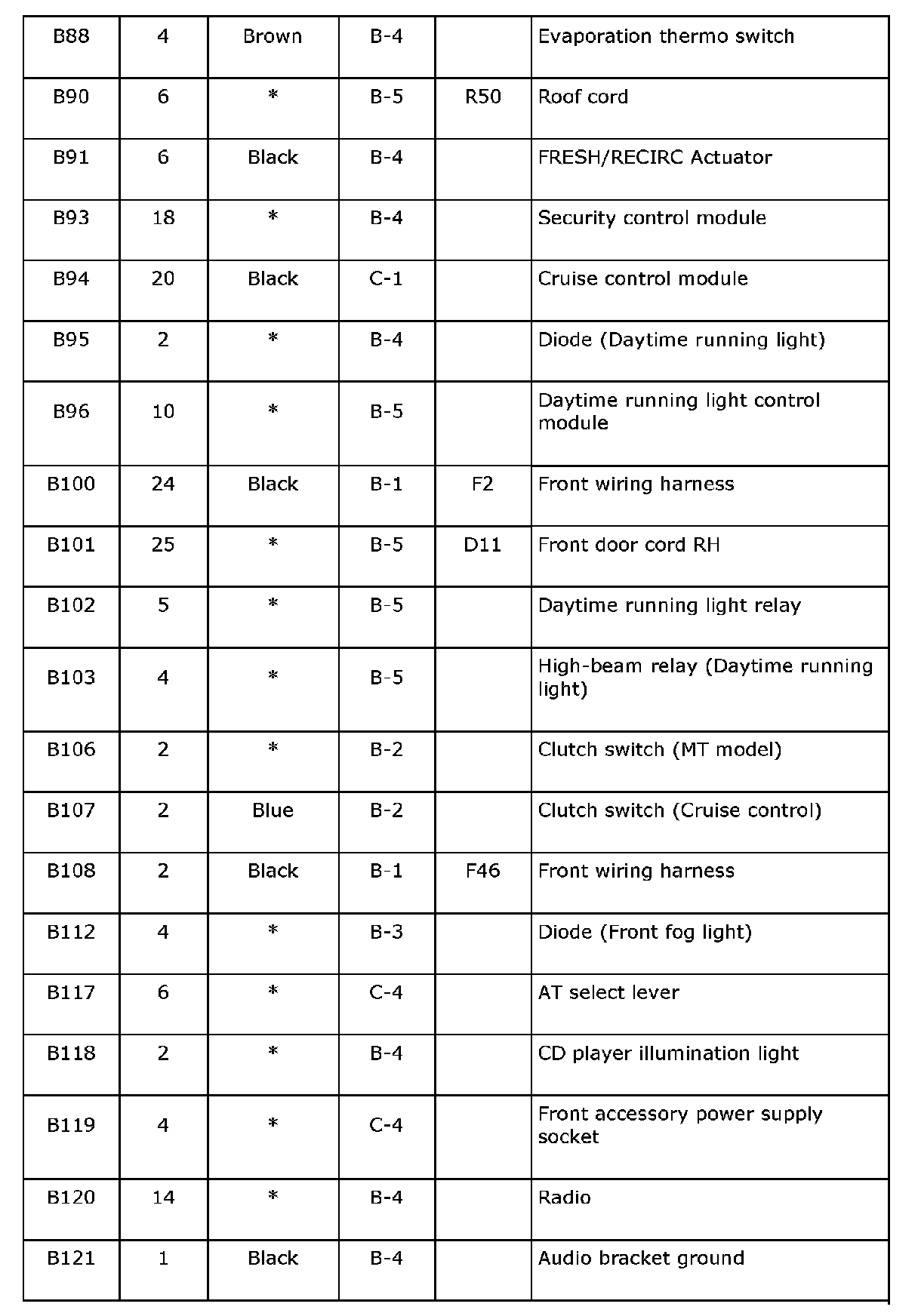

B88-B121:

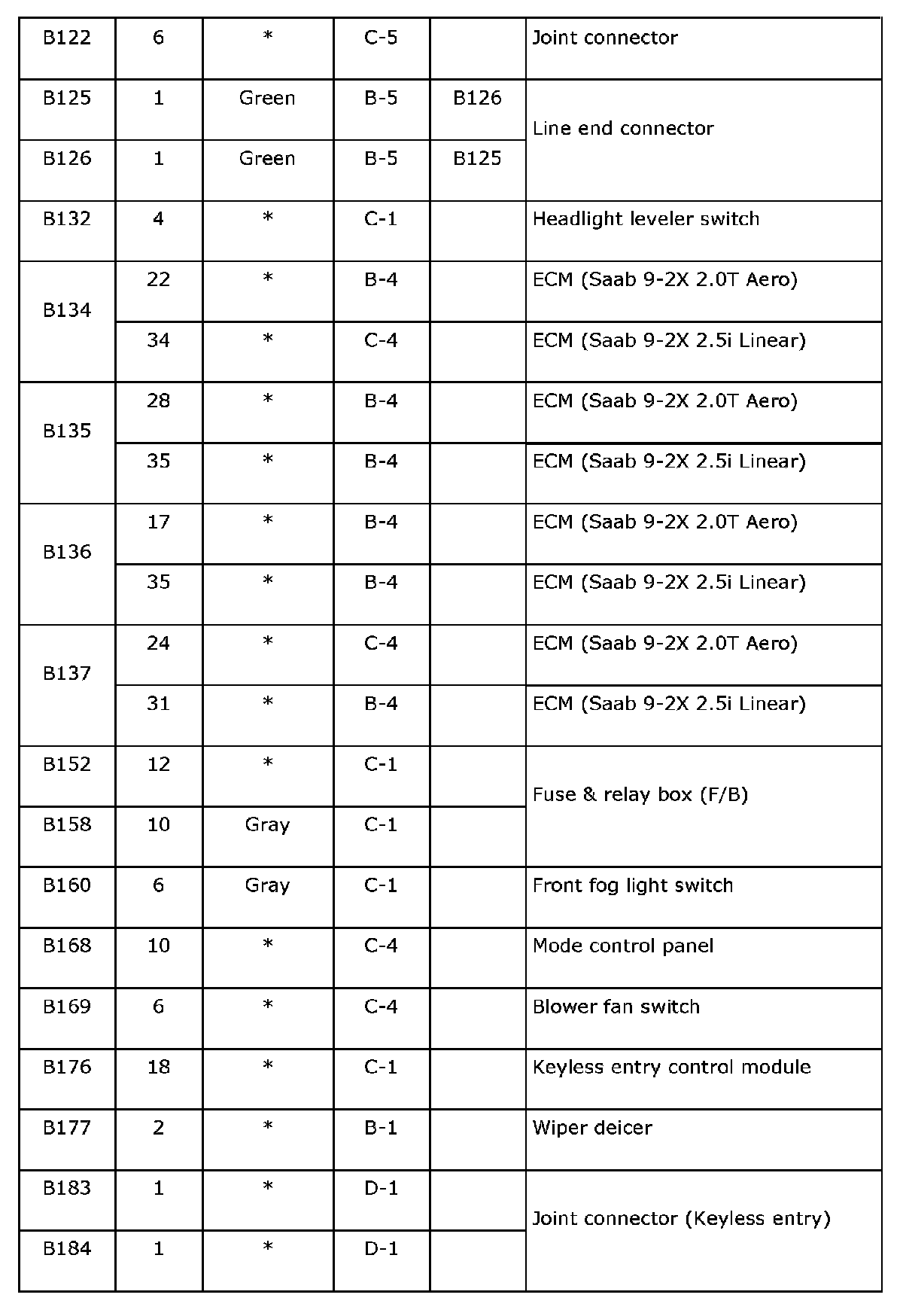

B122-B184:
B191-B275:

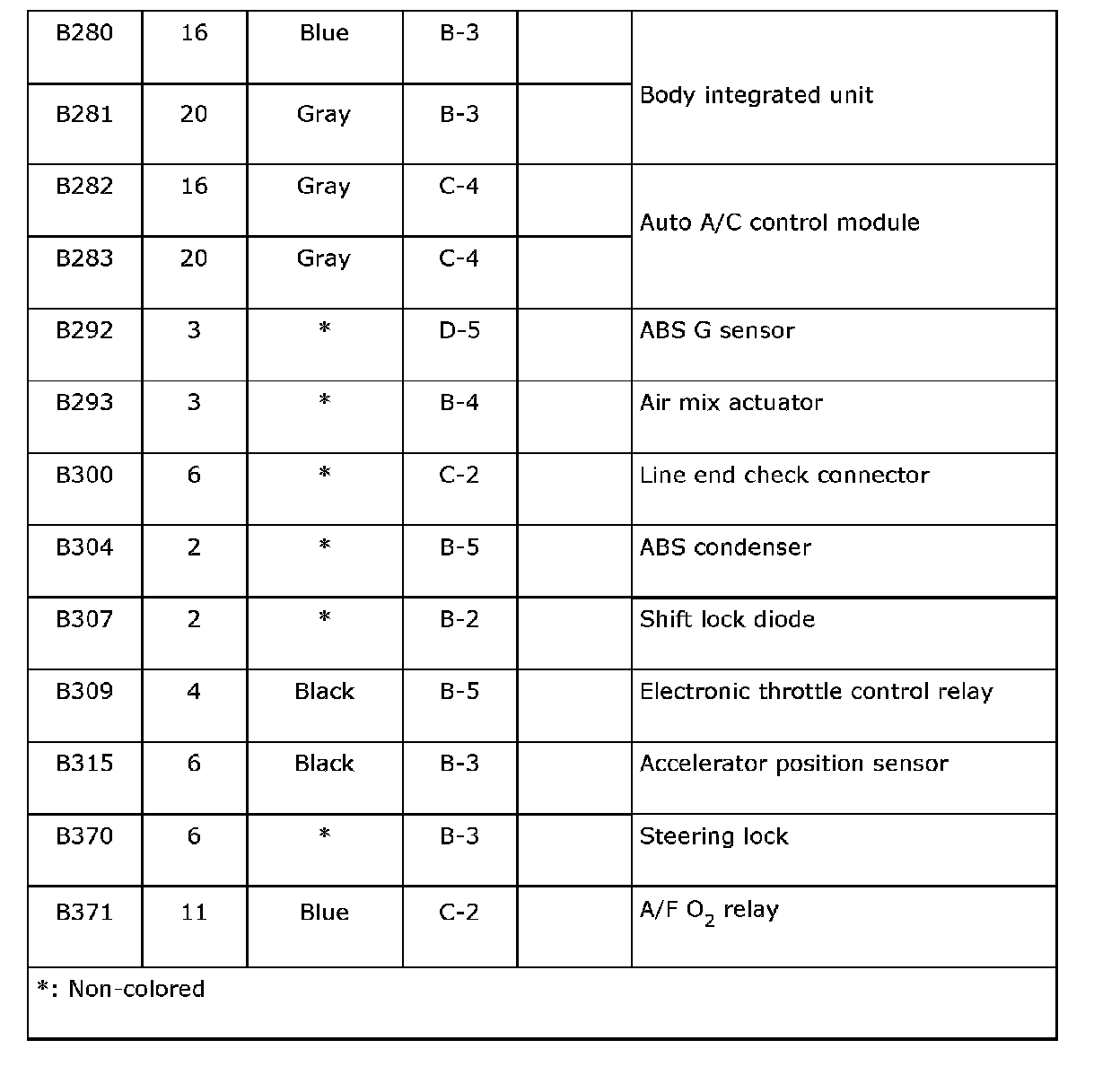

B280-B371:
AB1-AB4 And AB13:
Area View:
