Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2005
>>
9-2X F4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Connectors By Number
>>
D1-D117
D1-D117
DOOR CORD

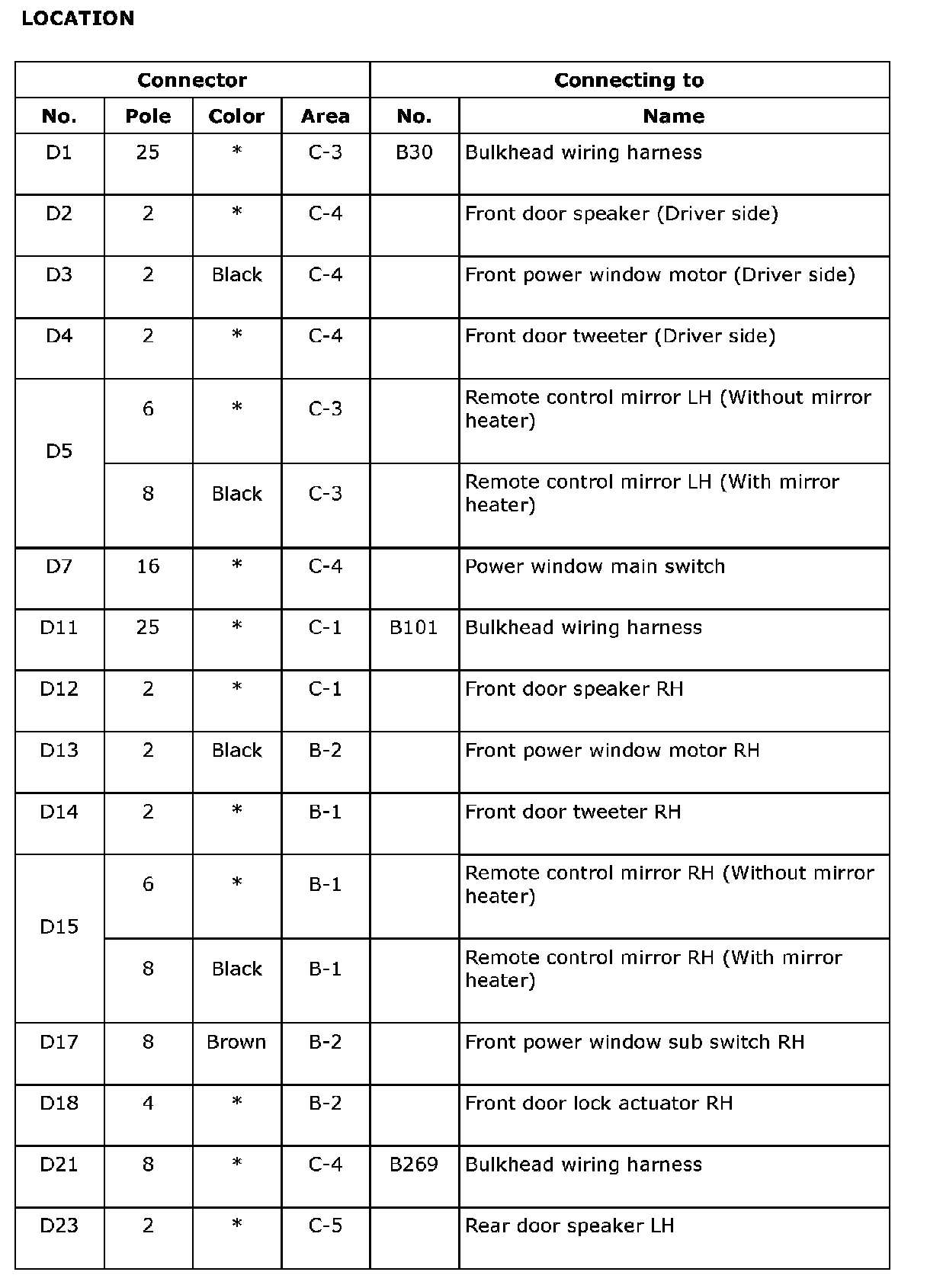

D1-D23:

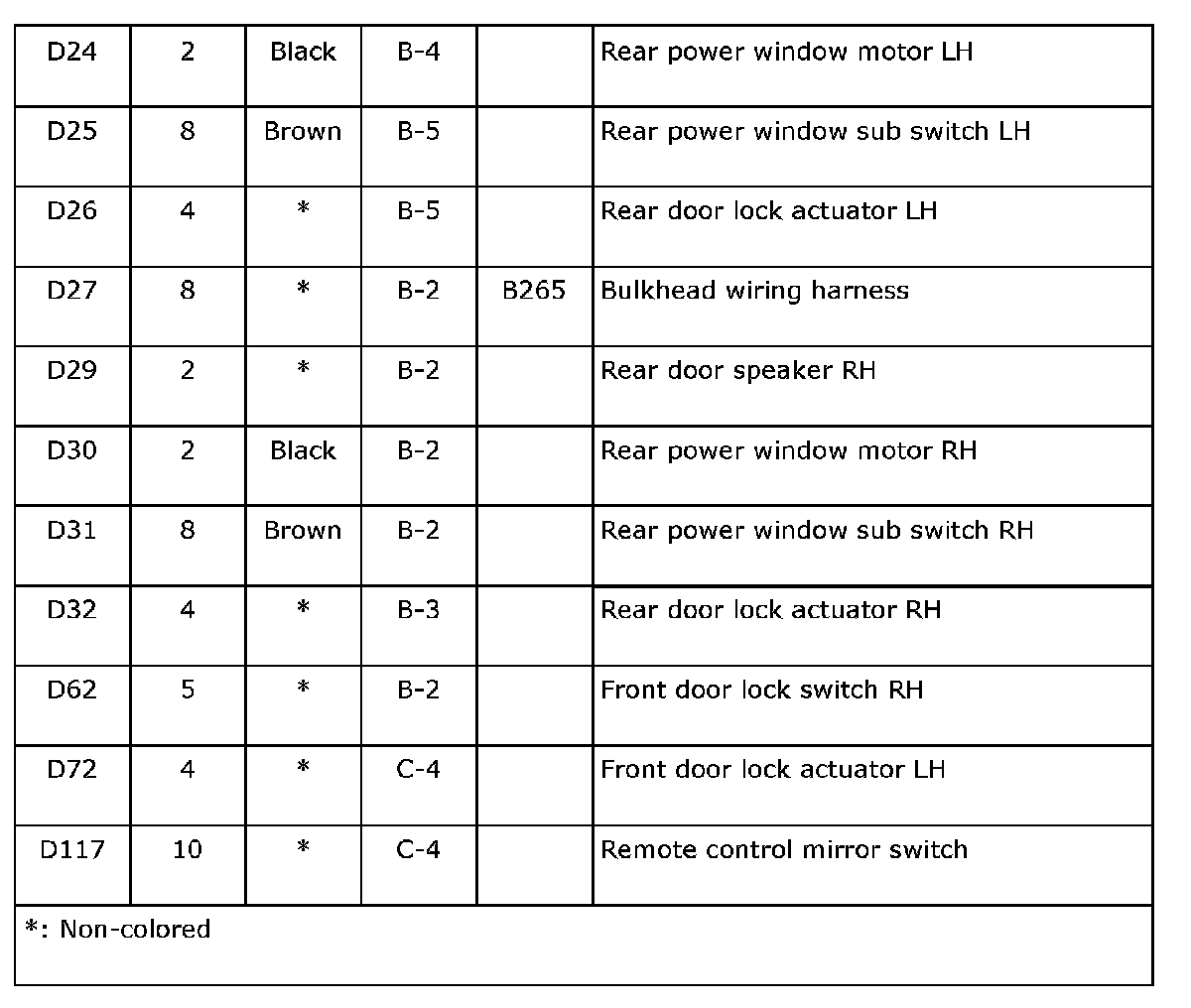

D24-D117:
Area View (Sedan Shown, Wagon Similar):
