Exhaust System
Exhaust System

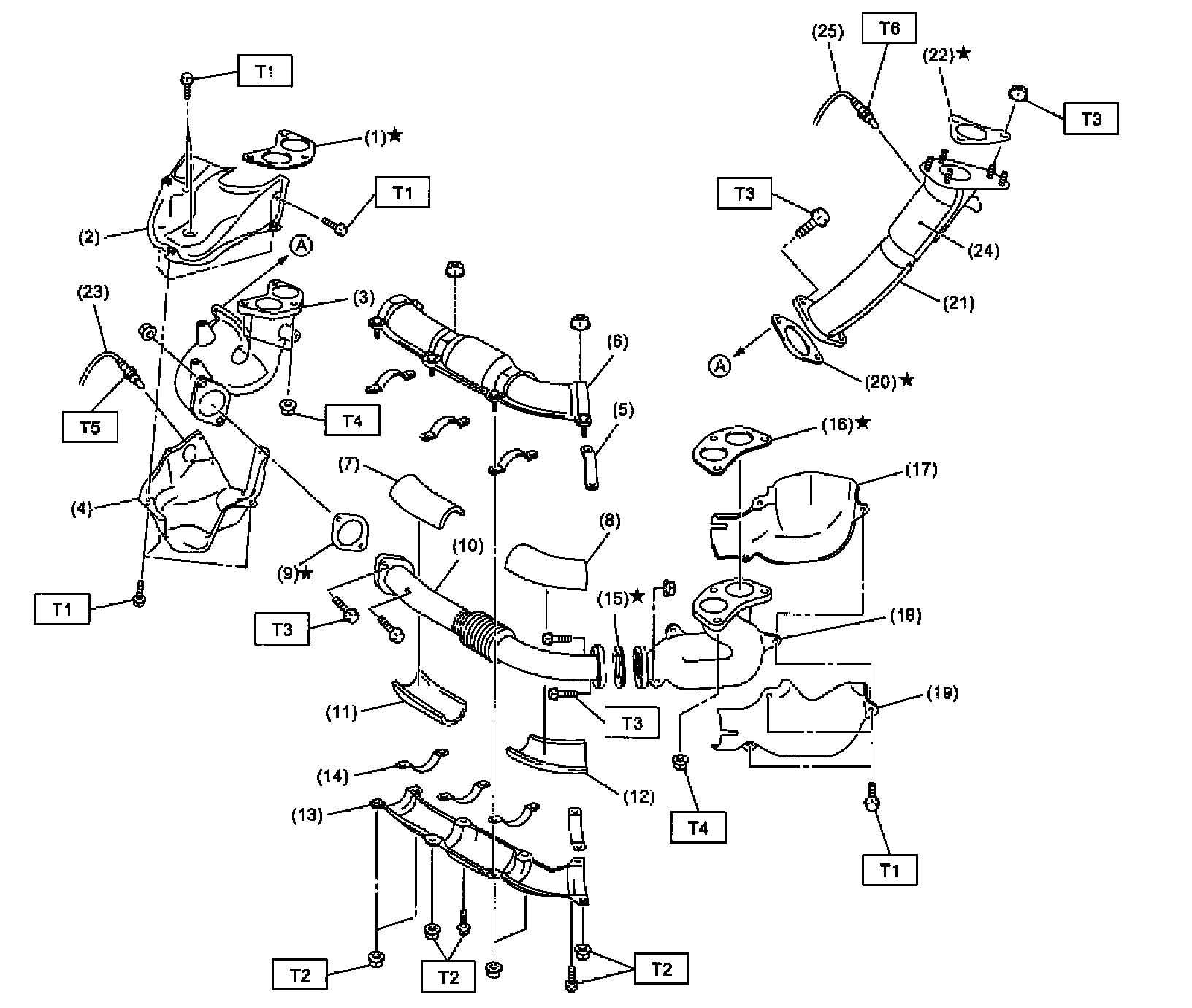

FRONT EXHAUST PIPE (Part 1):

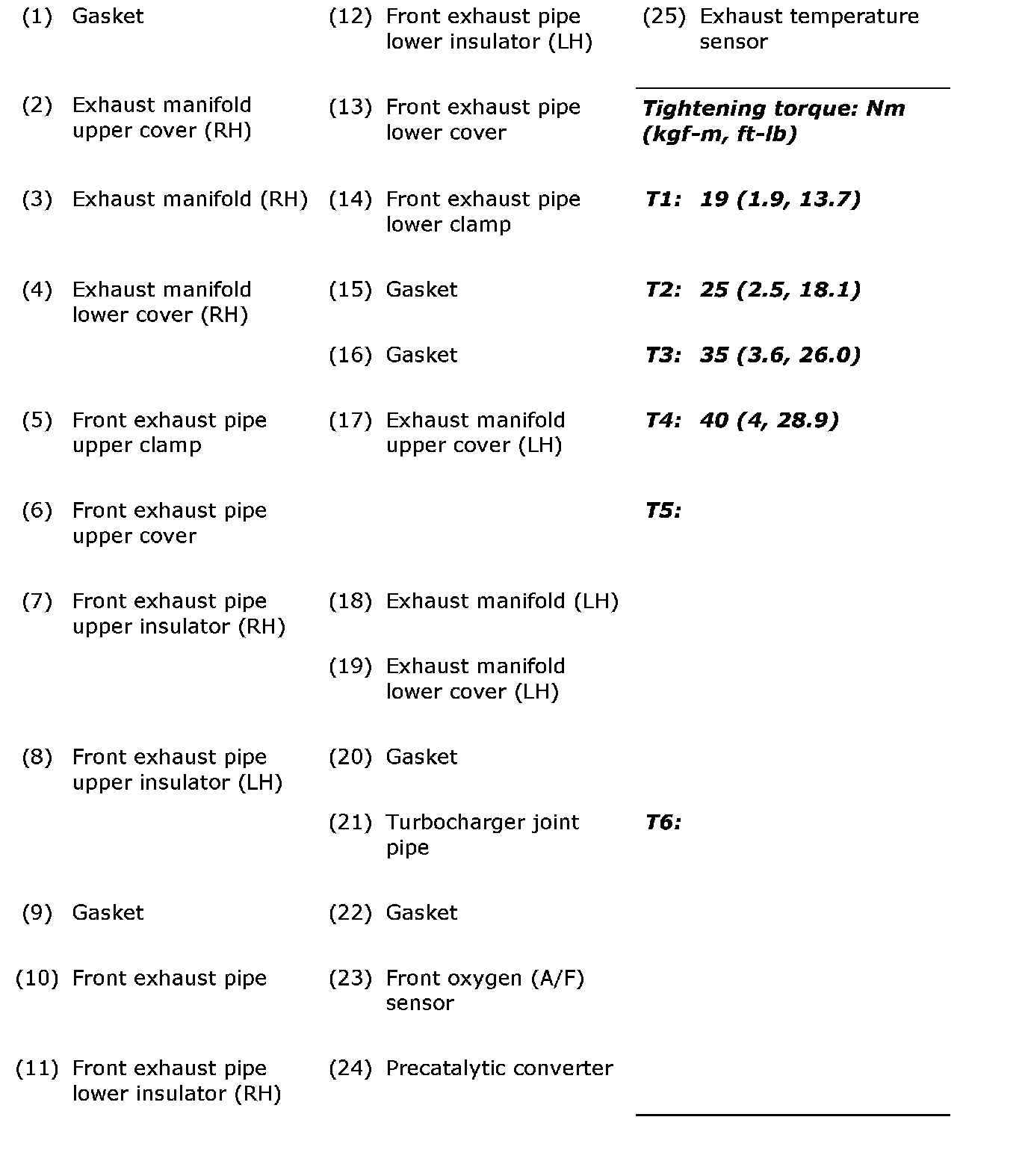

FRONT EXHAUST PIPE (Part 2):

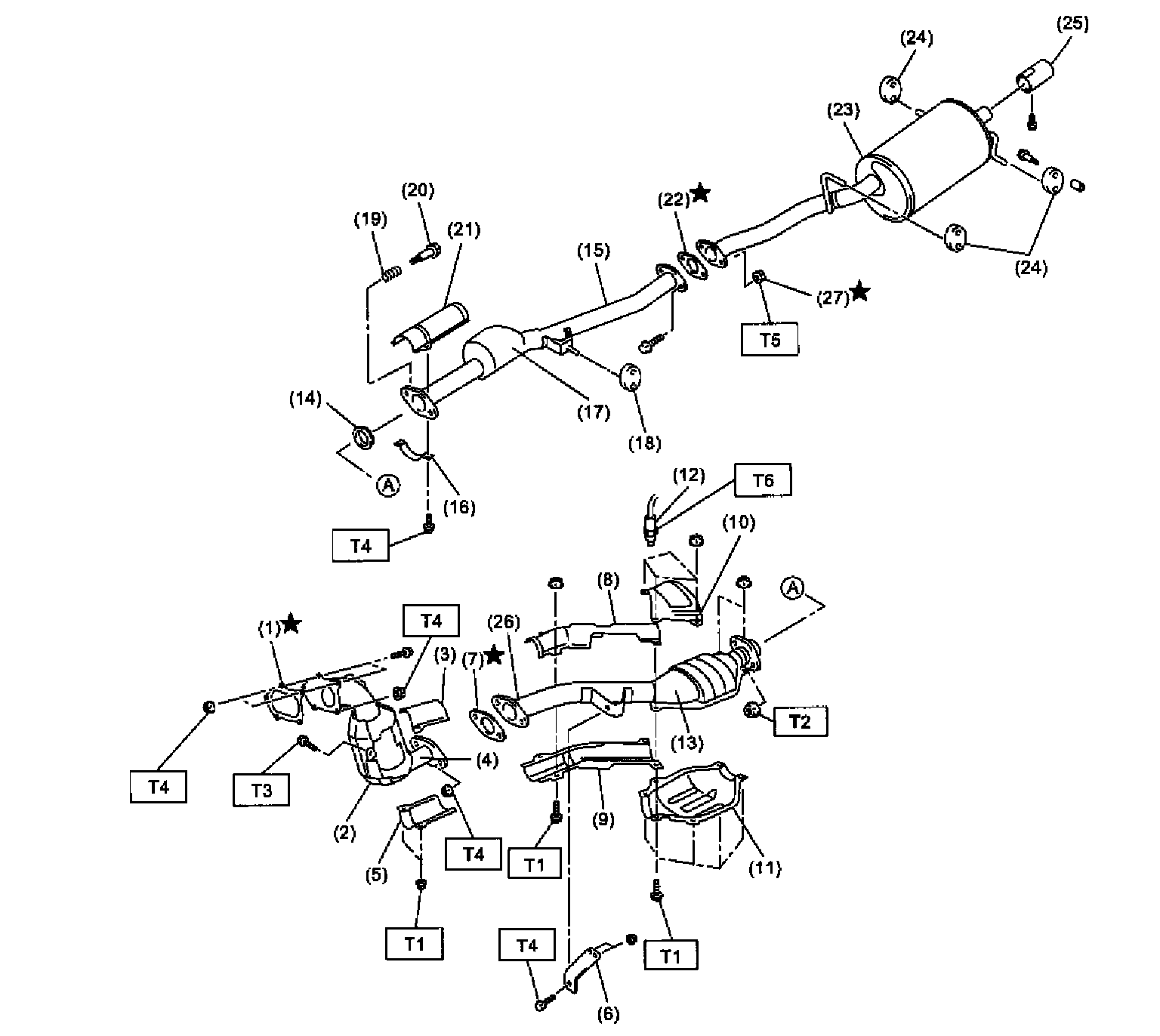

CENTER AND REAR EXHAUST PIPE, AND MUFFLER (Part 1):

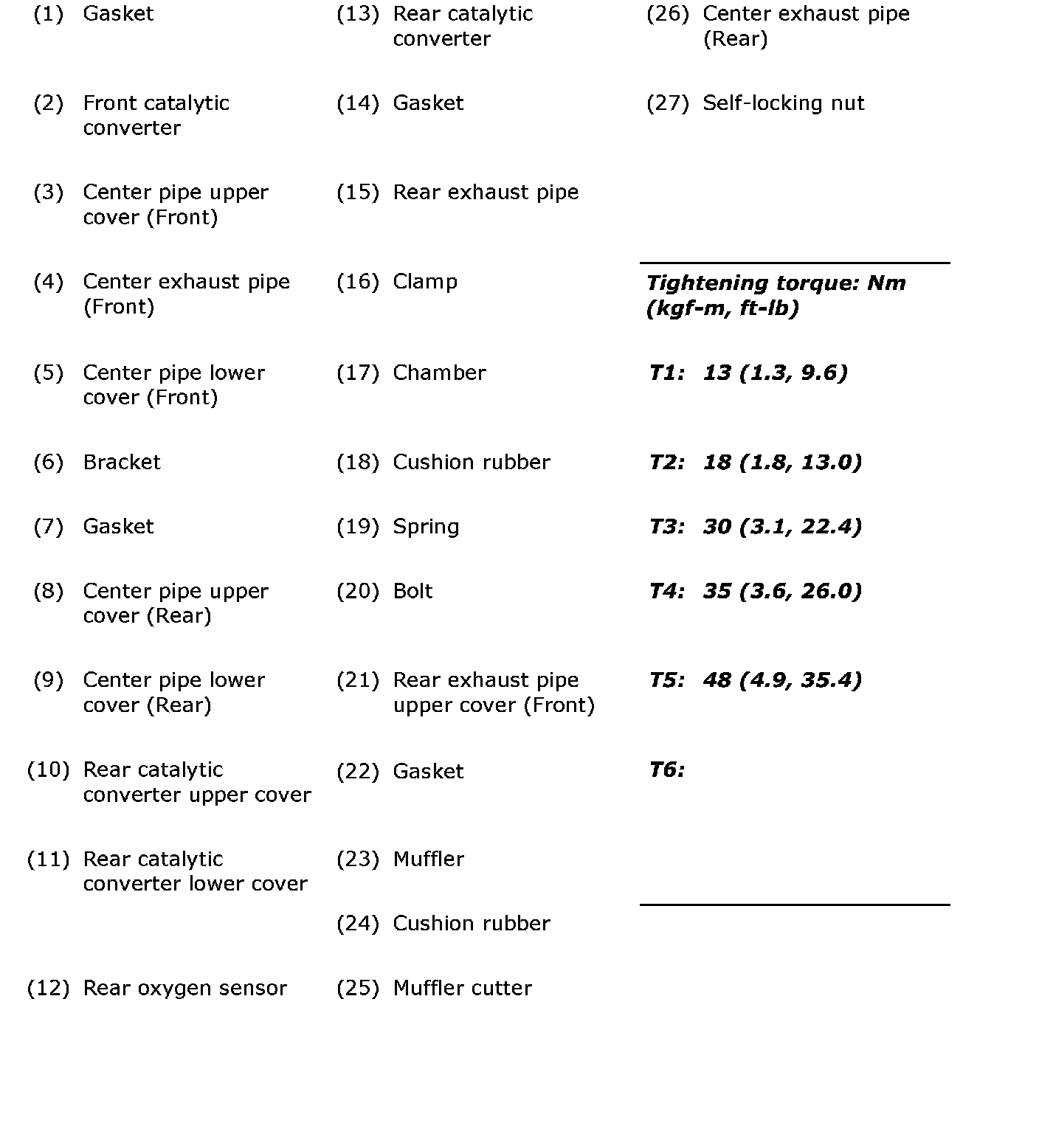

CENTER AND REAR EXHAUST PIPE, AND MUFFLER (Part 2):
