Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2005
>>
9-2X F4-2.0L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Heating and Air Conditioning
>>
Evaporator Case
Evaporator Case

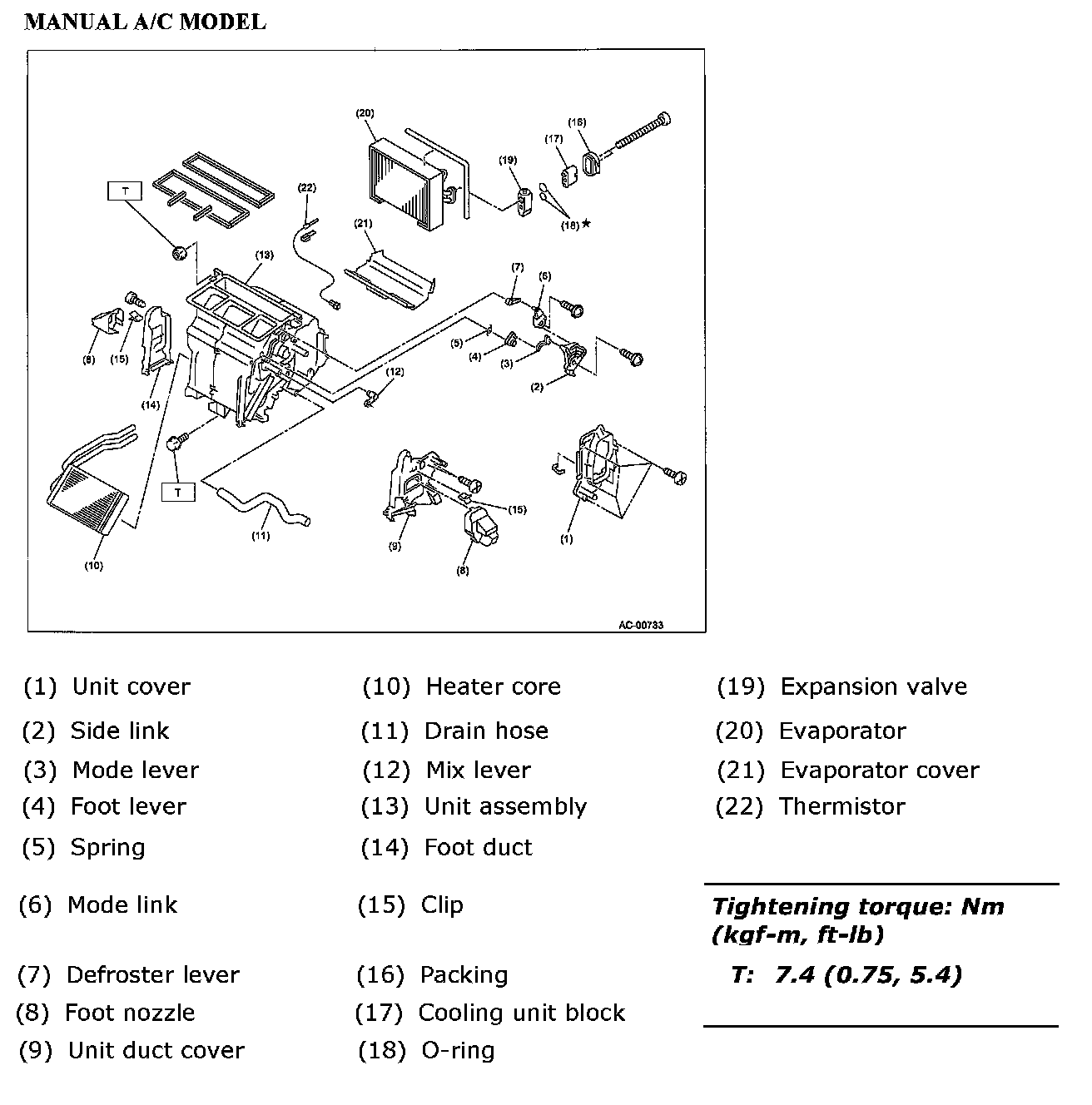

Heater Cooling Unit:

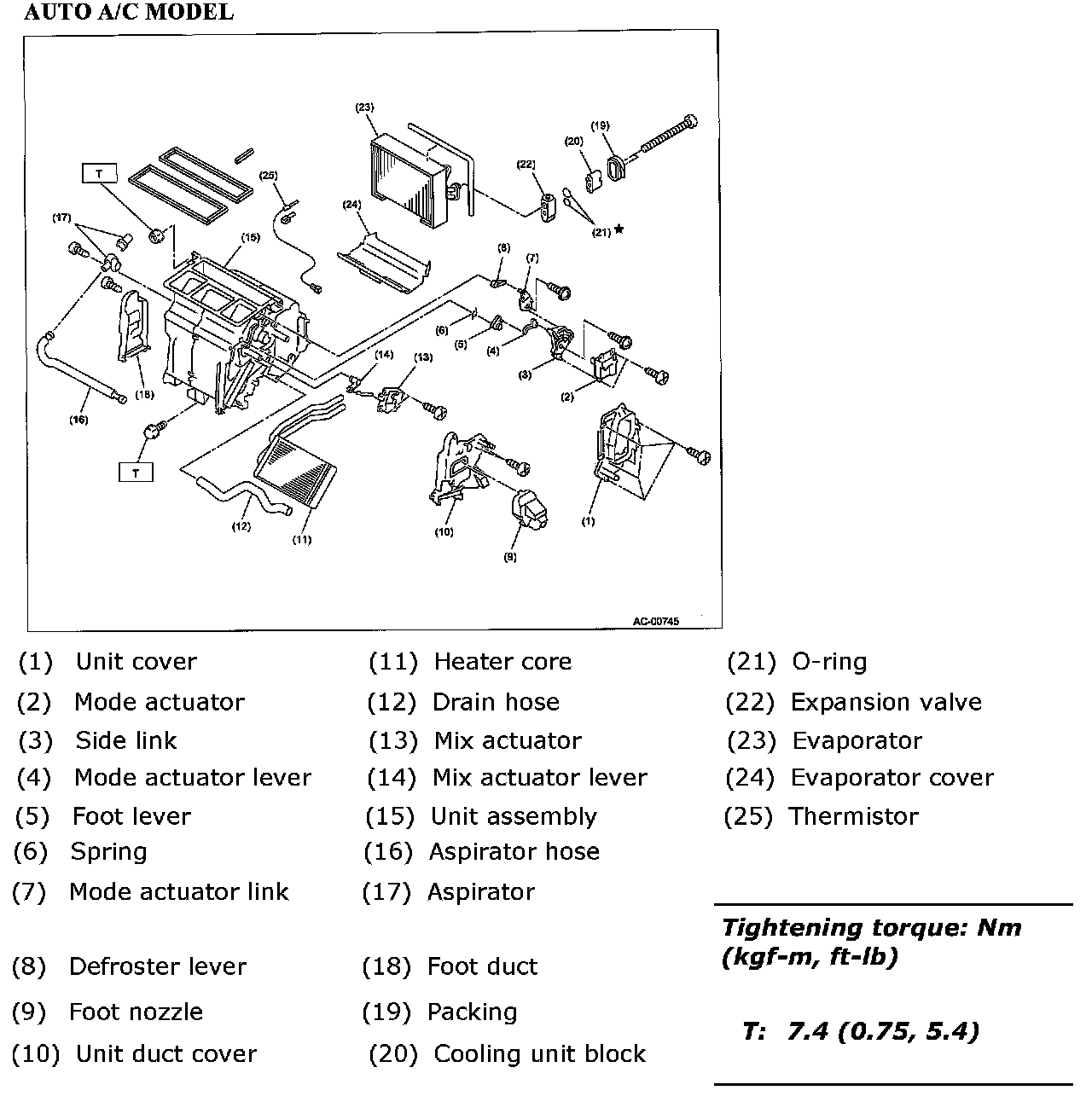

Heater Cooling Unit:
