Engine: Diagrams

Component

TIMING BELT:

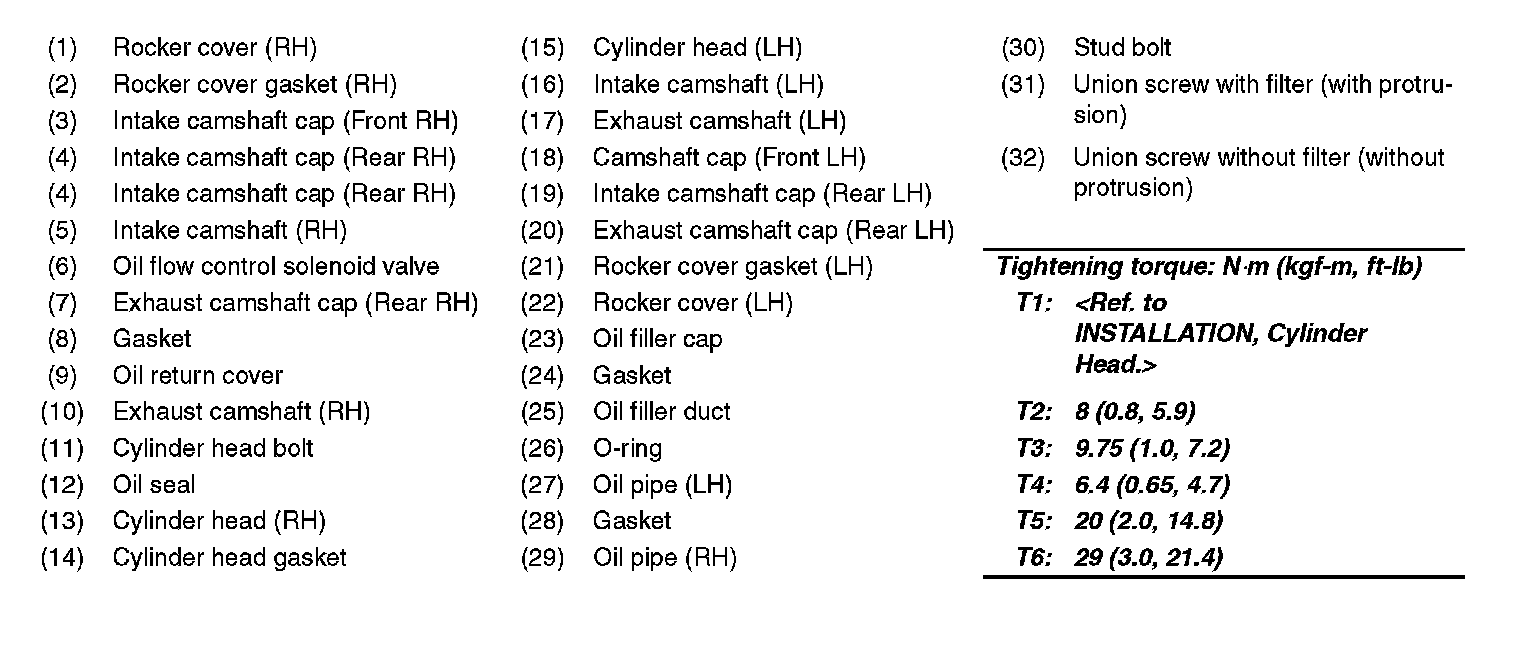

CYLINDER HEAD AND CAMSHAFT:




CYLINDER HEAD AND CAMSHAFT:




CYLINDER HEAD AND VALVE ASSEMBLY:




CYLINDER BLOCK:




CYLINDER BLOCK:

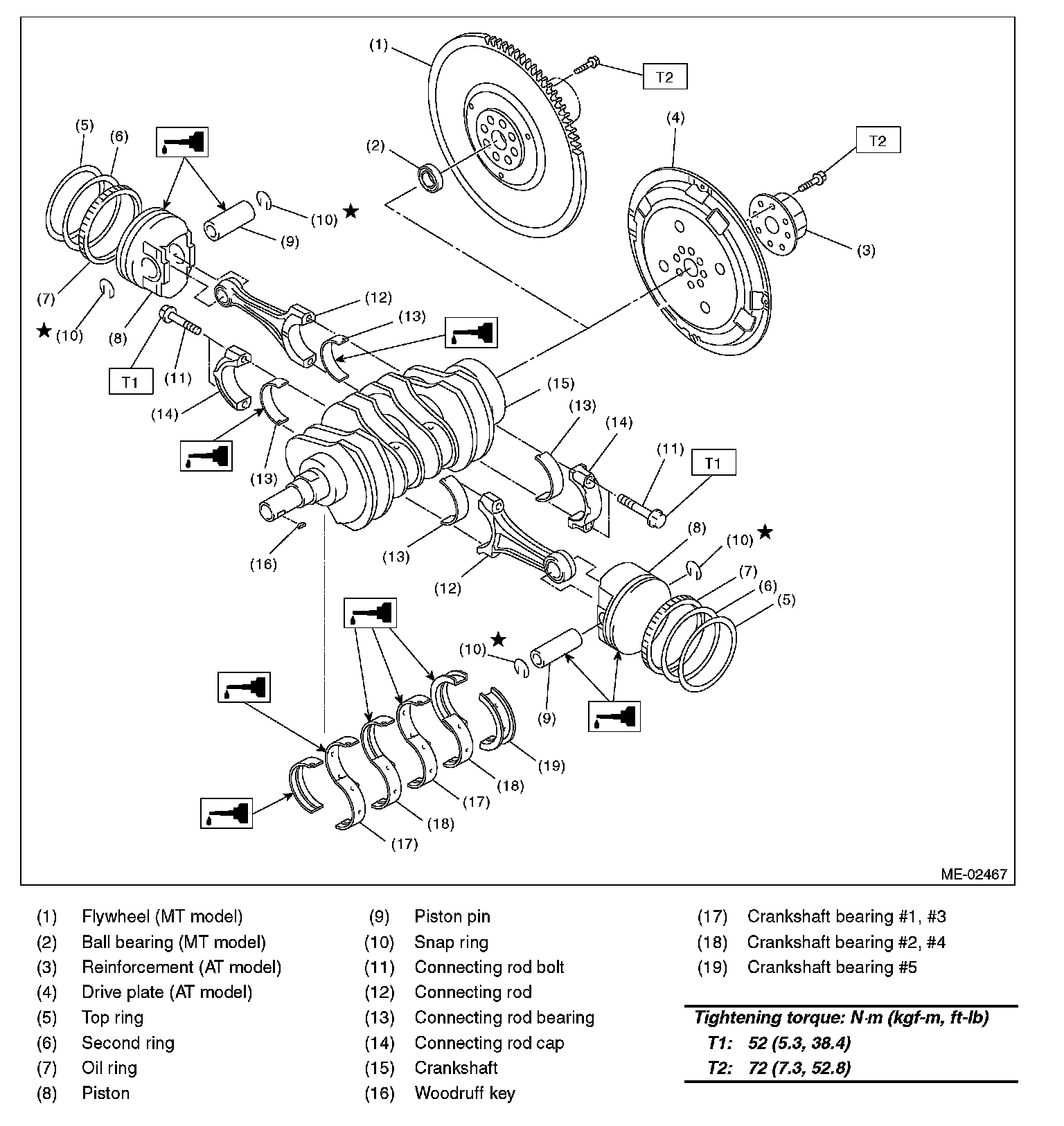

CRANKSHAFT AND PISTON:




ENGINE MOUNTING:
