Home >> Saab >> 2005 >> 9-2X F4-2.0L Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Without Scan Tool

Without Scan Tool

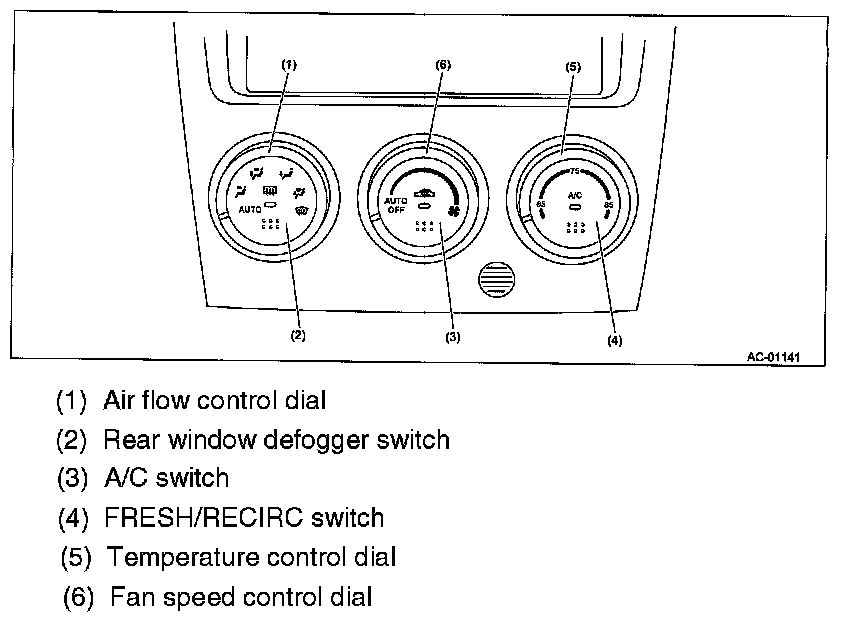

Step 1 - 4:

Step 5 - 7:

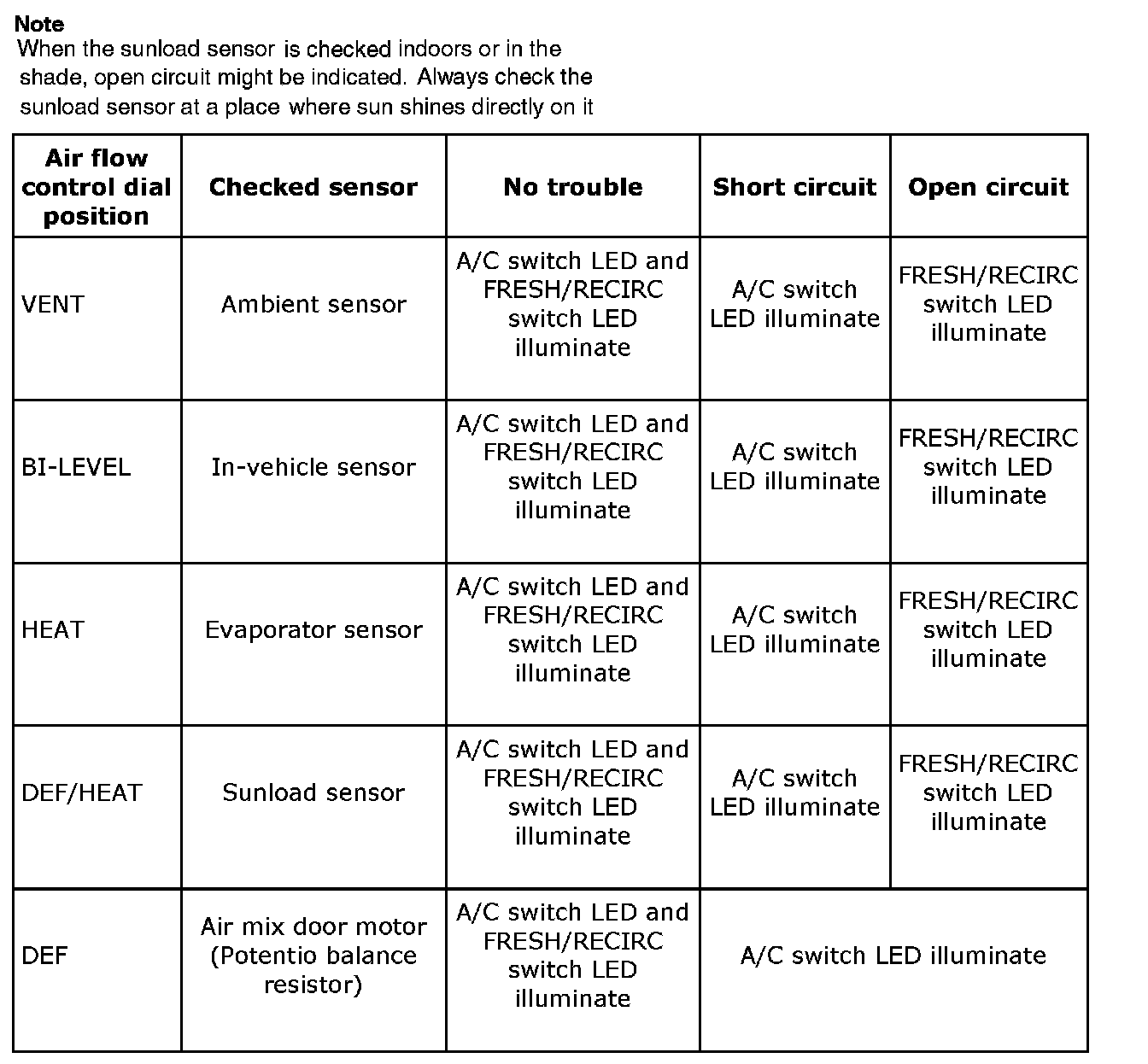

Sensor Check Table:

Operating Mode Table:
