Pressure Plate

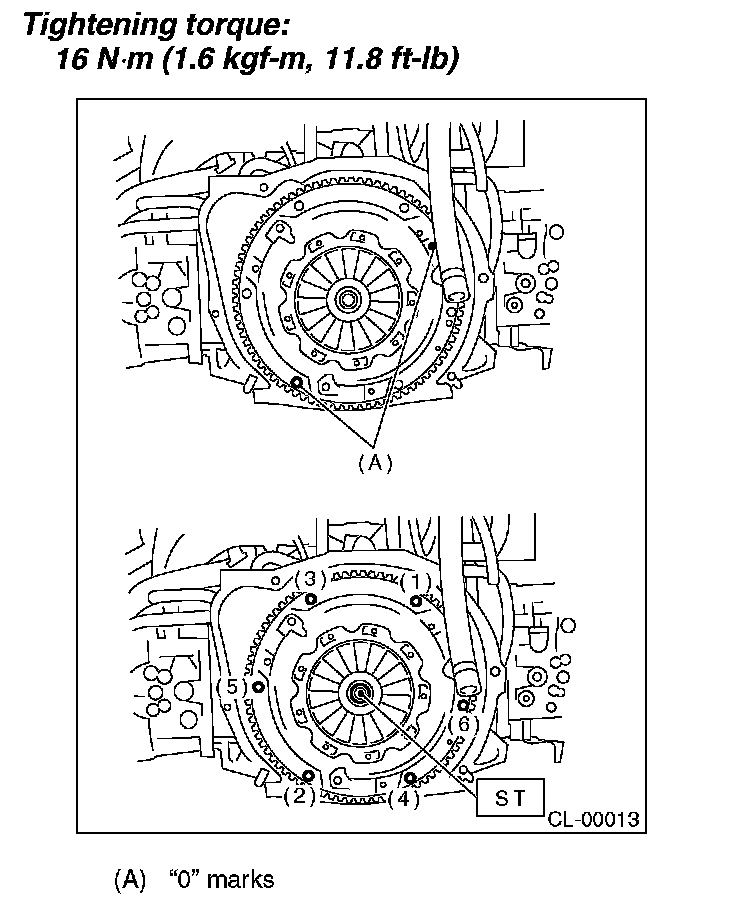

Torque SpecificationsTighten the clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque: 16 Nm (1.6 kgf-m, 11.8 ft. lbs.)
Tighten the clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque: 16 Nm (1.6 kgf-m, 11.8 ft. lbs.)
