Camshaft Bearing

Camshaft Bearing Cap Bolts

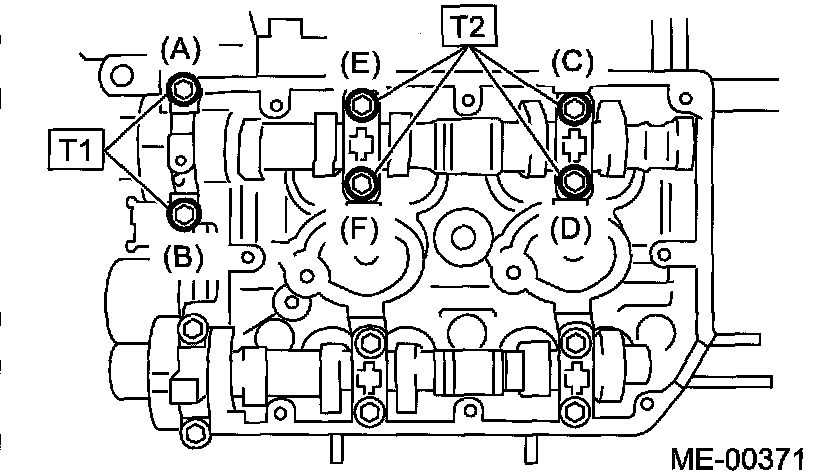

Similarly, tighten the cap on exhaust side. After tightening the cap, ensure the camshaft rotates only slightly while holding it at base circle.
Tightening torque:
T1: 10 Nm (1.0 kgf-m, 7.4 ft. lbs.)
T2: 20 Nm (2.0 kgf-m, 14.5 ft. lbs.)
