Automatic Transmission/Transaxle: Locations

Electrical Component Location
LOCATION

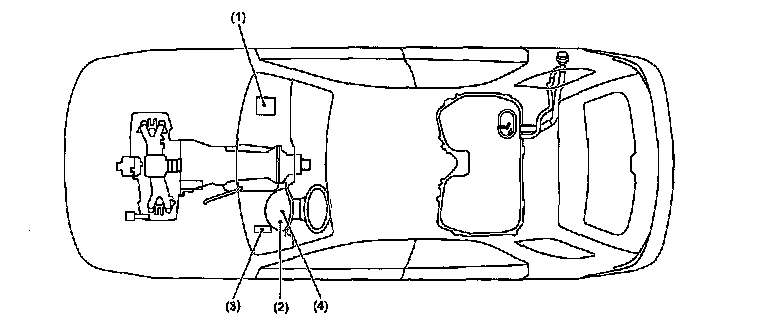

CONTROL MODULE

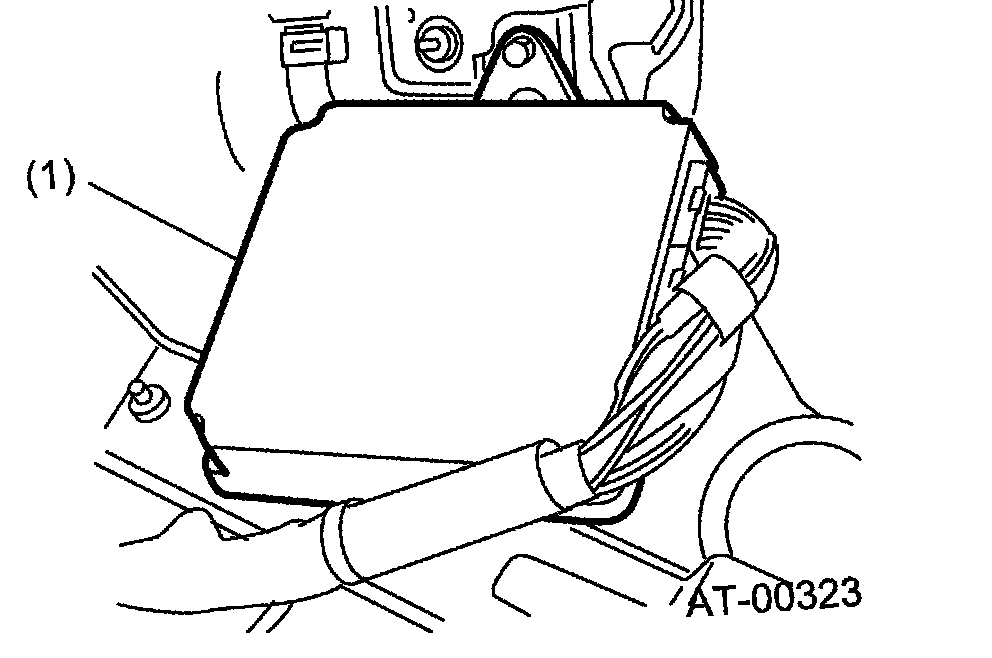

(1) Engine control module (ECM)





(2) AT OIL TEMP warning light (AT diagnostic indicator light)

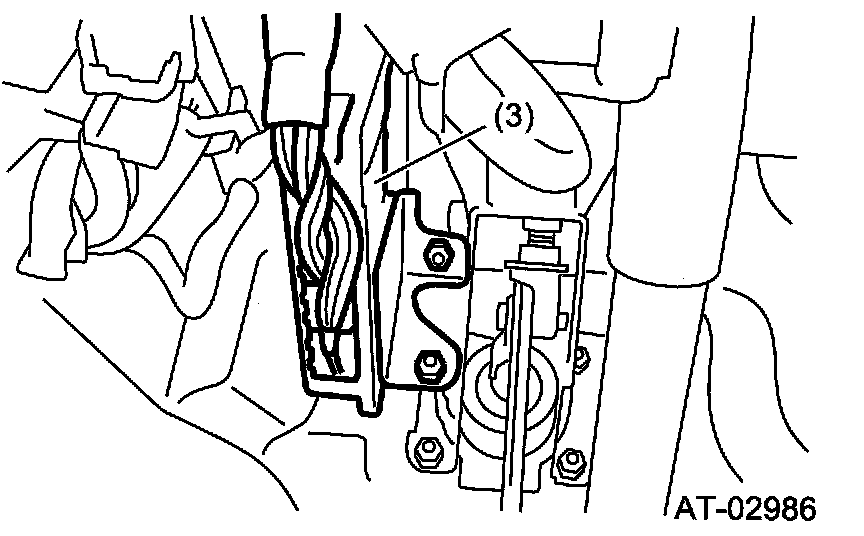

(3) Transmission control module (TCM)

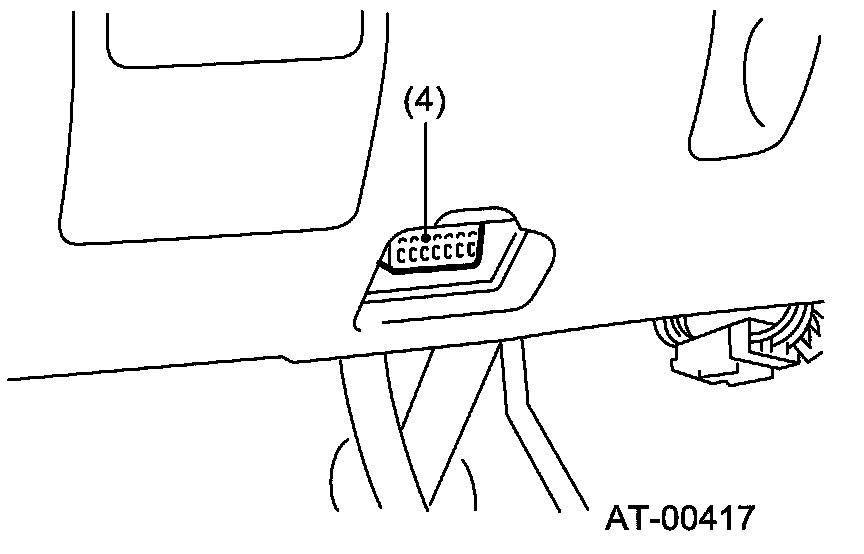

(4) Data link connector

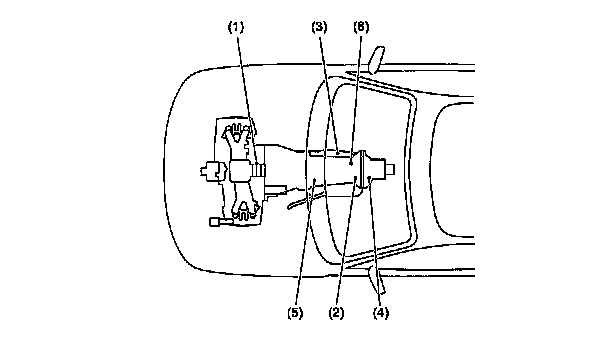

SENSOR





(1) Throttle position sensor

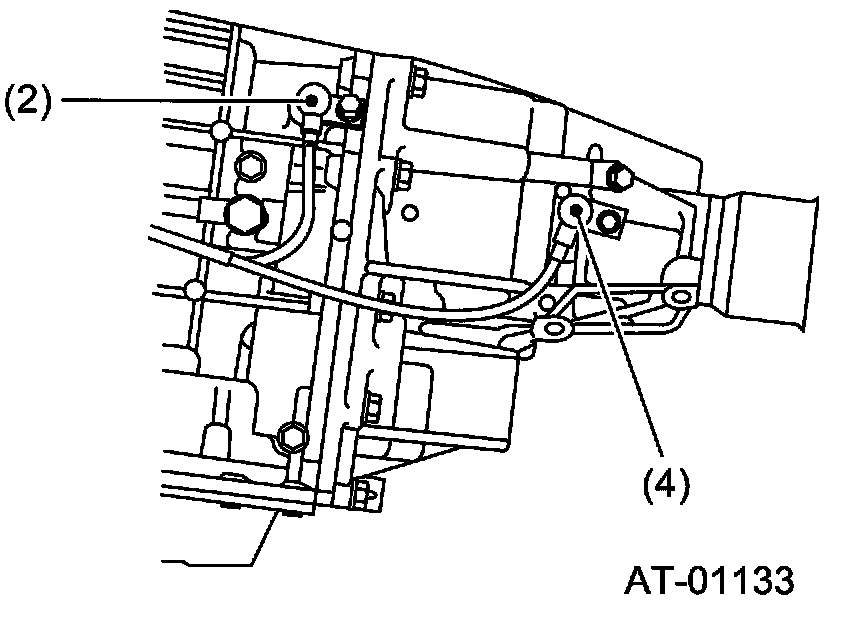

(2) Front vehicle speed sensor

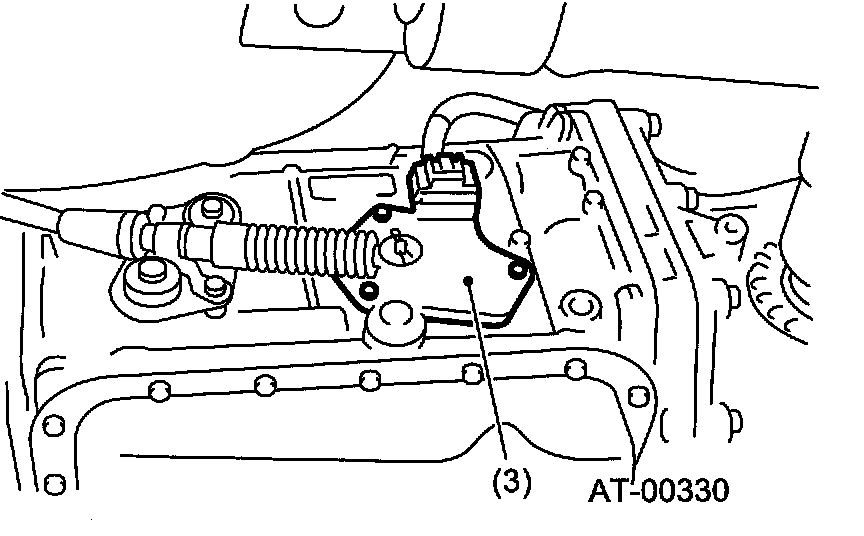

(3) Inhibitor switch





(4) Rear vehicle speed sensor

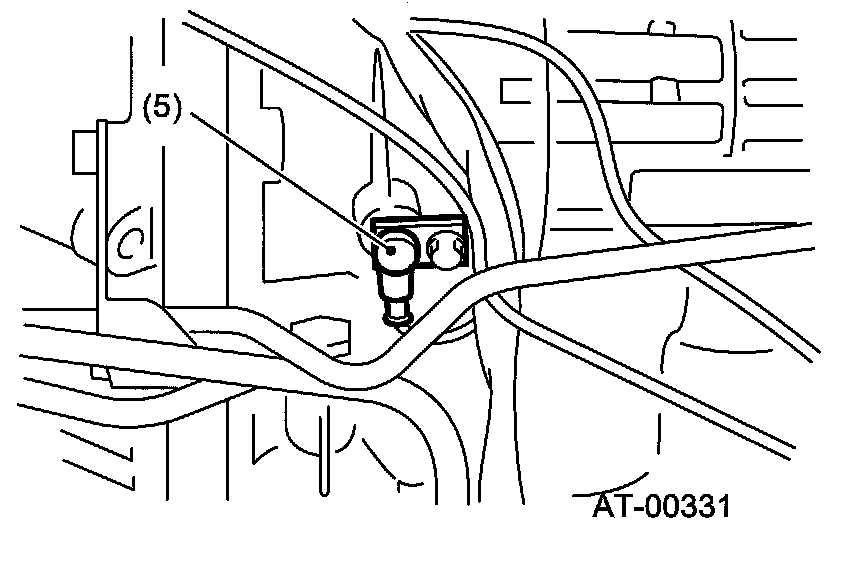

(5) Torque converter turbine speed sensor

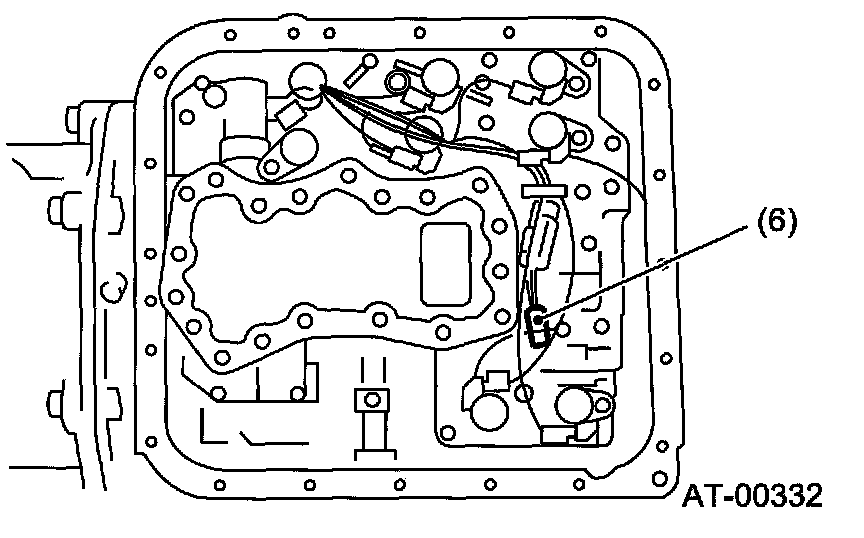

(6) ATF temperature sensor

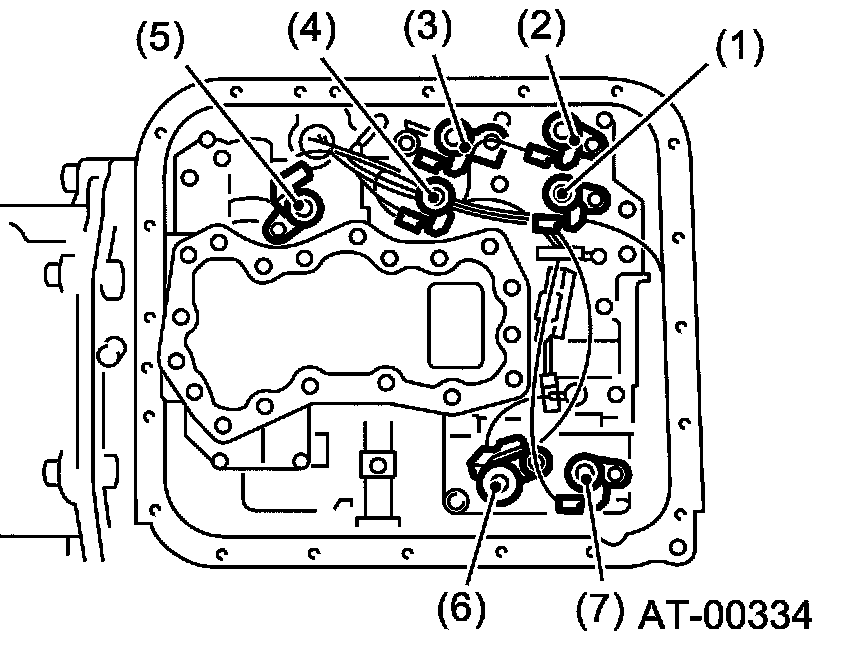

SOLENOID

(1) Solenoid 1
(2) Solenoid 2
(3) Line pressure duty solenoid
(4) Low clutch timing solenoid
(5) Lock-up duty solenoid
(6) 2-4 brake duty solenoid
(7) 2-4 brake timing solenoid

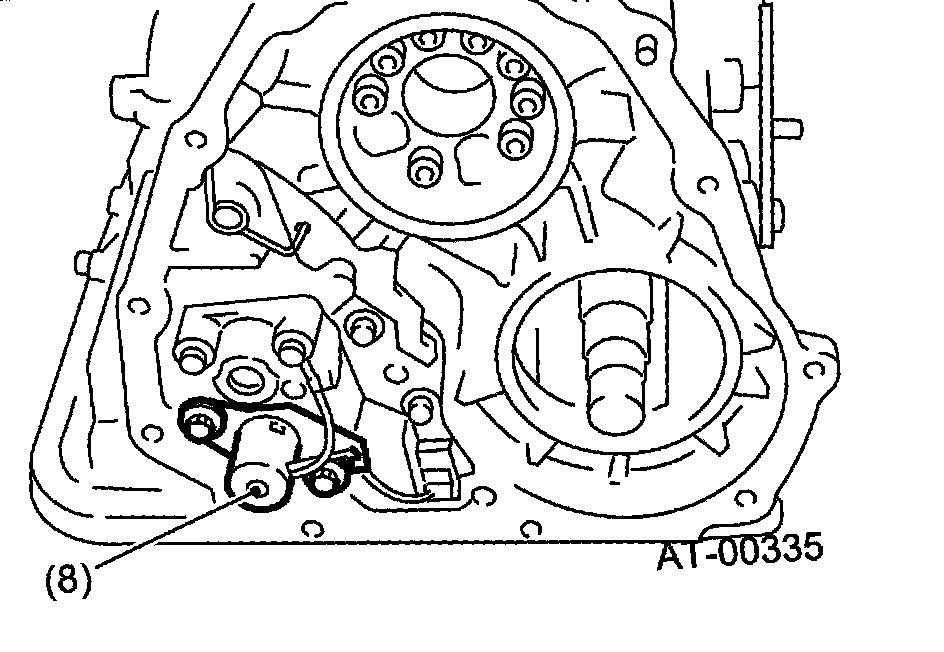

(8) Transfer duty solenoid
