Flywheel: Service and Repair

Flywheel

REMOVAL

Remove the transmission assembly.
Remove the clutch cover and clutch disc.
Using the ST, remove the flywheel.
ST 32005107 CRANKSHAFT STOPPER





(A) Flywheel

INSTALLATION

Install the flywheel and ST.
ST 32005107 CRANKSHAFT STOPPER





Tighten the flywheel attaching bolts to the specified torque.

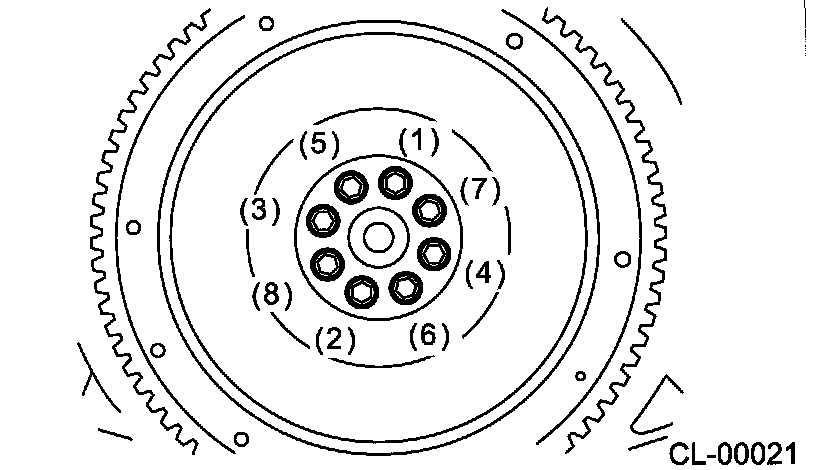

Note: Tighten the flywheel installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross fashion.

Tightening torque: 72 Nm (7.3 kgf-m, 52.8 ft. lbs.)





Install the clutch disc and cover.
Install the transmission assembly.

INSPECTION

Important: Since this bearing is grease sealed and is of a nonlubrication type, do not wash with gasoline or any solvent.

Damage on sliding surface of facing and ring gear
If defective, replace the flywheel.





(A) Flywheel
(B) Ring gear

Smoothness of rotation
Rotate the ball bearing applying pressure in thrust direction.
If noise or excessive play is noted, replace the flywheel.
