Fuse Block
>>
Fuse Block - Rear C2

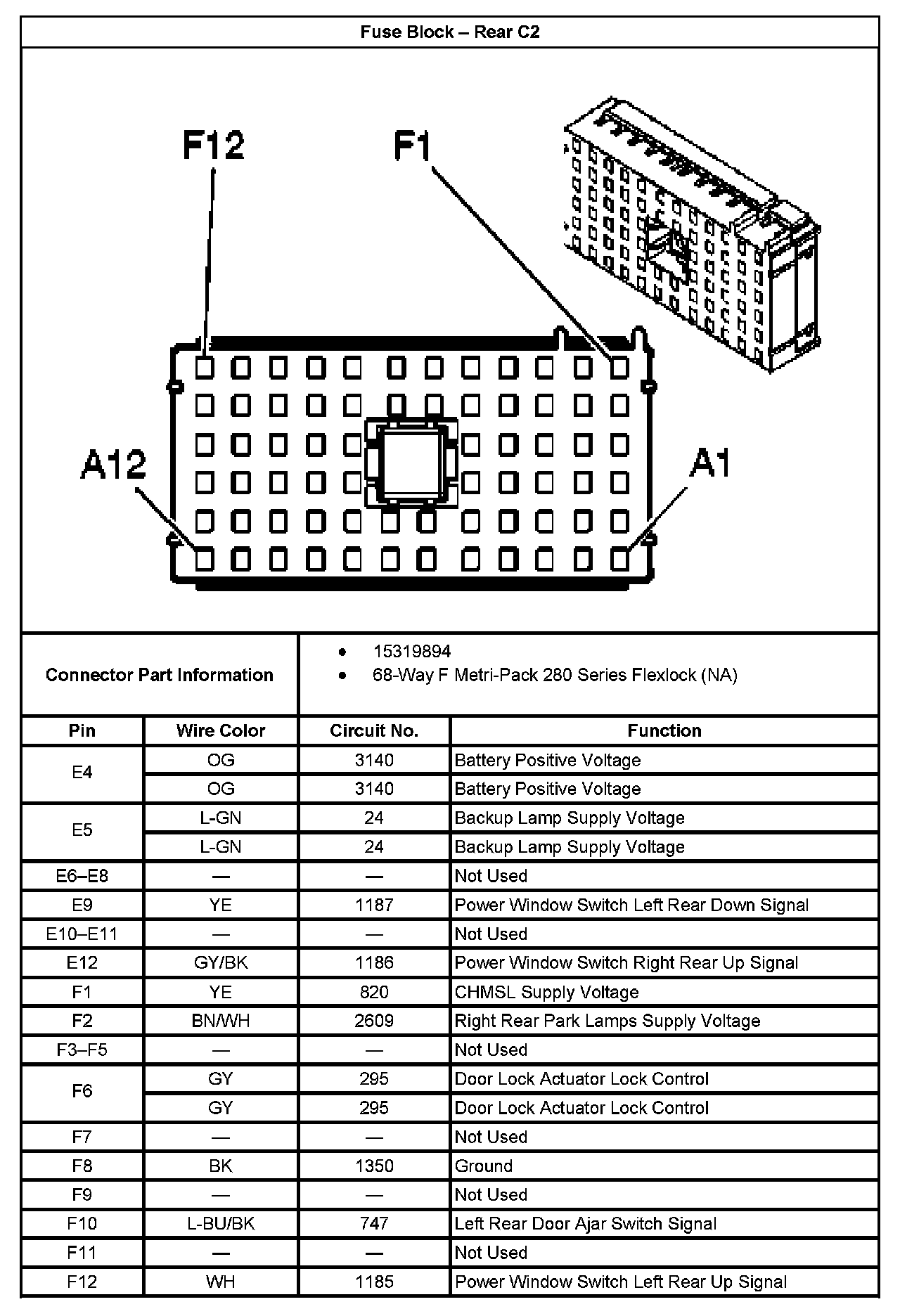

Fuse Block - Rear C2
Fuse Block - Rear C2 Part 1:
Fuse Block - Rear C2 Part 2:
Fuse Block - Rear C2 Part 3:
