DTC 71
DTC 71 DRIVER'S AIRBAG FAILUREDTC DETECTING CONDITION:
^ Airbag main harness circuit is open, shorted or shorted to ground.
^ Airbag module harness (Driver) circuit is open, shorted or shorted to ground.
^ Roll connector circuit is open, shorted or shorted to ground.
^ Driver's airbag module is faulty.
^ Airbag control module is faulty.
CAUTION:
^ Before diagnosing the airbag system, be sure to turn the ignition switch OFF, disconnect the ground cable from battery, and wait more than 20 seconds before starting to work.
^ Before replacing the airbag module, seat belt pretensioner, roll connector, control module and sensor, reconnect each part and confirm that the warning light operates properly.
^ When inspecting the airbag main harness, disconnect the driver s airbag module and passenger s airbag module connectors, and seat belt pretensioner for safety reasons.
NOTE: Prior to work, prepare two airbag resistors (98299PA040).

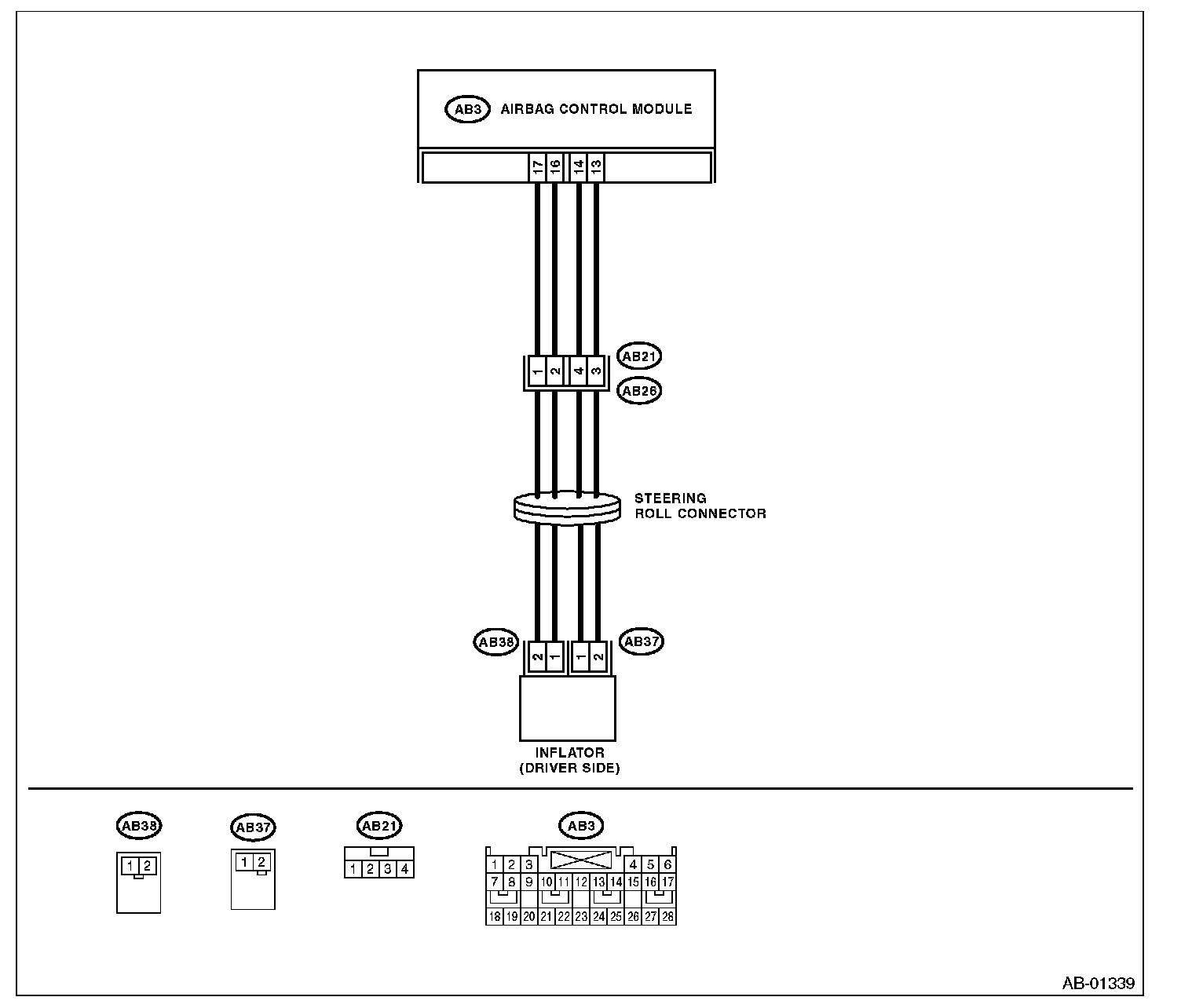

Wiring Diagram:
Step 1 - 4:

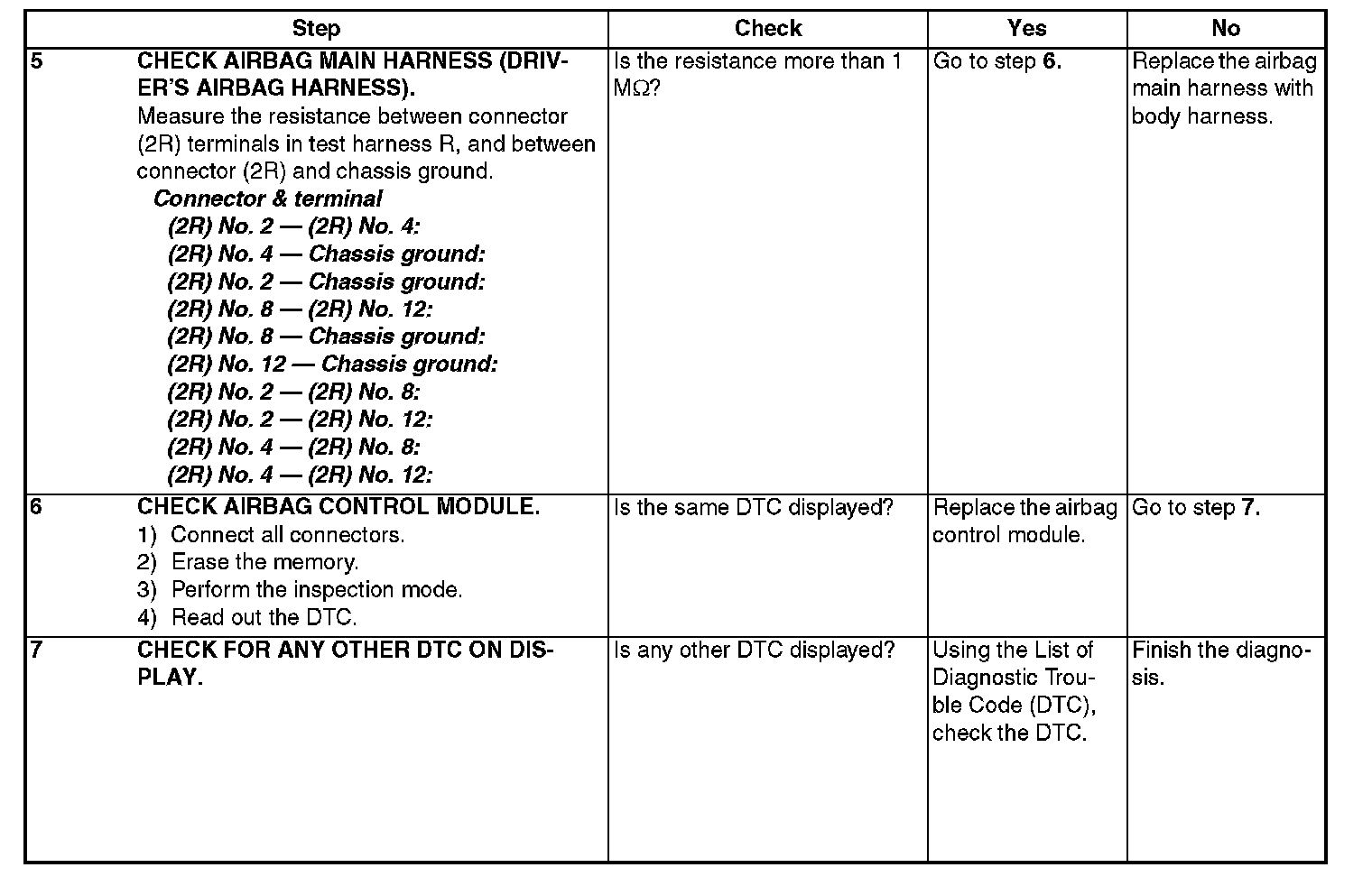

Step 5 - 7:
