P2016
DTC P2016 INTAKE MANIFOLD RUNNER POSITION SENSOR / SWITCH CIRCUIT LOW (BANK 1)DTC DETECTING CONDITION:
^ Immediately at fault recognition
TROUBLE SYMPTOM:
^ Erroneous idling
^ Engine stalls.
^ Poor driving performance
CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode and Inspection Mode.

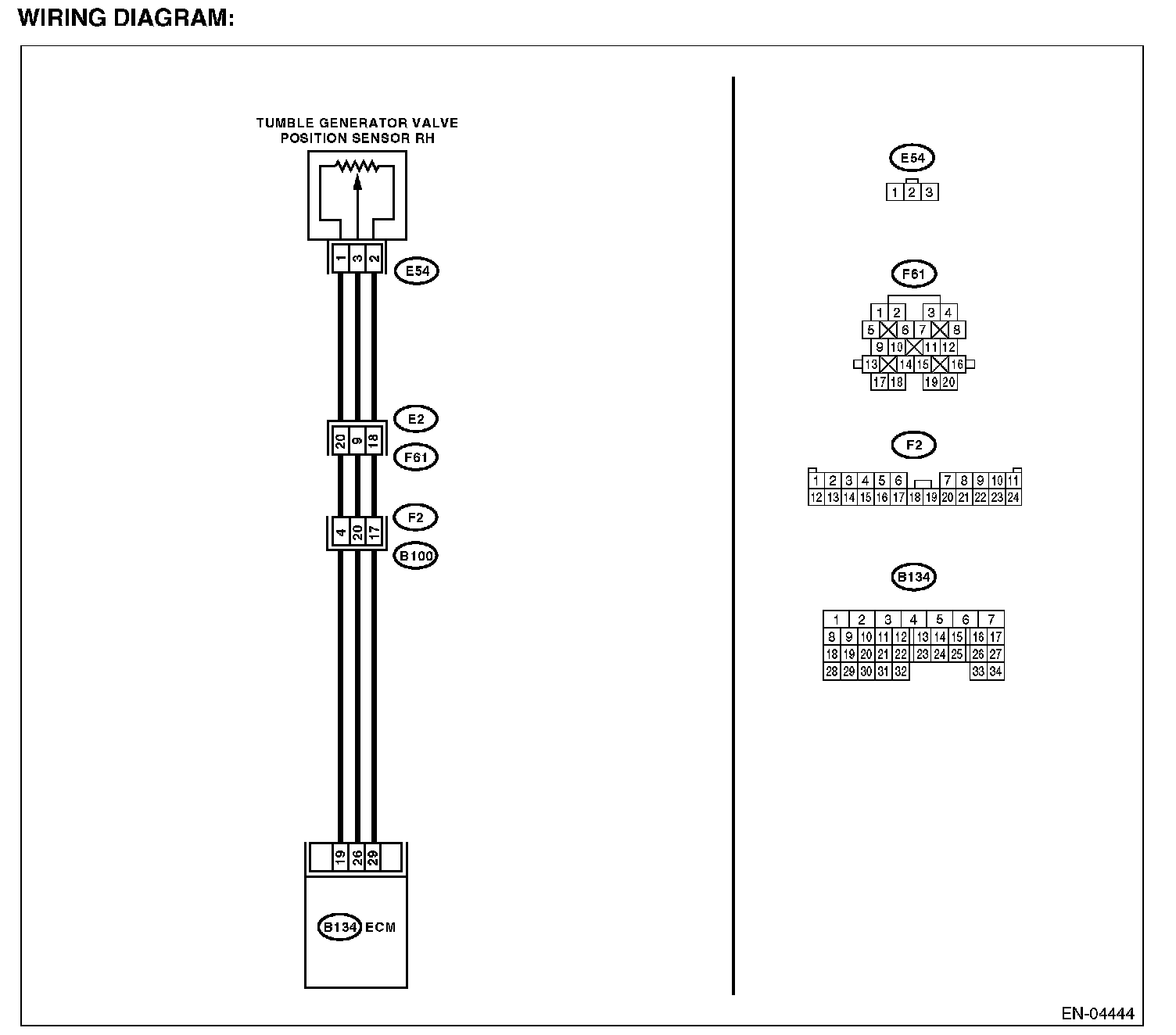

Wiring Diagram:
Step 1 - 5:

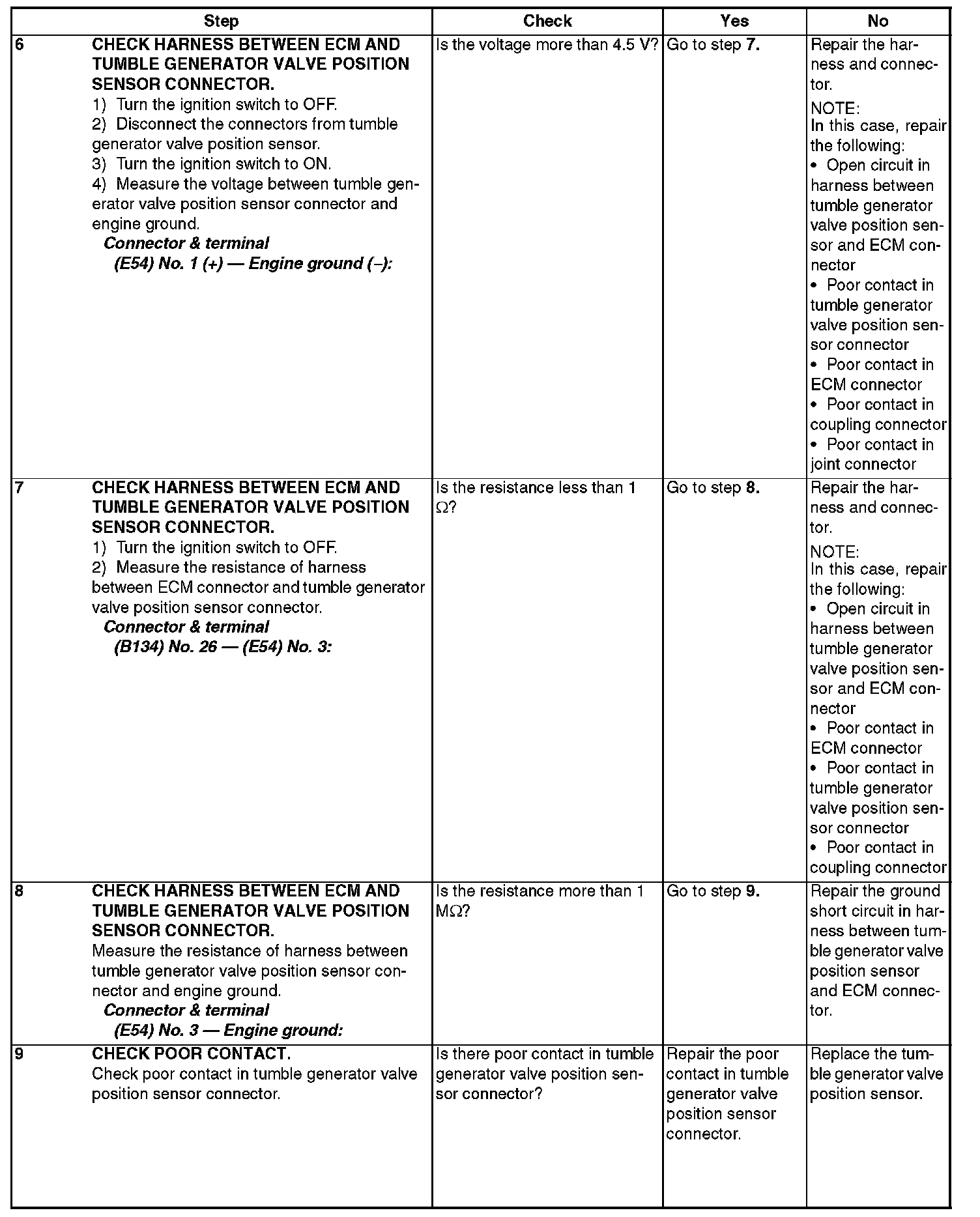

Step 6 - 9:
