Parking Brake System: Adjustments

ADJUSTMENT

^ For rear disc brake, adjust the parking brake after bleeding air.
^ Remove the rear cover (rubber) installed at back plate.

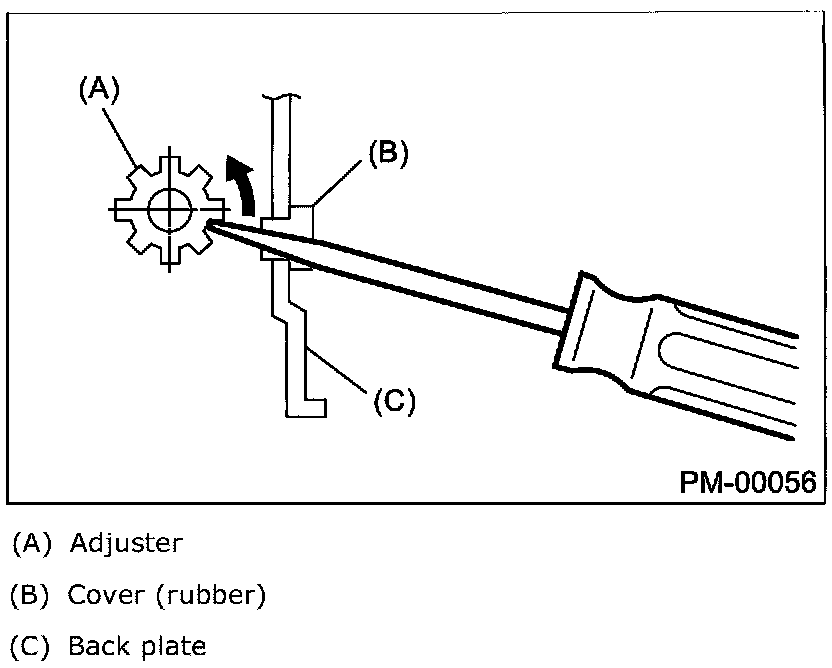

^ Turn the adjuster toward arrow mark (upward) until it is locked slightly, by using a flat tip screwdriver as shown in illustration.
^ Turn back (downward) the adjuster 3 to 4 notches.
^ Install the cover (rubber) at original position correctly.
