Saab
>>
2006
>>
9-2X F4-2.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
B30-B427 & AB1-AB21
B30-B427 & AB1-AB21

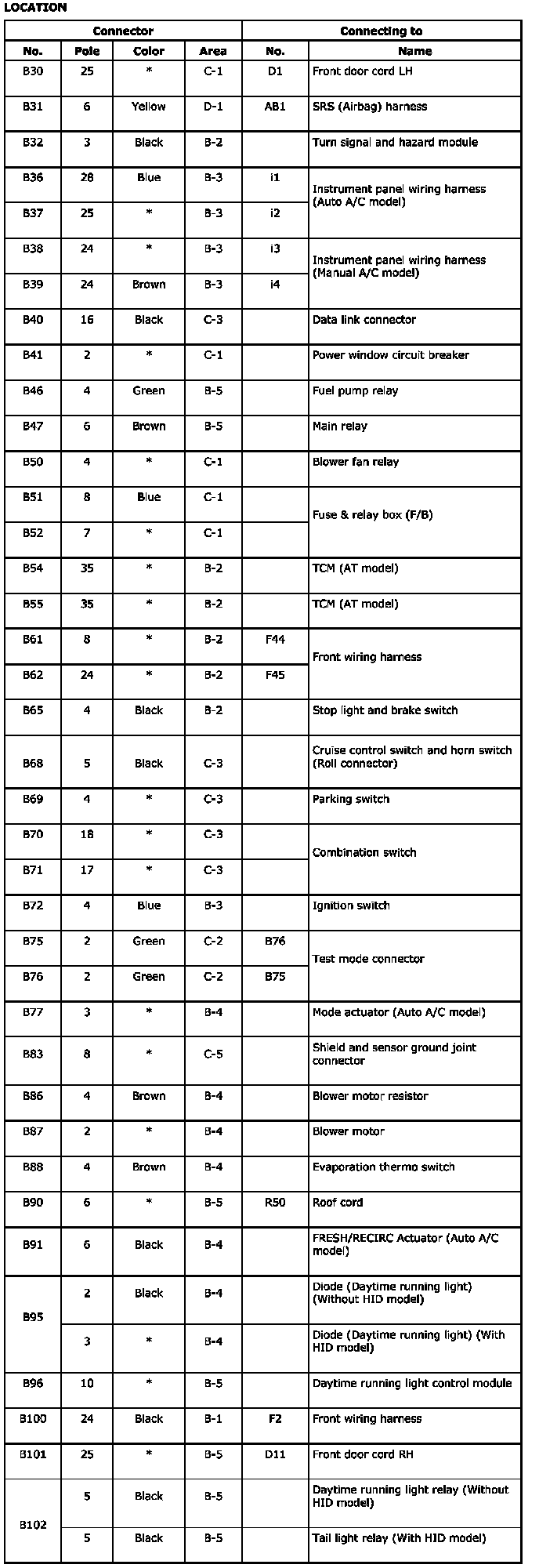

B30-B102:
B103-B256:

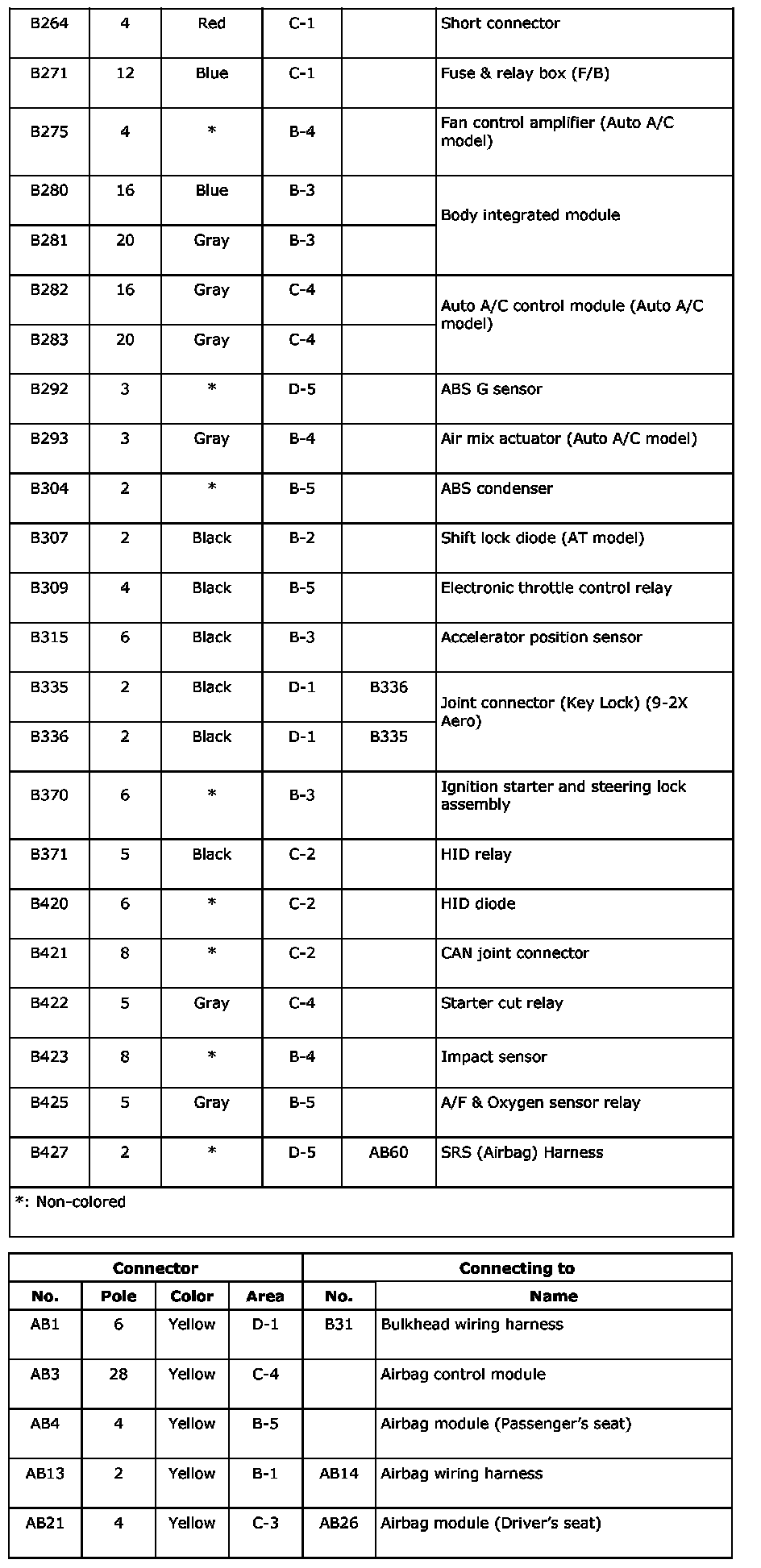

B264-B427, AB1-AB21:
Area View:
