Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2006
>>
9-2X F4-2.5L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
R16-R141 & D33-D113
R16-R141 & D33-D113

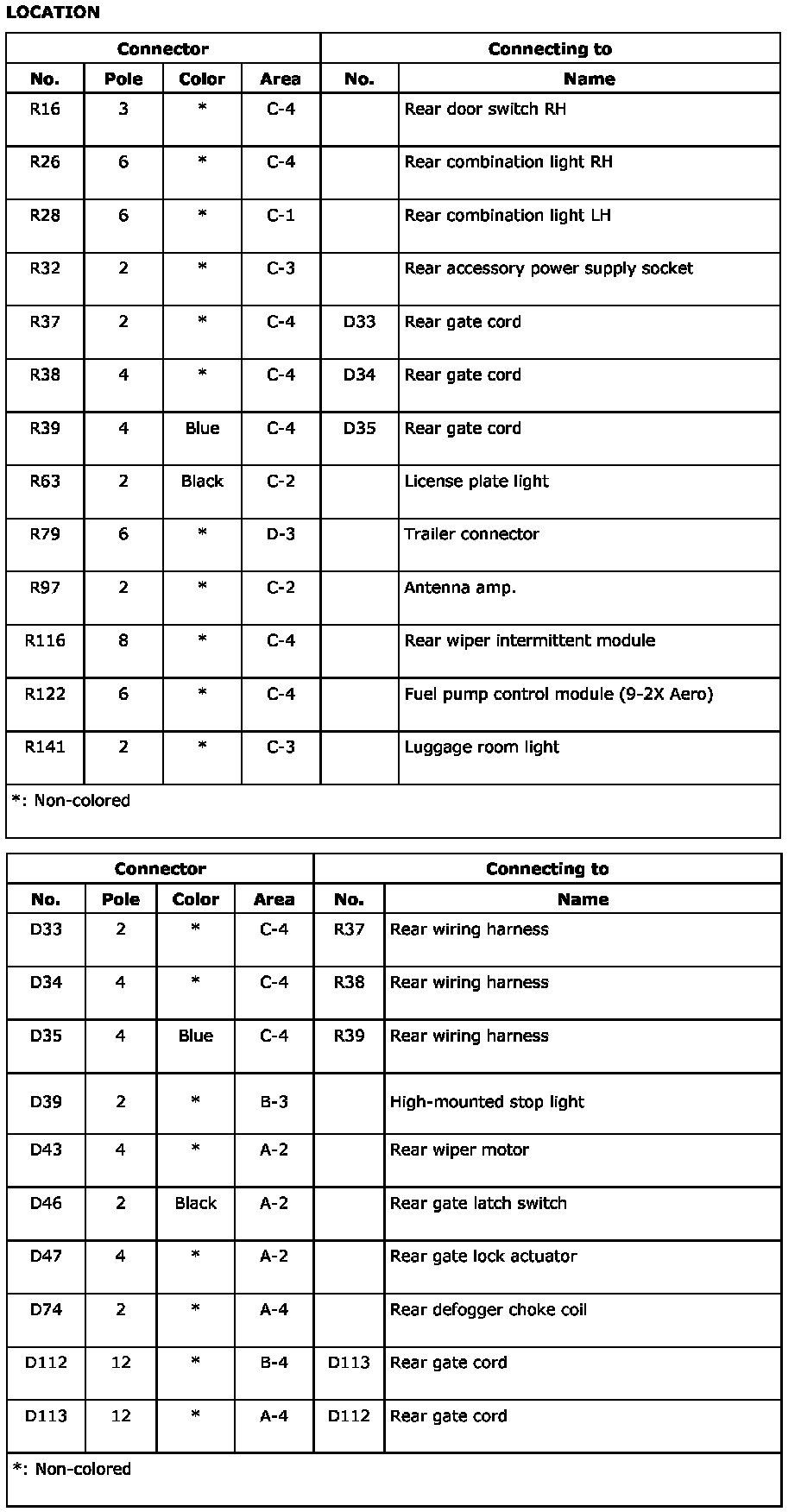

R16-R141, D33-D113:

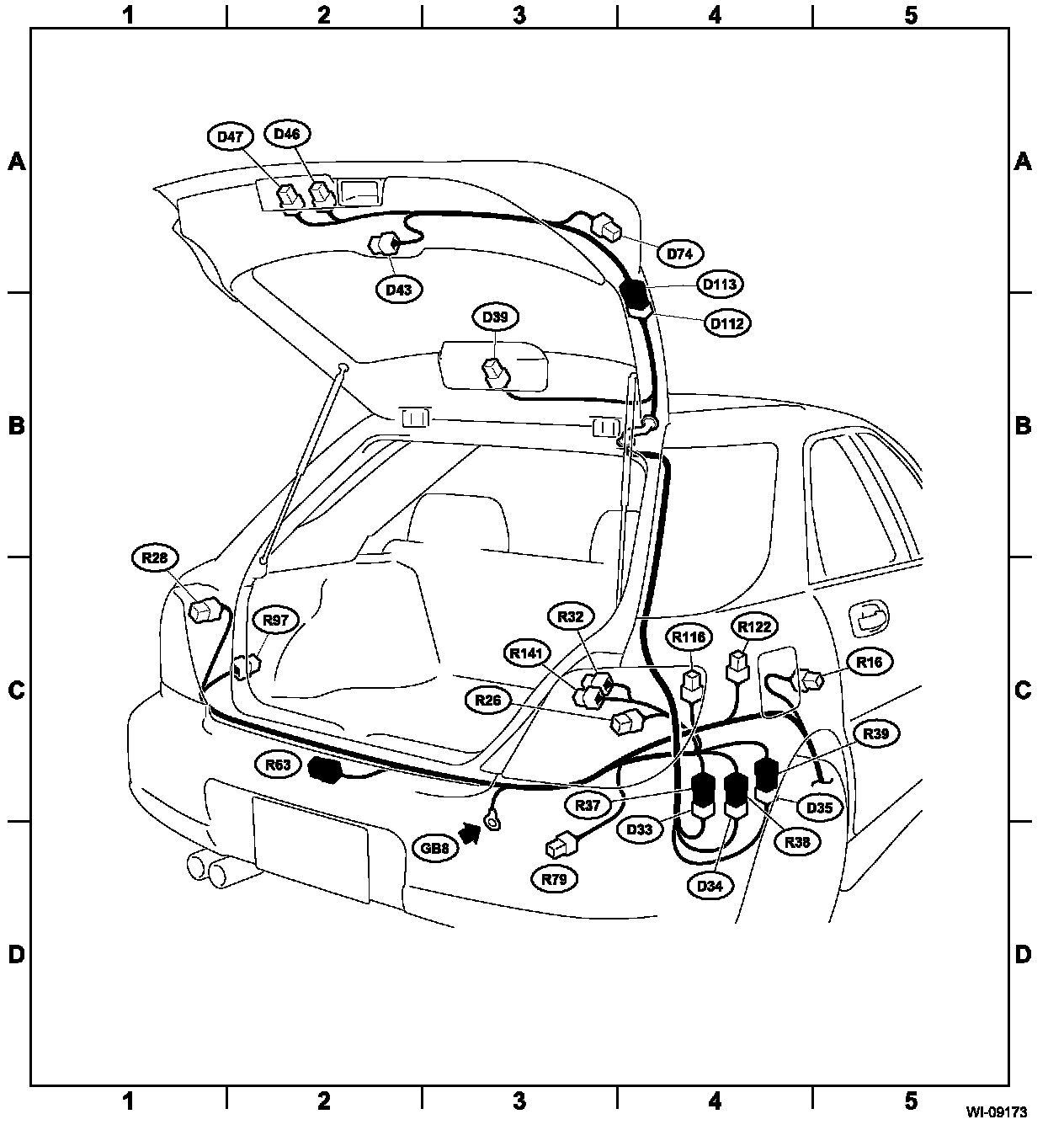

Area View:
