Ambient Temperature Sensor / Switch HVAC: Testing and Inspection



Ambient Sensor

Trouble Symptom:
Fan speed is not switched when the fan speed control dial is in AUTO position.

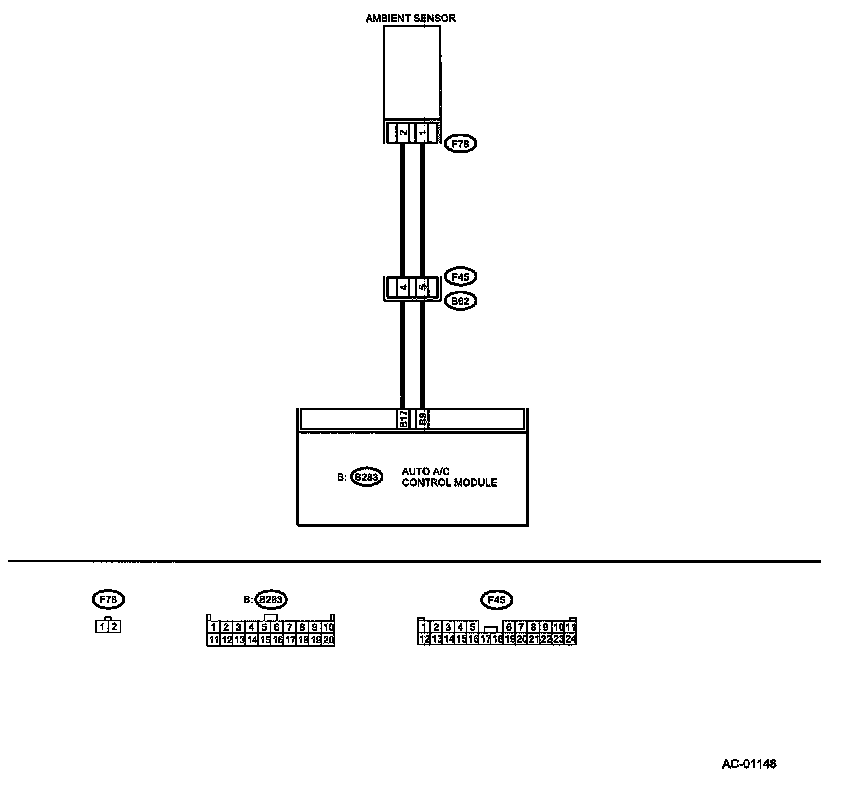

Wiring Diagram:

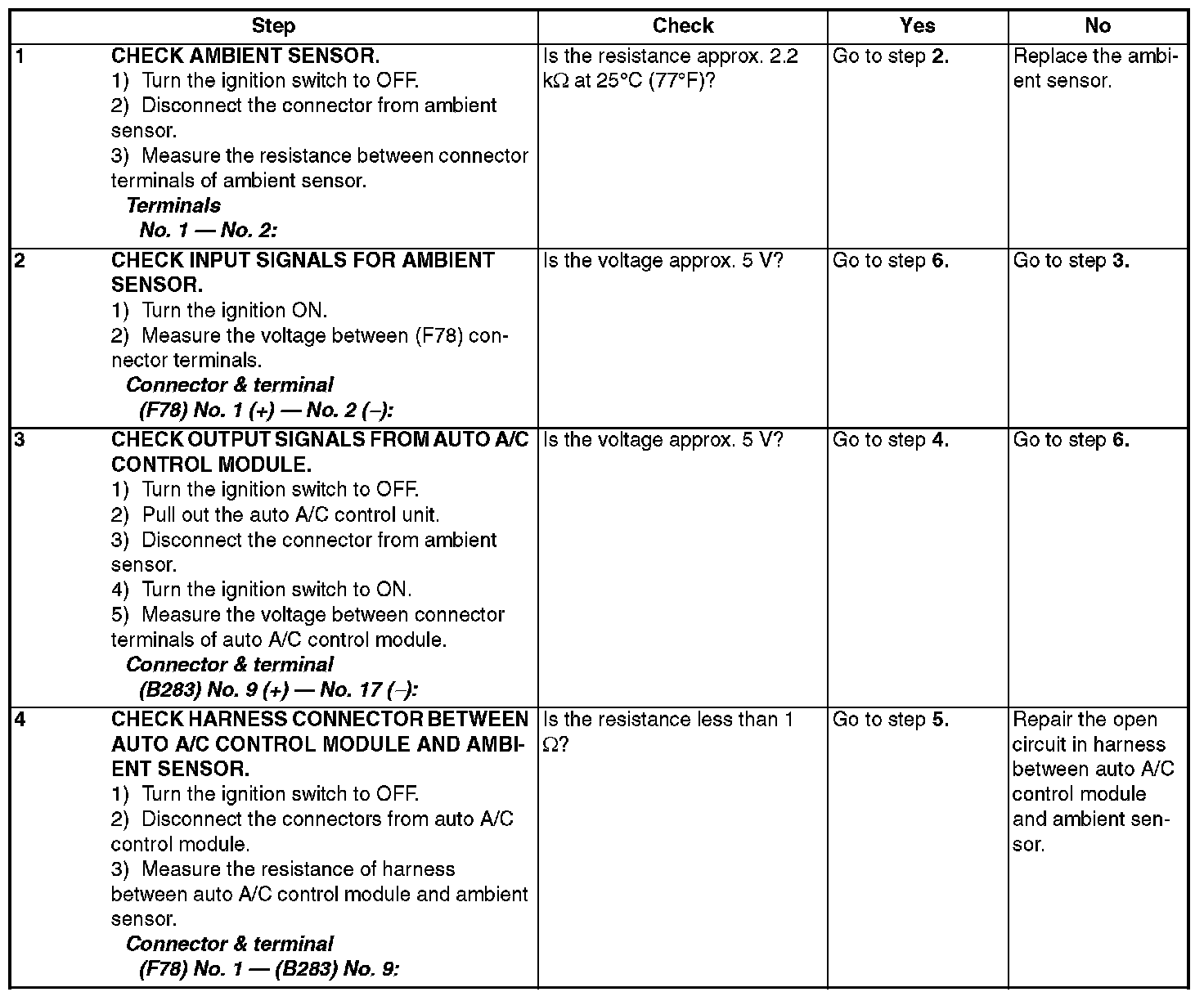

Step 1 - 4:
