Heater Core: Service and Repair

Heater Core

Removal
Remove the heater and cooling unit.

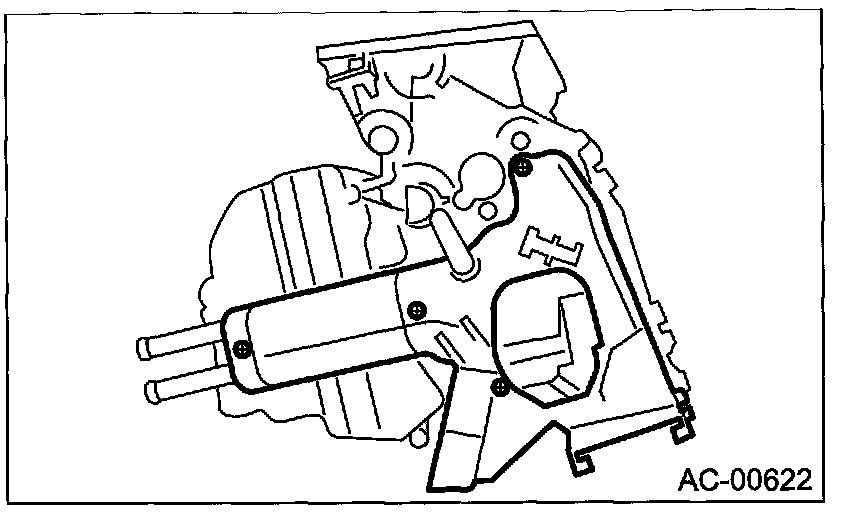

Loosen the screws to remove the heater core cover.

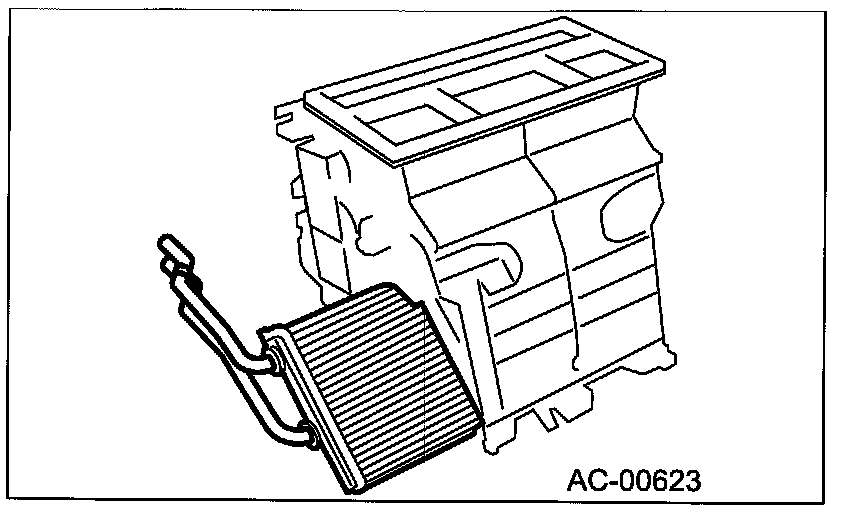

Remove the heater core.







Installation
Install in the reverse order of removal.
