Steering Wheel Contact Unit, Airbag (336A)



Location: integrated in the steering wheel assembly unit

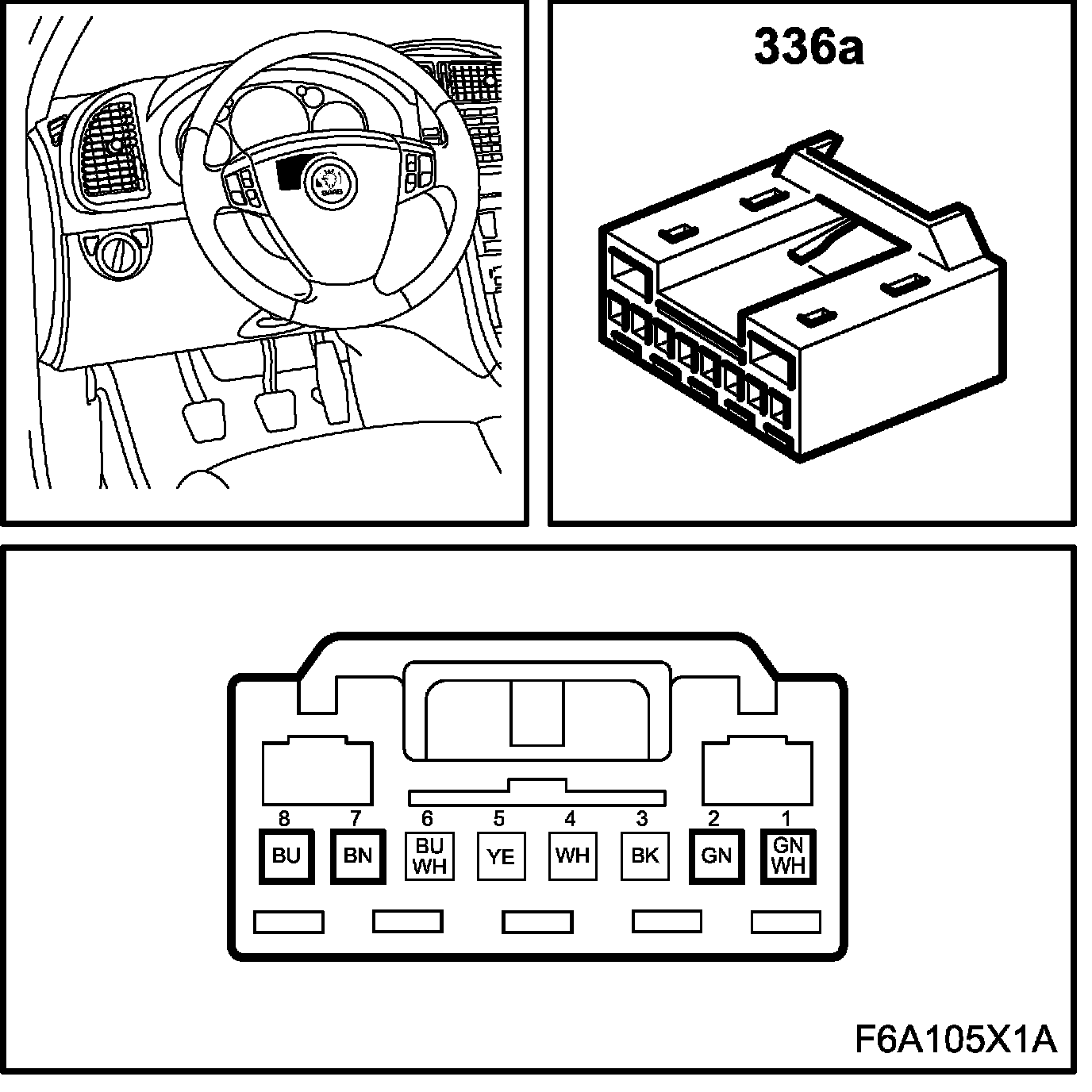

Connection from steering column loom

Steering Wheel Contact Unit, Airbag (335a):

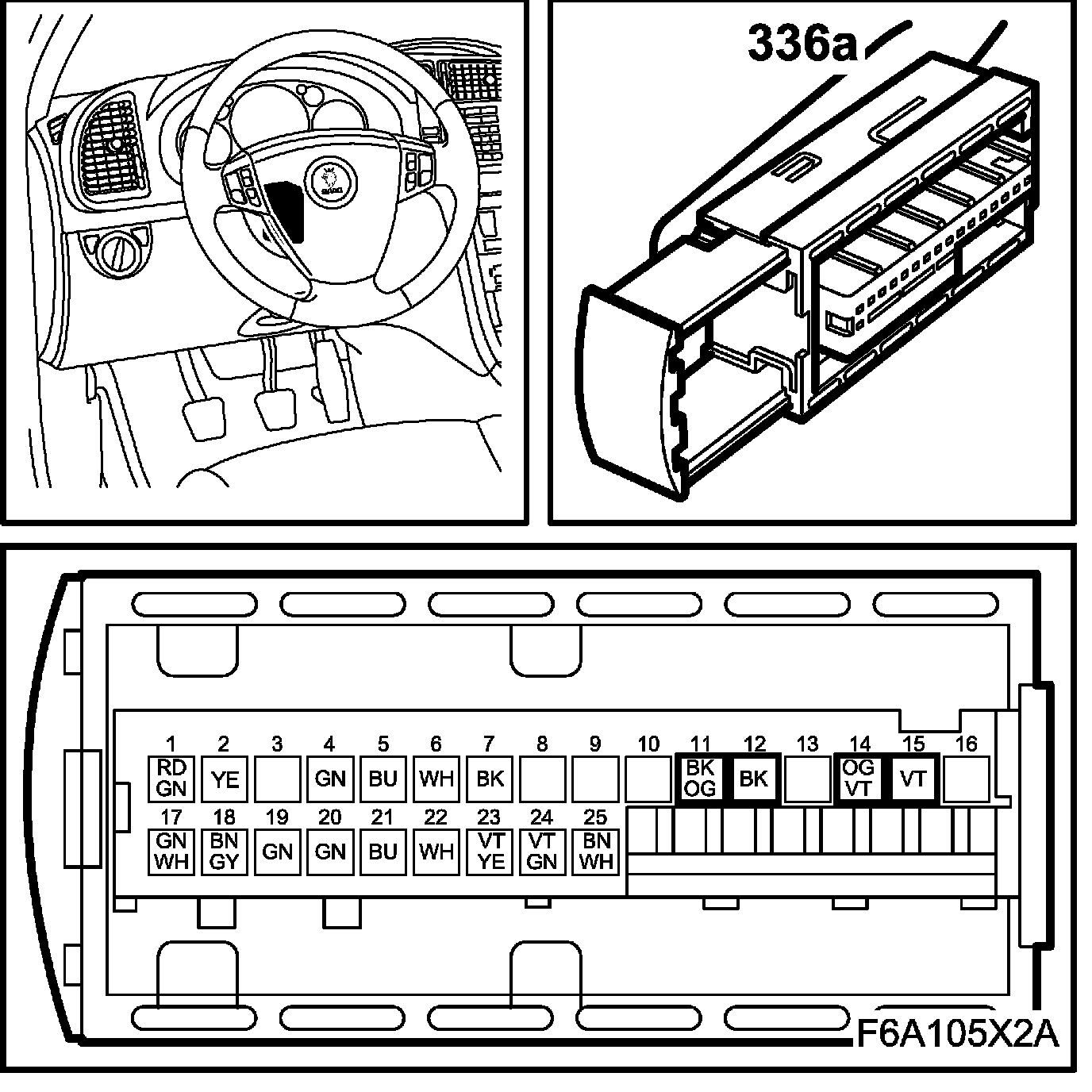

Connection from instrument loom

Steering Wheel Contact Unit, Airbag (335a):
