Turbo Boost Sensor
Turbo Boost Sensor
B284
Location:
integrated in the intake air sensor 688 on the charge air pipe

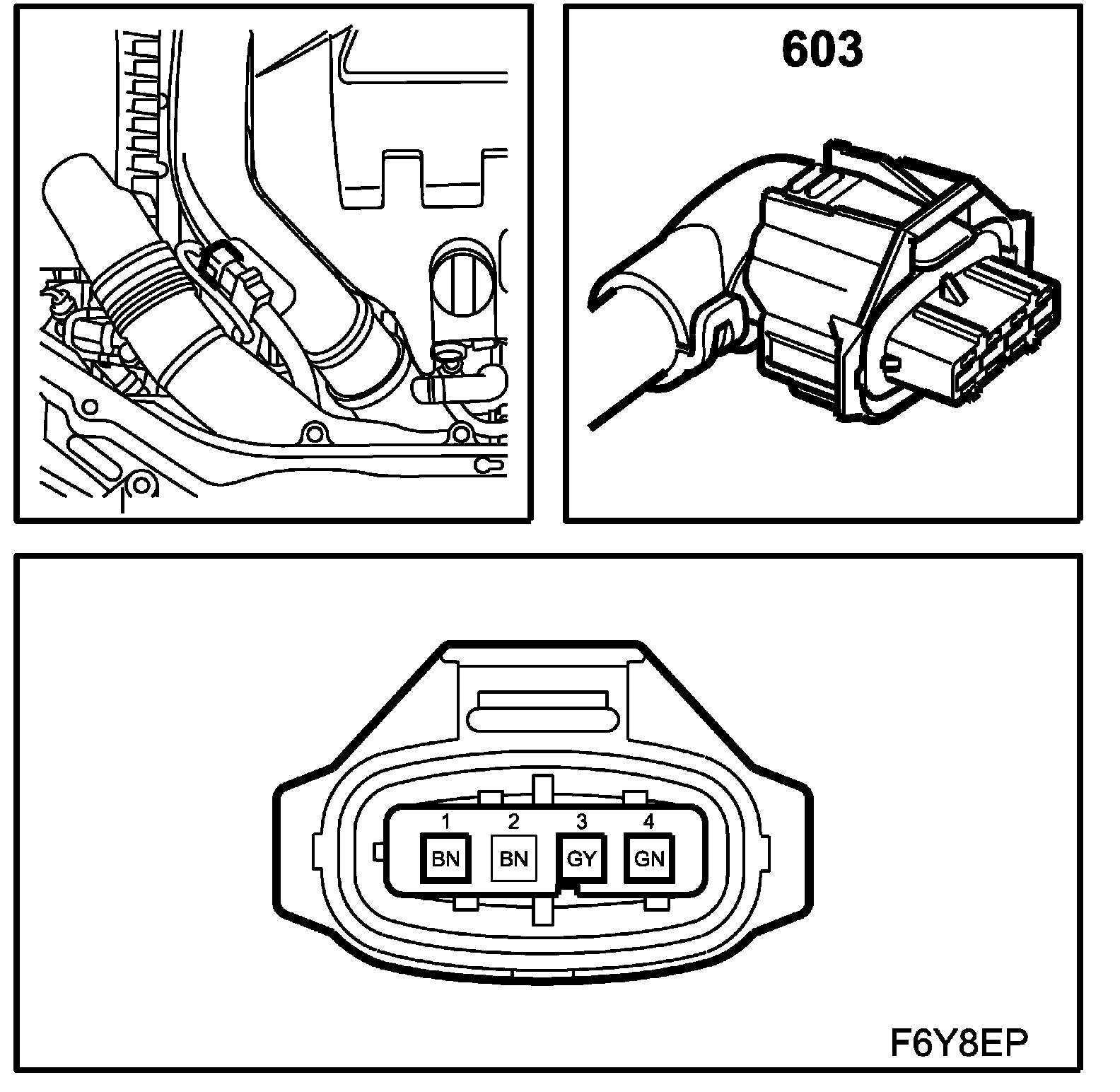

Charge Air Pressure Sensor (603):
