Home >> Saab >> 2006 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Diagrams >> Grounds >> Grounding Point G34P

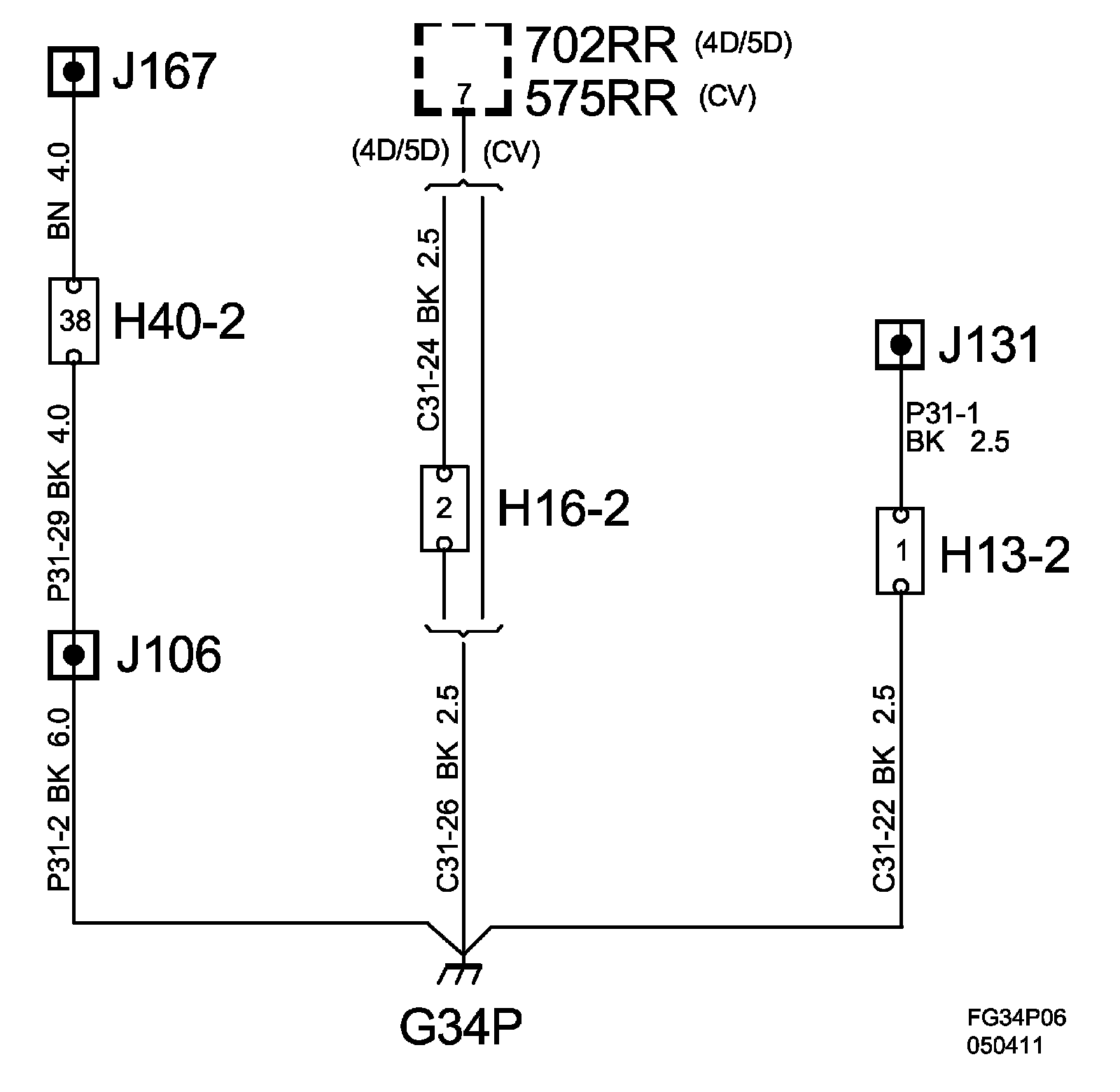

Grounding Point G34P

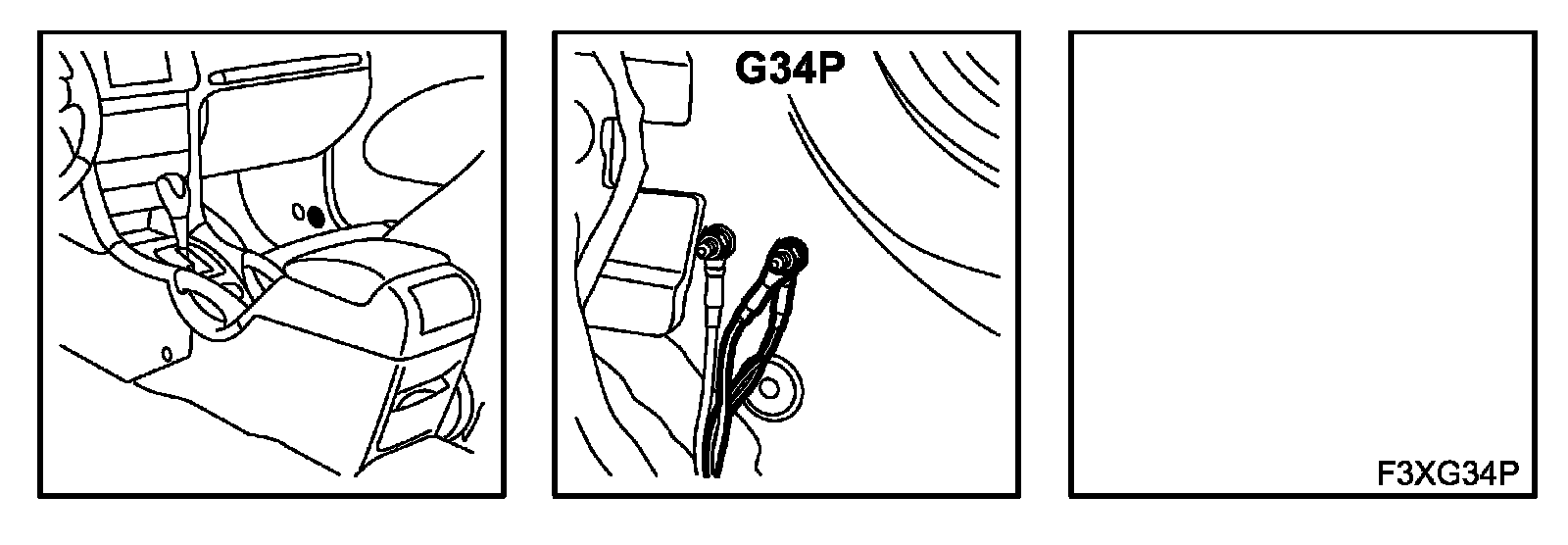

Location: By the floor below the right A-pillar (black tape)

Grounding Point G34P:

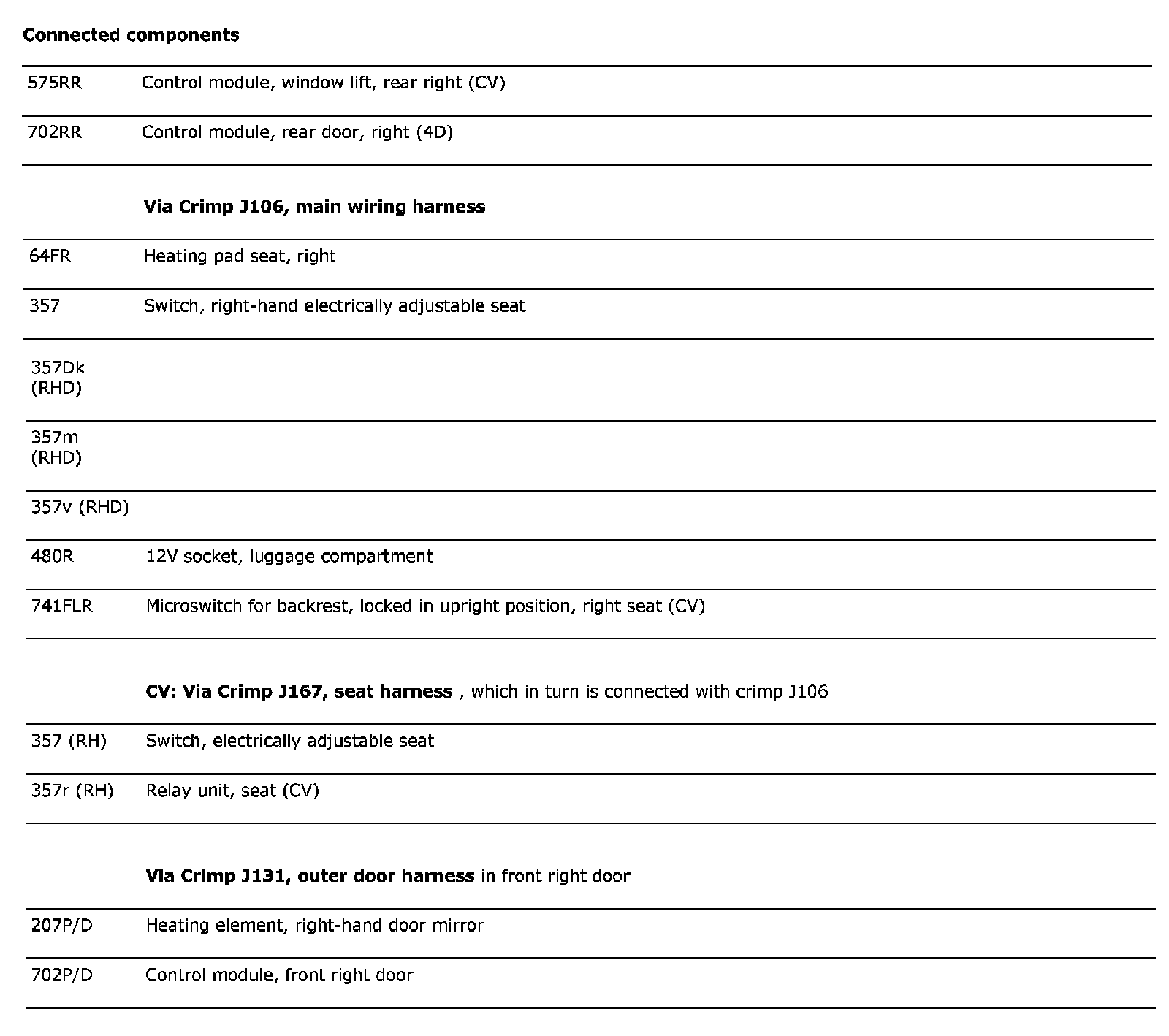

Connected Components:
