Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2006
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Grounds
>>
Grounding Point G49, 4D
Grounding Point G49, 4D

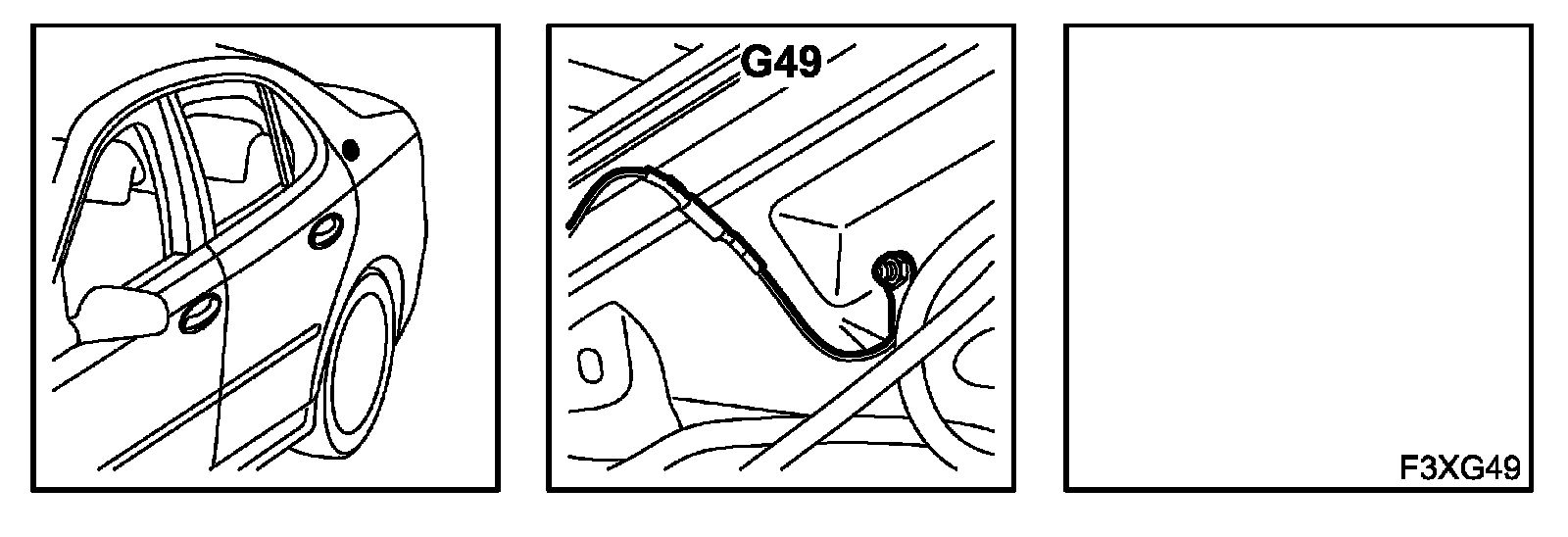

Location:
In the C pillar by the LH side of the rear window.

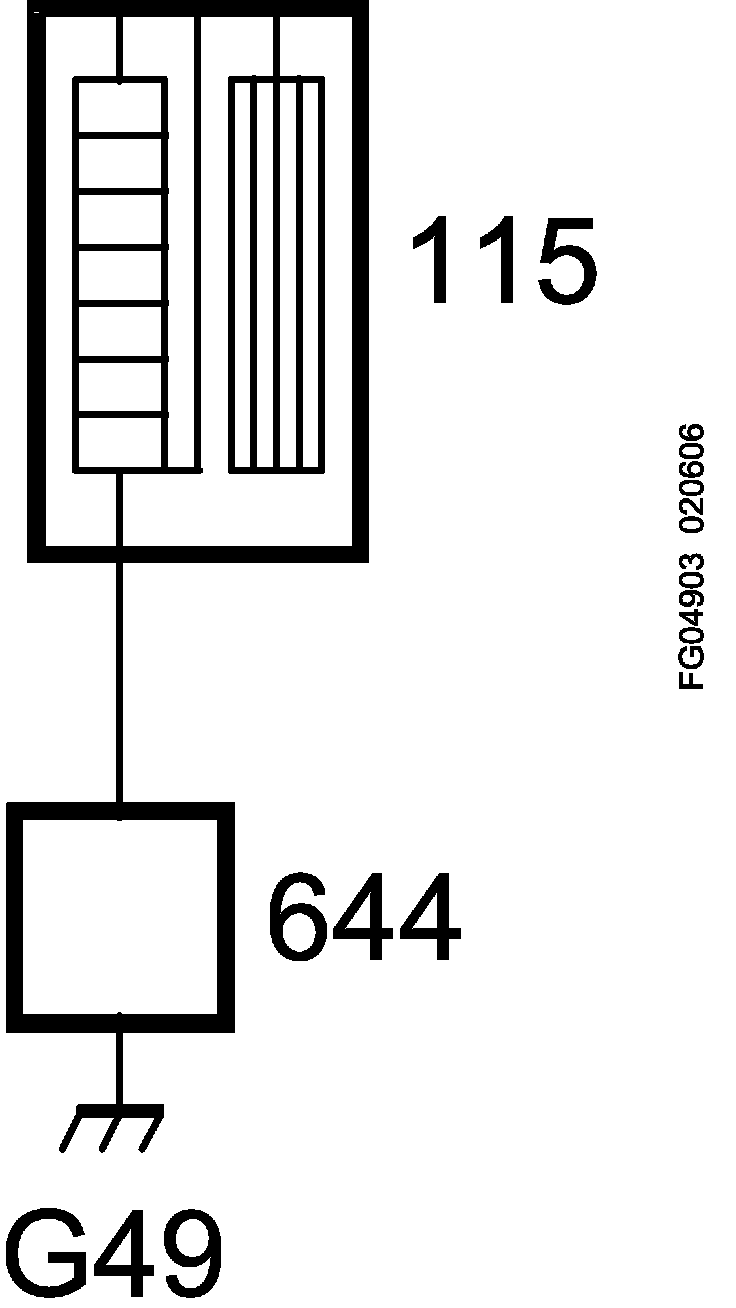

Grounding Point G49:

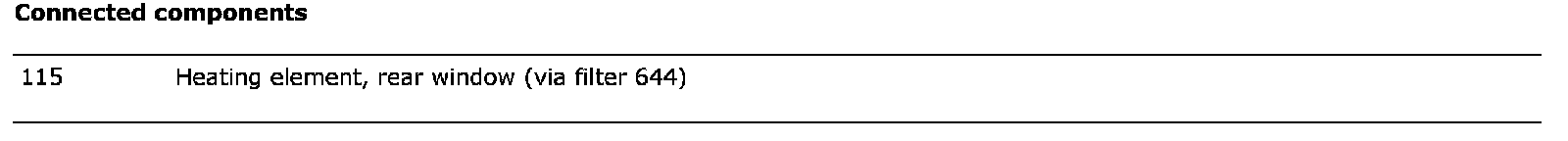

Connected Components:
