Grounding Point G7F
Grounding Point G7F

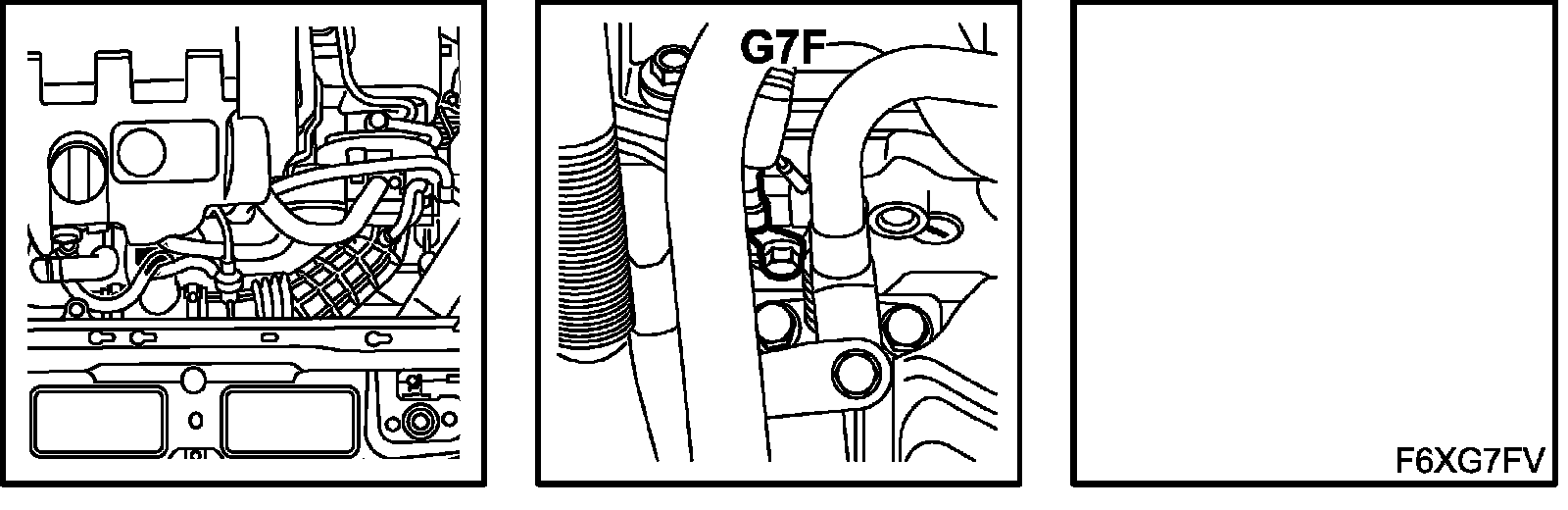

Location:
In the center of the front cylinder bank
Grounding Point G7F:

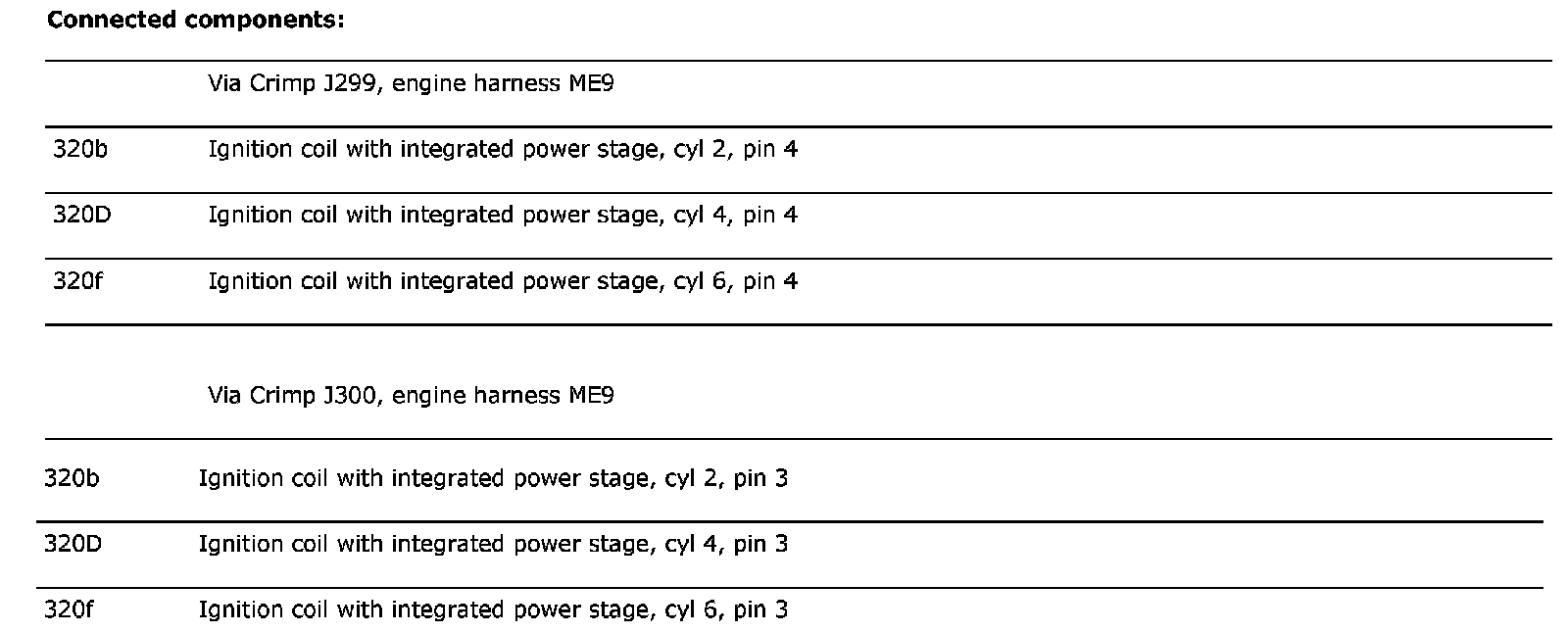

Connected Components:
