Crimp Connection J1, Front Harness



Location: Approx. 210 mm from branching of grounding point G30 towards the left headlamp

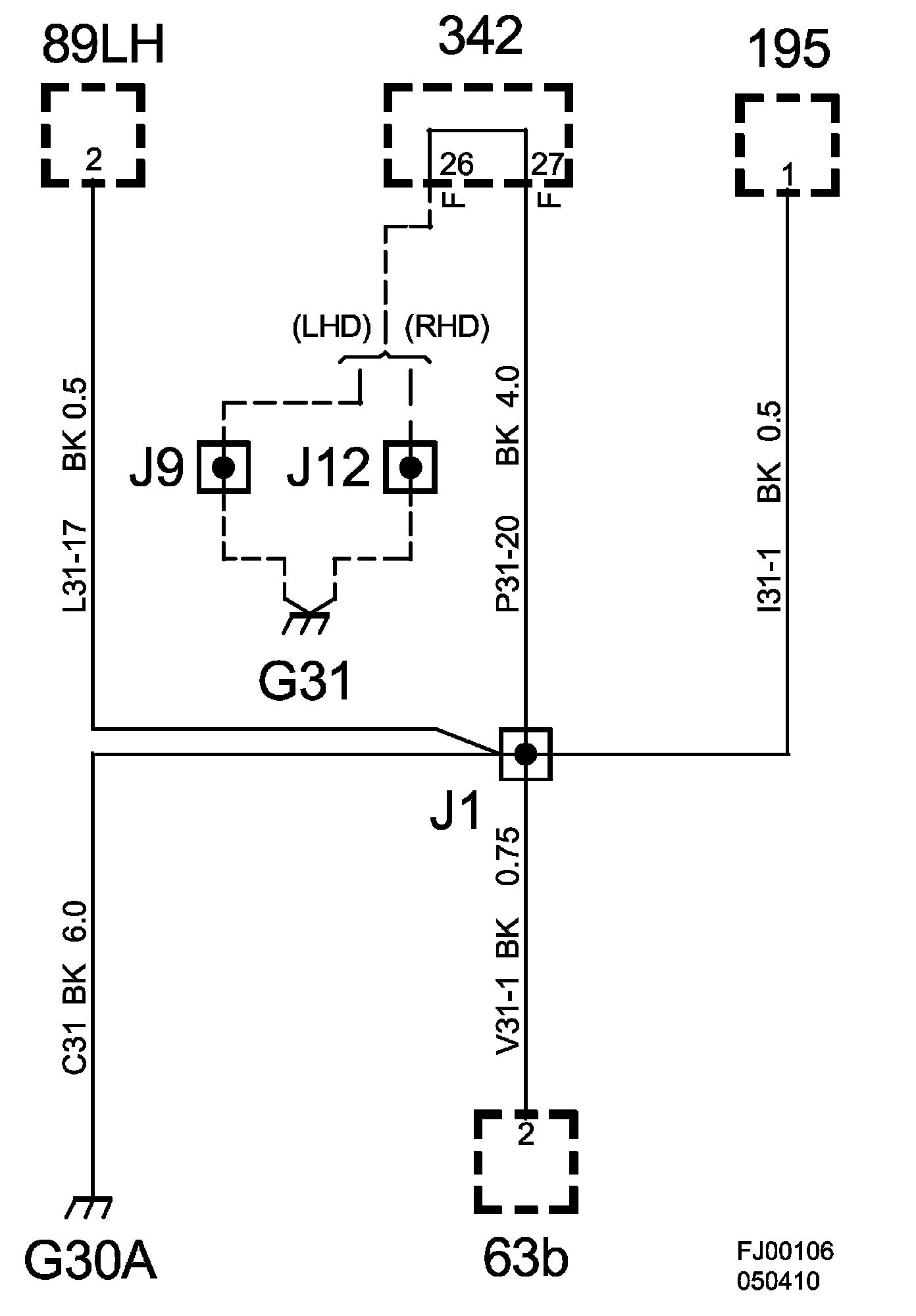

Crimp Connection J1, Front Harness:

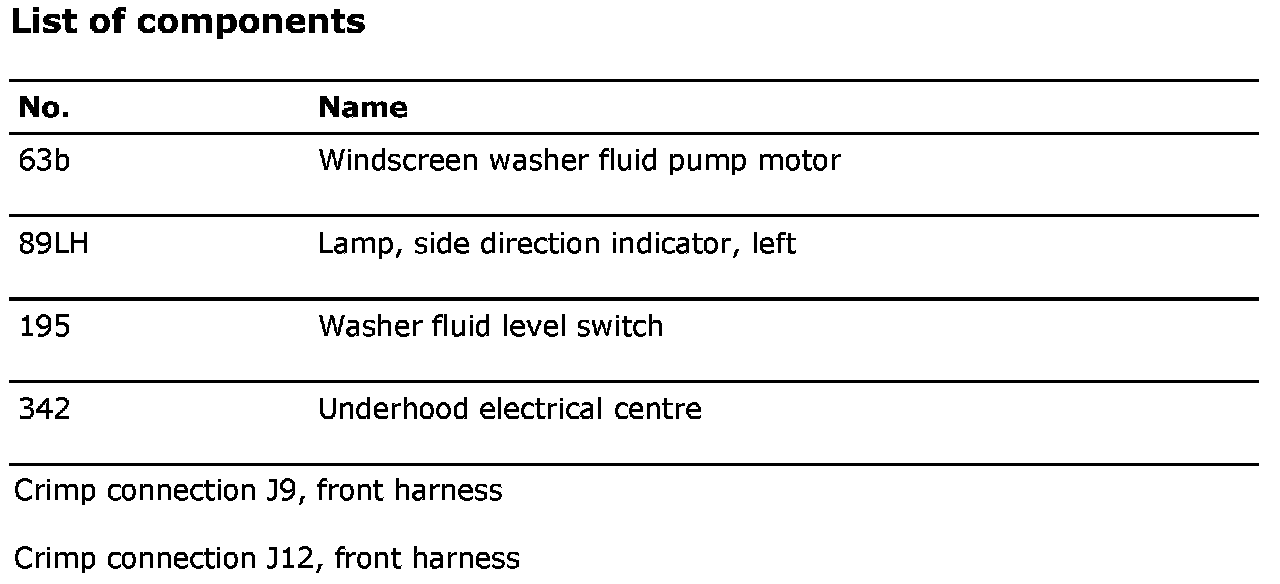

List Of Components:
