Crimp Connection J103, Main Harness
Crimp Connection J103, Main Harness
Location:
4D/5D:
In branching of connector H24-1
CV: --

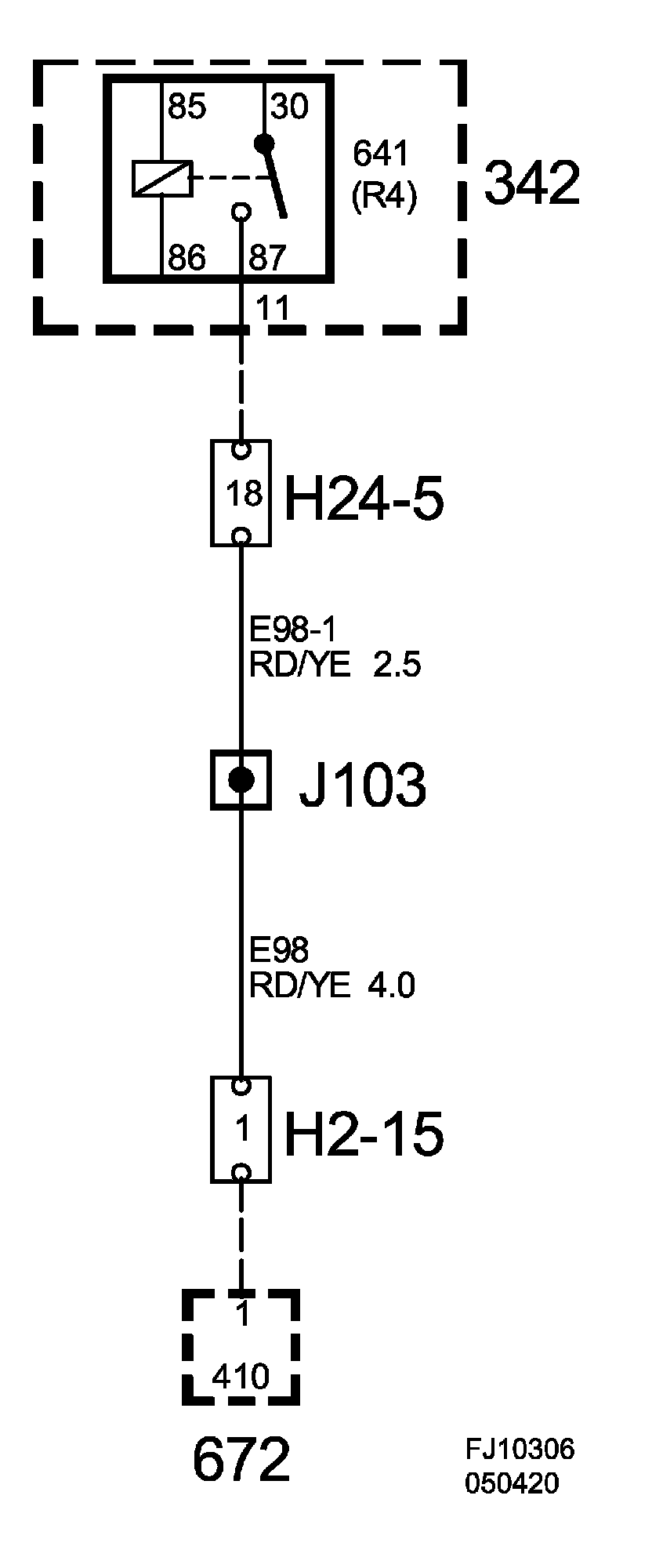

Crimp Connection J103, Main Harness:

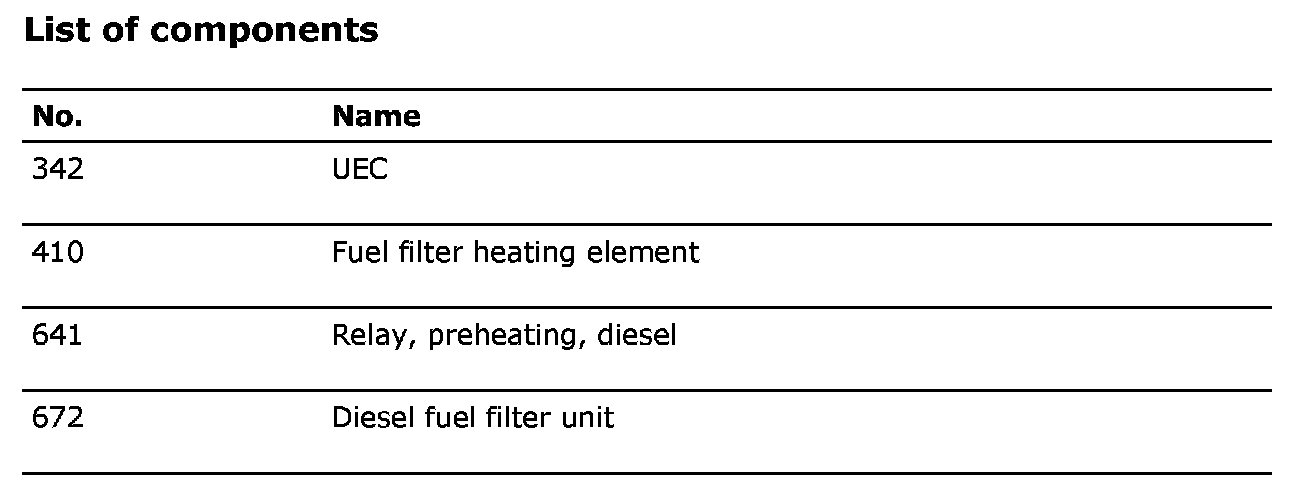

List Of Components:
