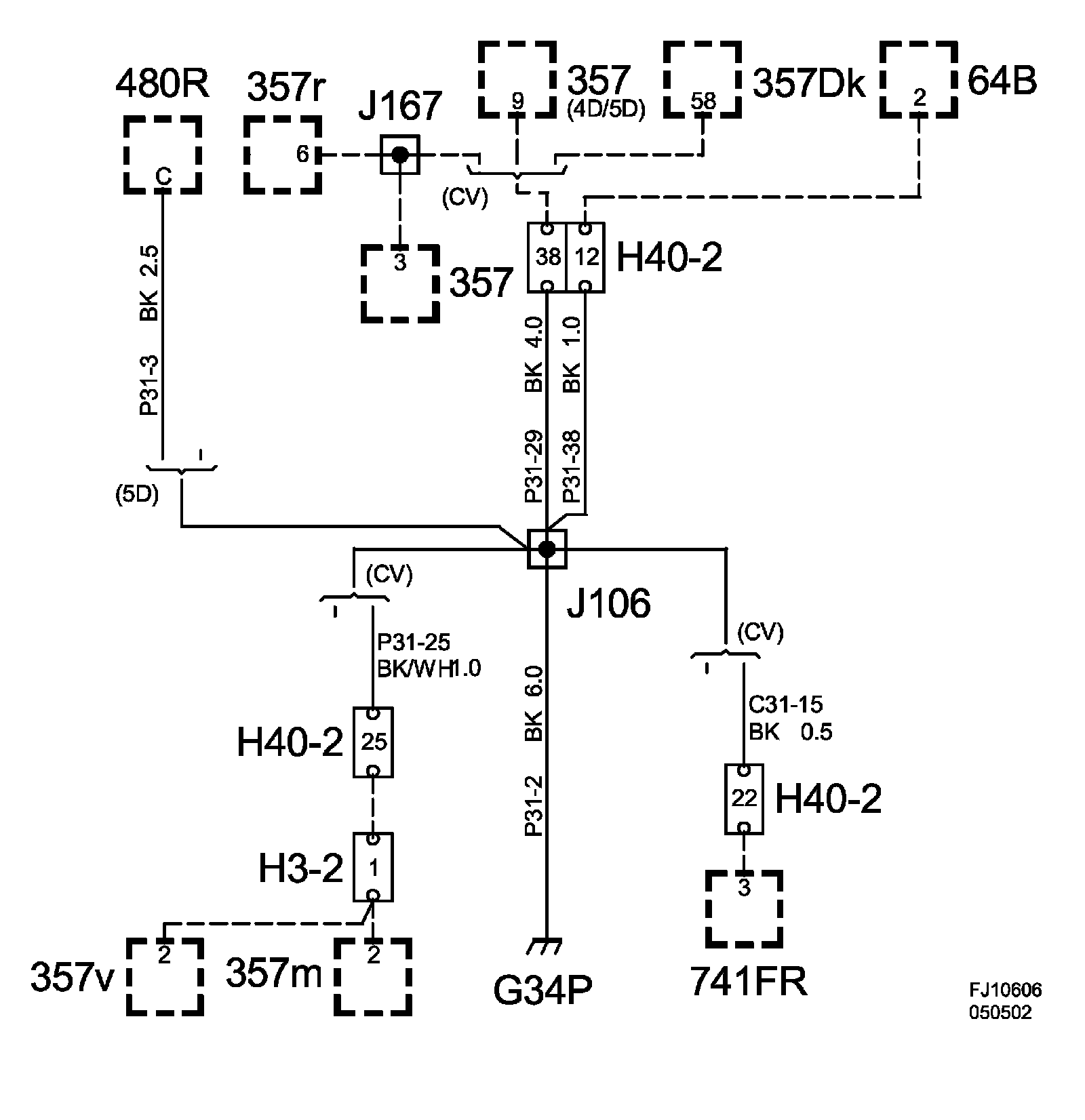

Crimp Connection J106, Main Harness
Location:
4D/5D: Approx. 280 mm from the right-hand seat connector
CV: Approx. 50 mm from branching point right-hand seat
Crimp Connection J106, Main Harness:
List Of Components:
Location:
4D/5D: Approx. 280 mm from the right-hand seat connector
CV: Approx. 50 mm from branching point right-hand seat
