Crimp Connection J111, Main Harness
Crimp Connection J111, Main Harness
Location:
4D/CV: --
5D:
In the branching of connector H102-1

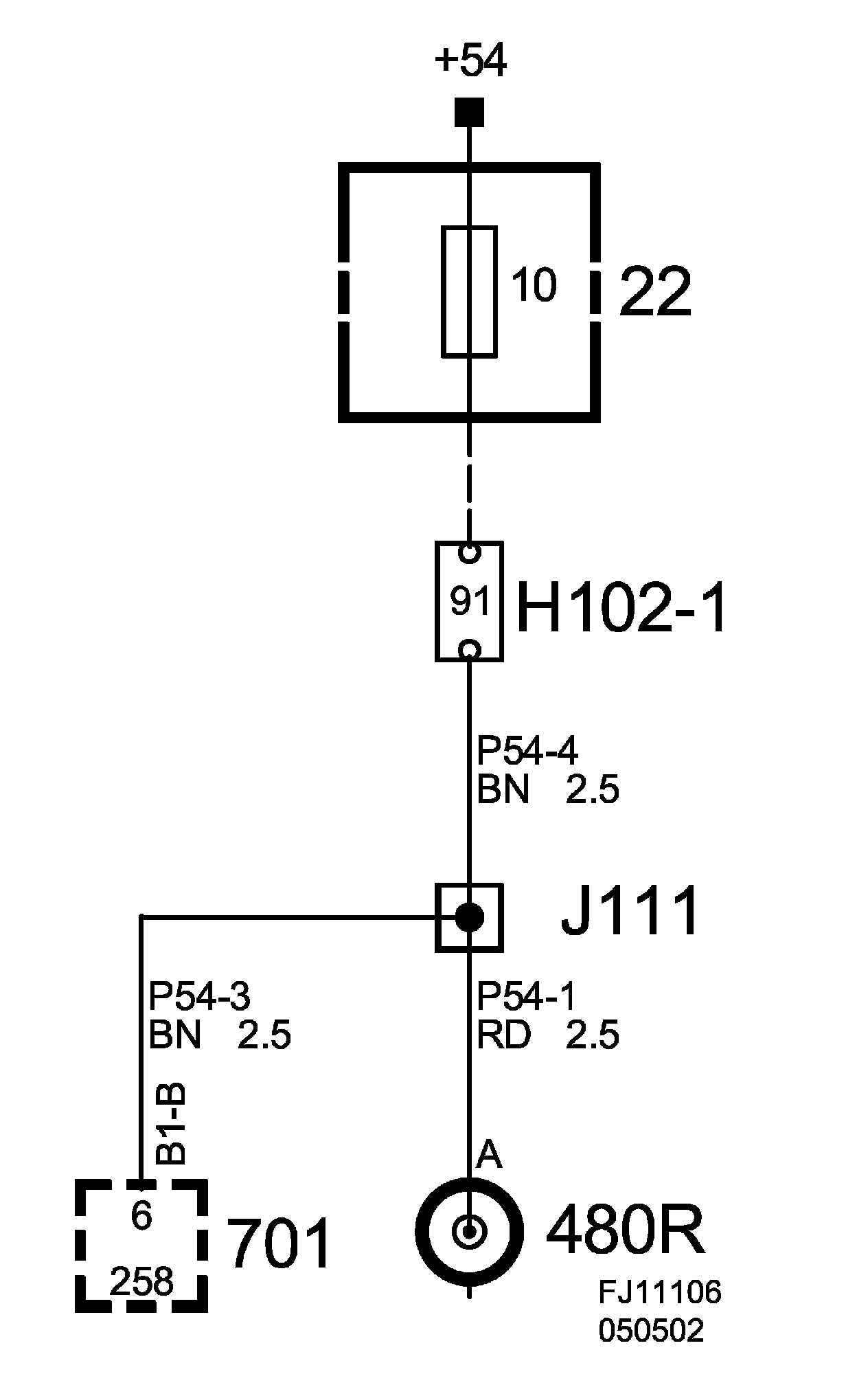

Crimp Connection J111, Main Harness:

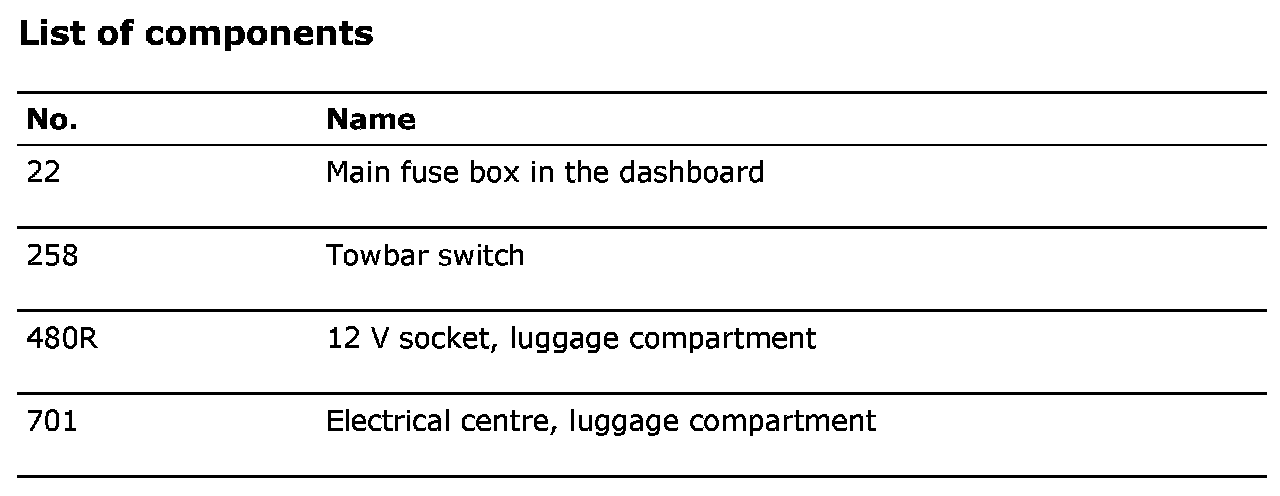

List Of Components:
