Crimp Connection J299, Engine Harness ME9

Location: Approx. 40 mm from branching of cylinder 2 ignition coil toward cylinder 4

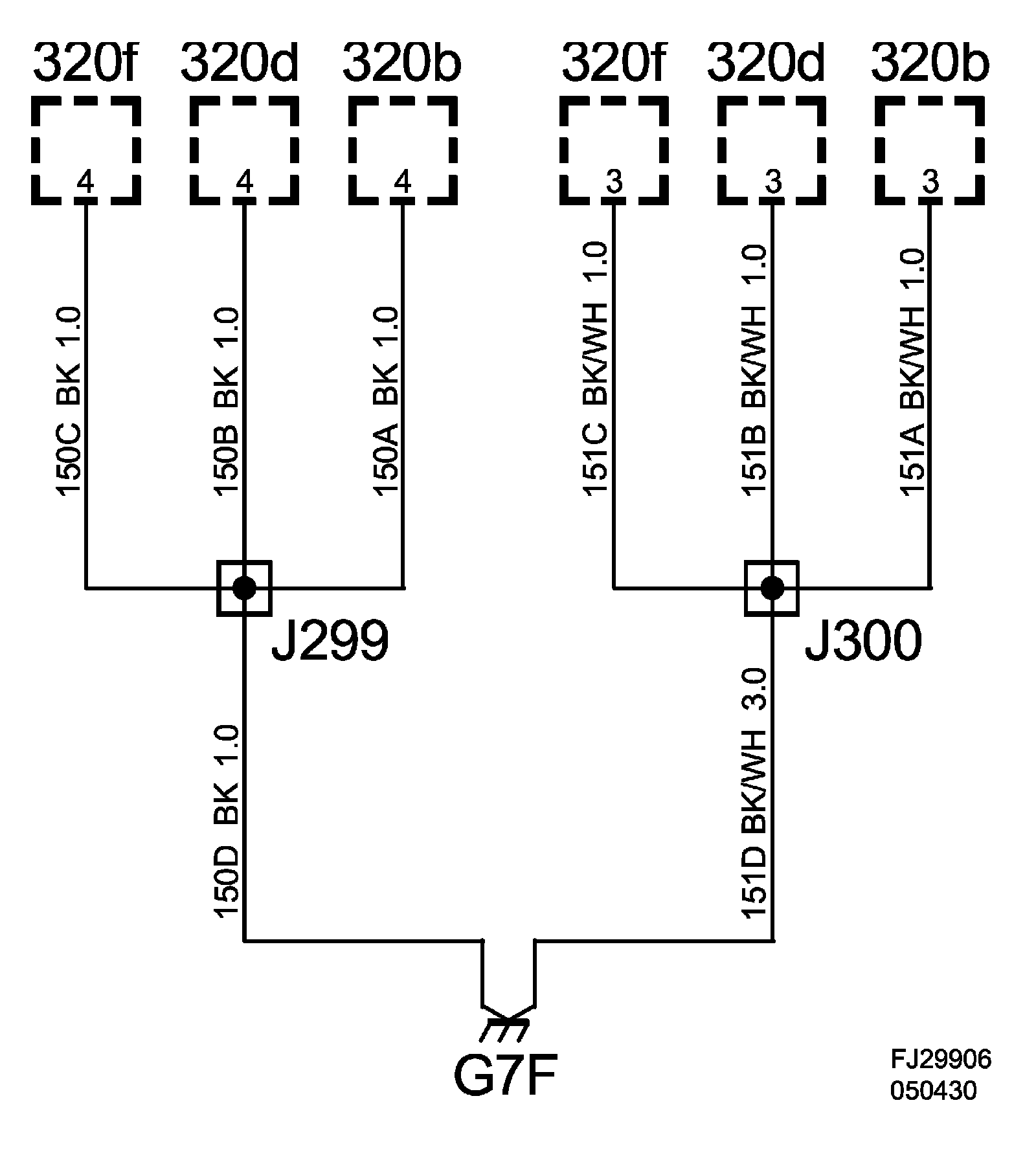

Crimp J299, Engine Harness:

List Of Components:
