Operation CHARM
: Car repair manuals for everyone.
Home
>>
Saab
>>
2006
>>
9-3 (9440) V6-2.8L Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Splices
>>

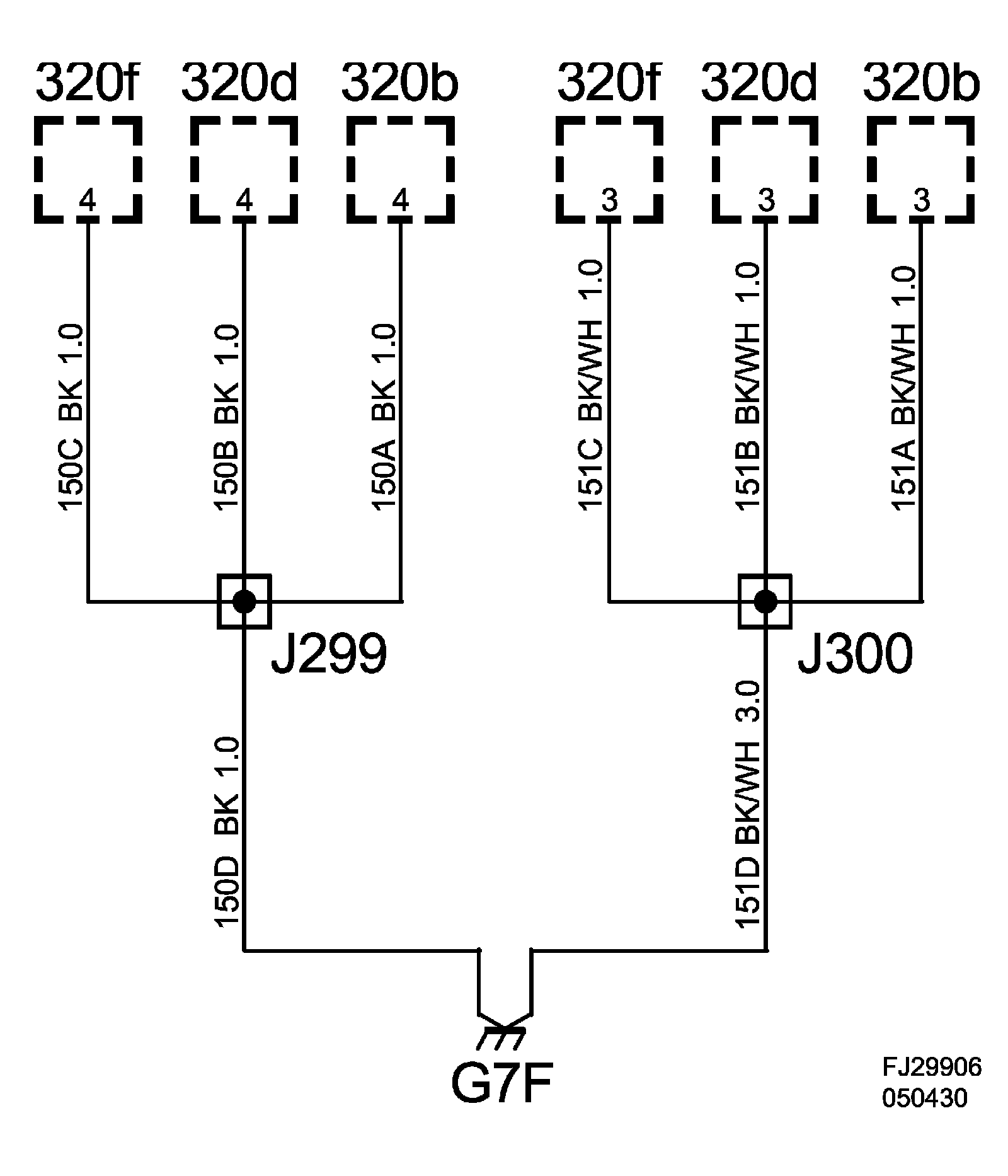

Crimp Connection J300, Engine Harness ME9
Crimp Connection J300, Engine Harness ME9
Location:
Approx.
60 mm
from
grounding point
G7F
Crimp J300, Engine Harness:

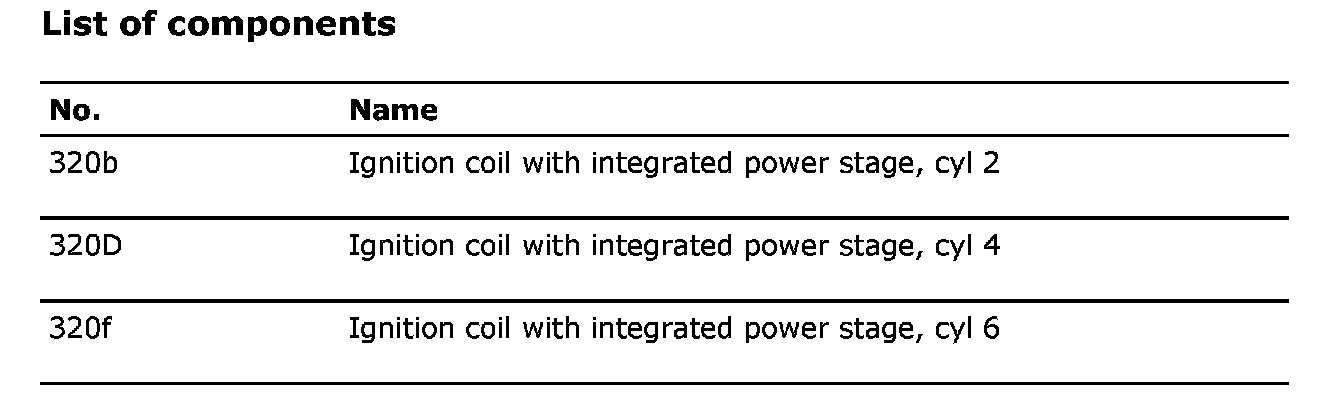

List Of Components:
