Crimp Connection J307, Adapter Harness ME9
Crimp Connection J307, Adapter Harness ME9
Location:
In main fuse box 727 approx.
170 mm
from relay plate

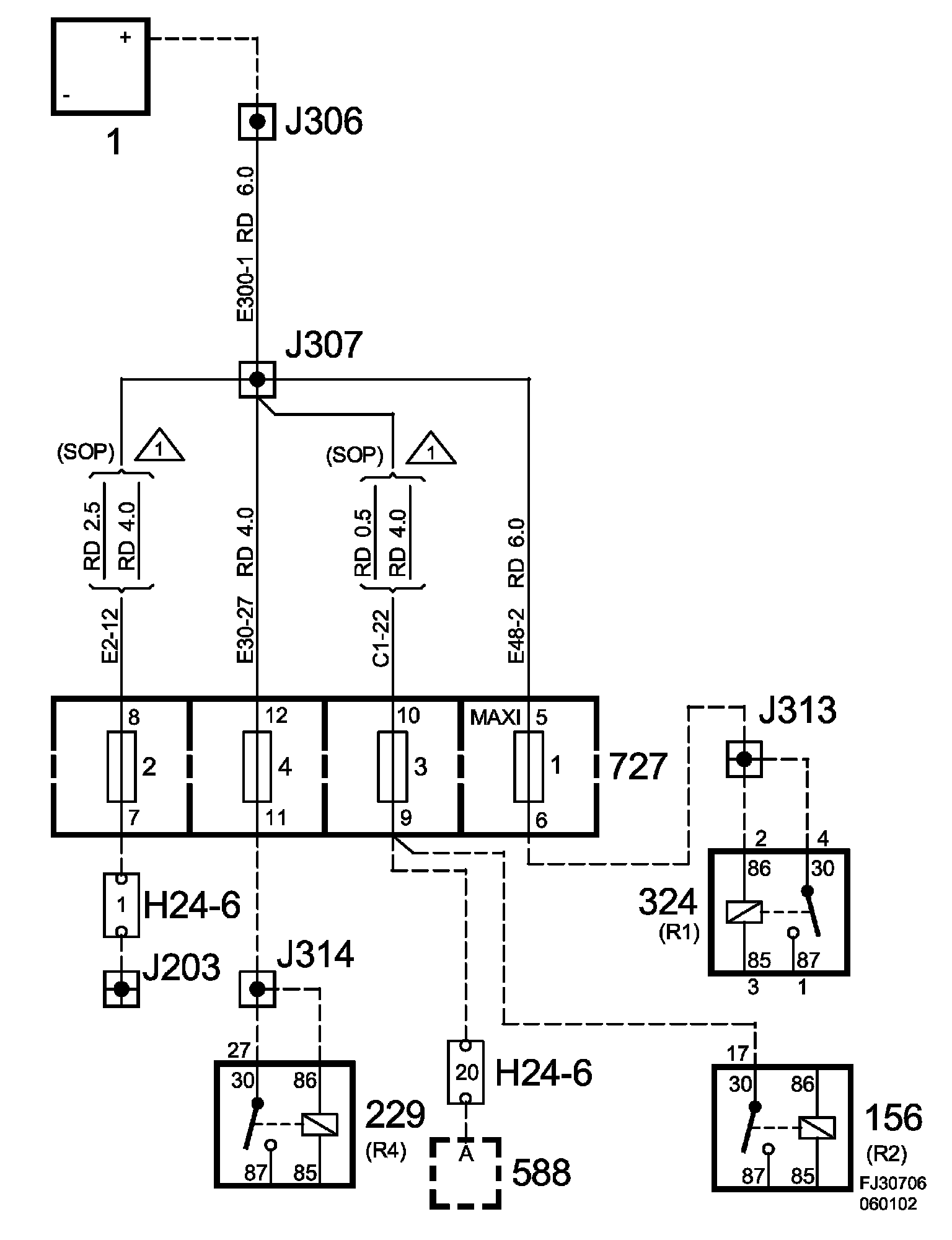

Crimp J307, Adapter Harness:

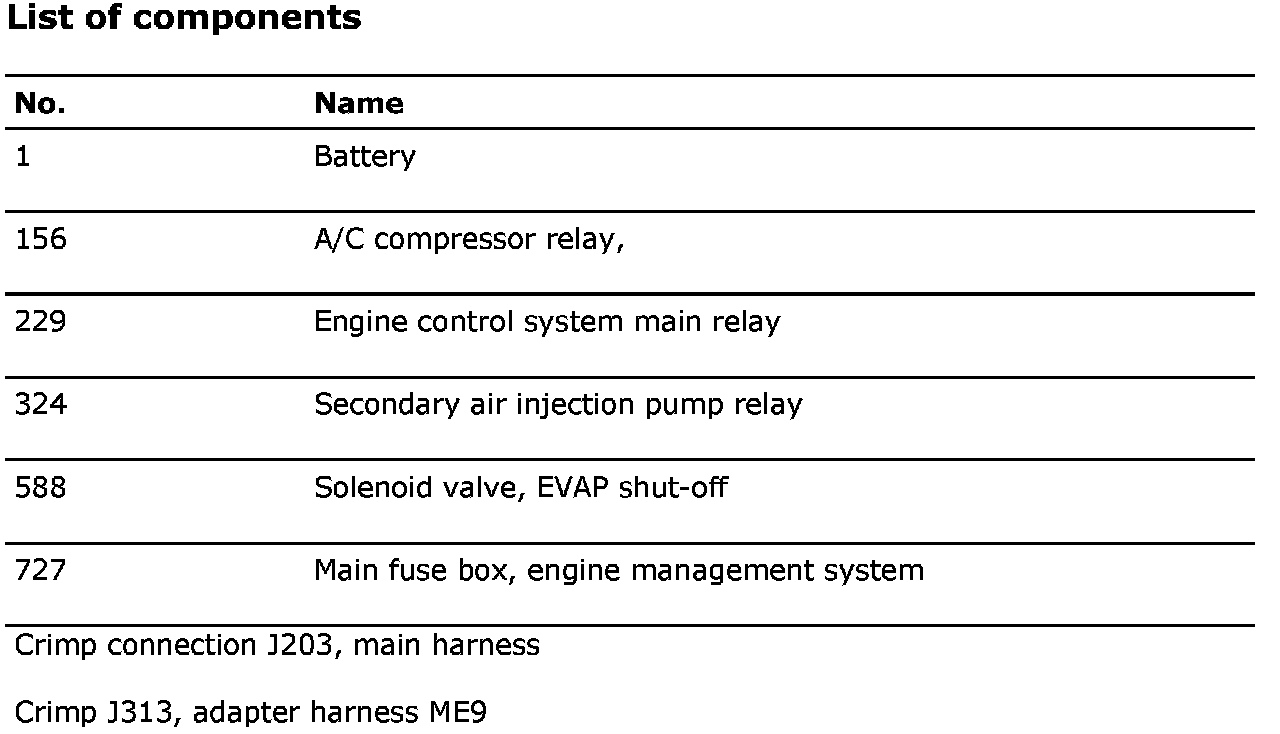

List Of Components:
