Crimp Connection J311, Adapter Harness ME9



Location: Approx. 290 mm from branching of battery toward engine control module

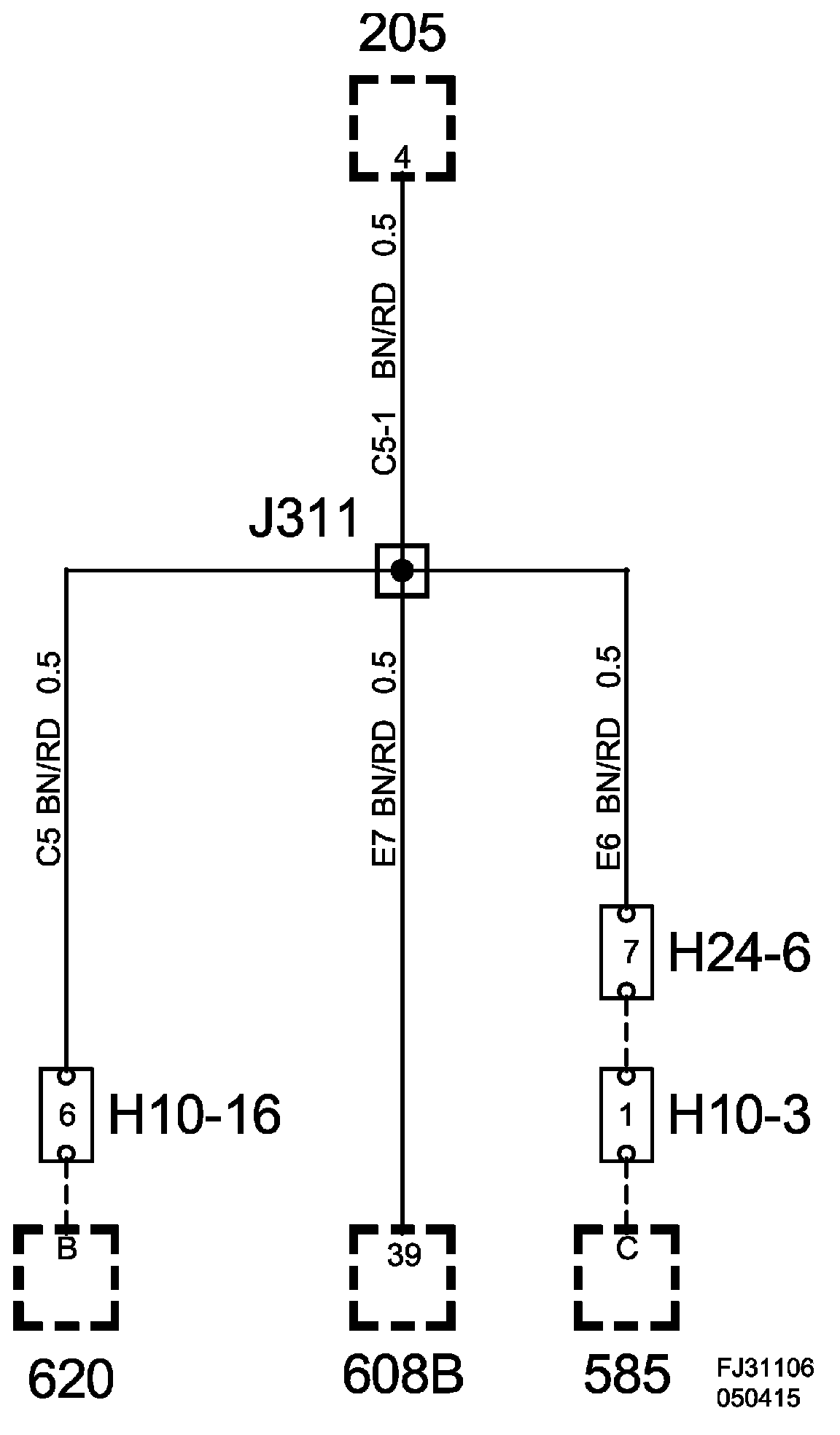

Crimp J311, Adapter Harness:

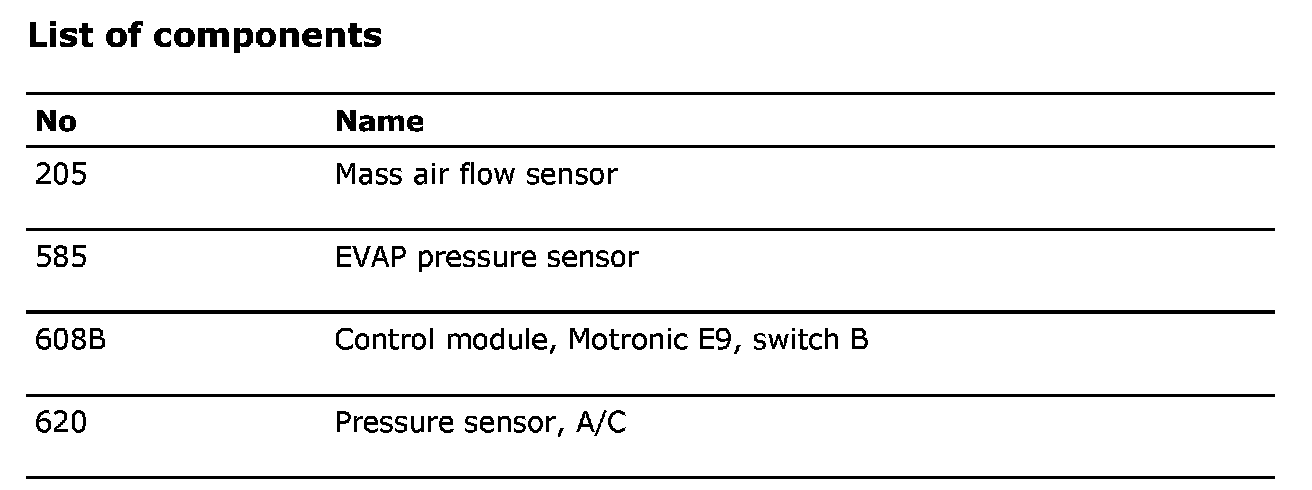

List Of Components:
