Crimp Connection J65, Instrument Harness
Crimp Connection J65, Instrument Harness
Location:
LHD:
Approx.
120 mm
from branching of light switch unit towards the column integration module

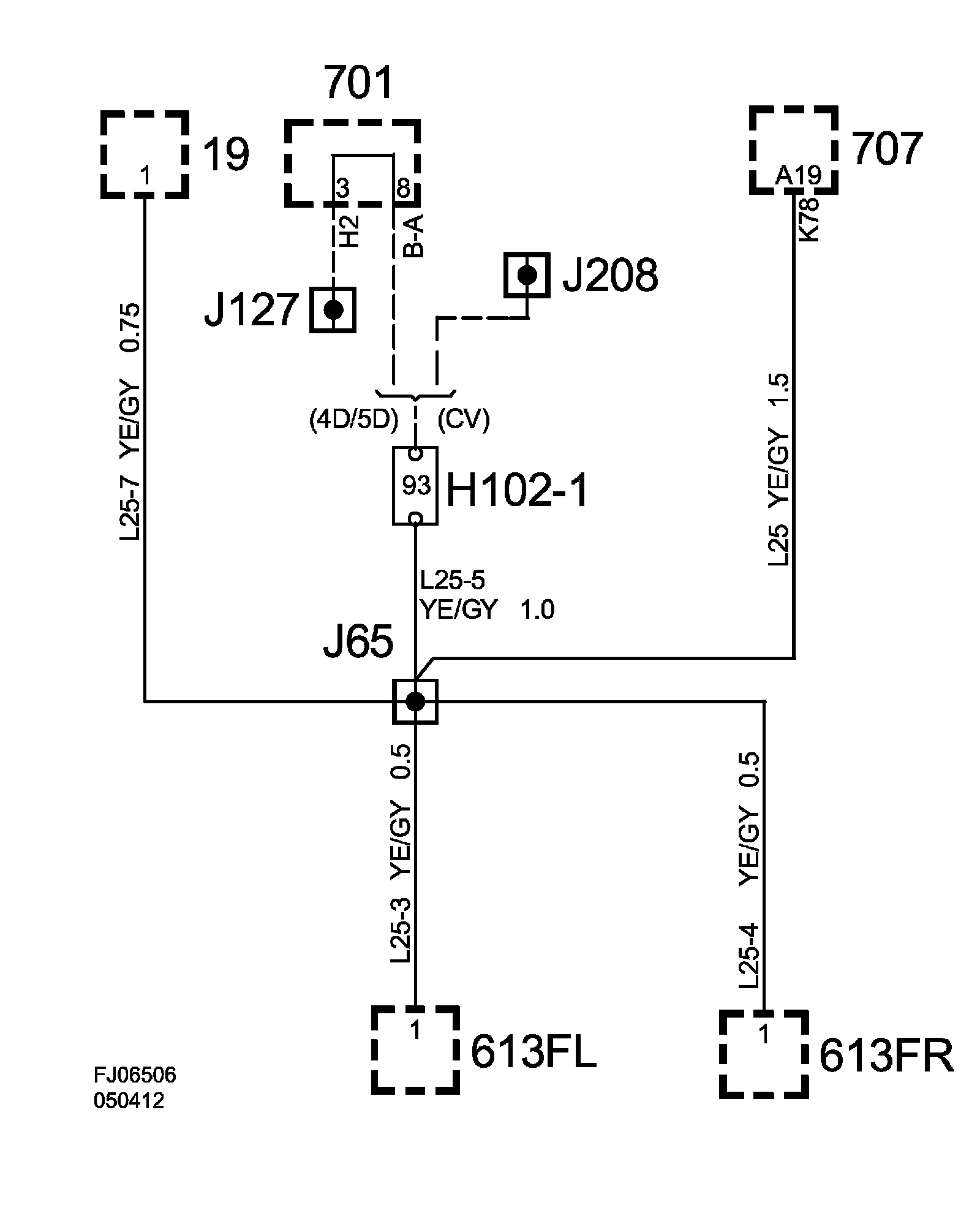

Crimp Connection J65, Instrument Harness:

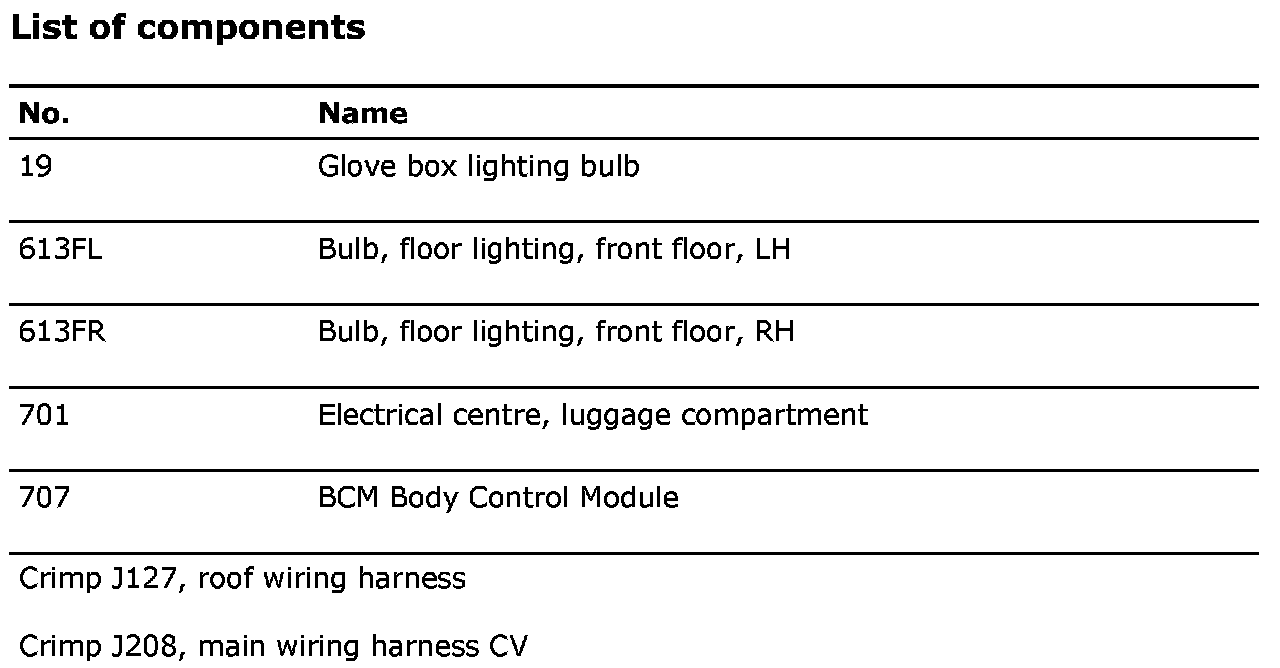

List Of Components:
