Crimp Connection J7, Front Harness

Location: Approx. 270 mm from branching of grounding point G30 towards the right headlamp

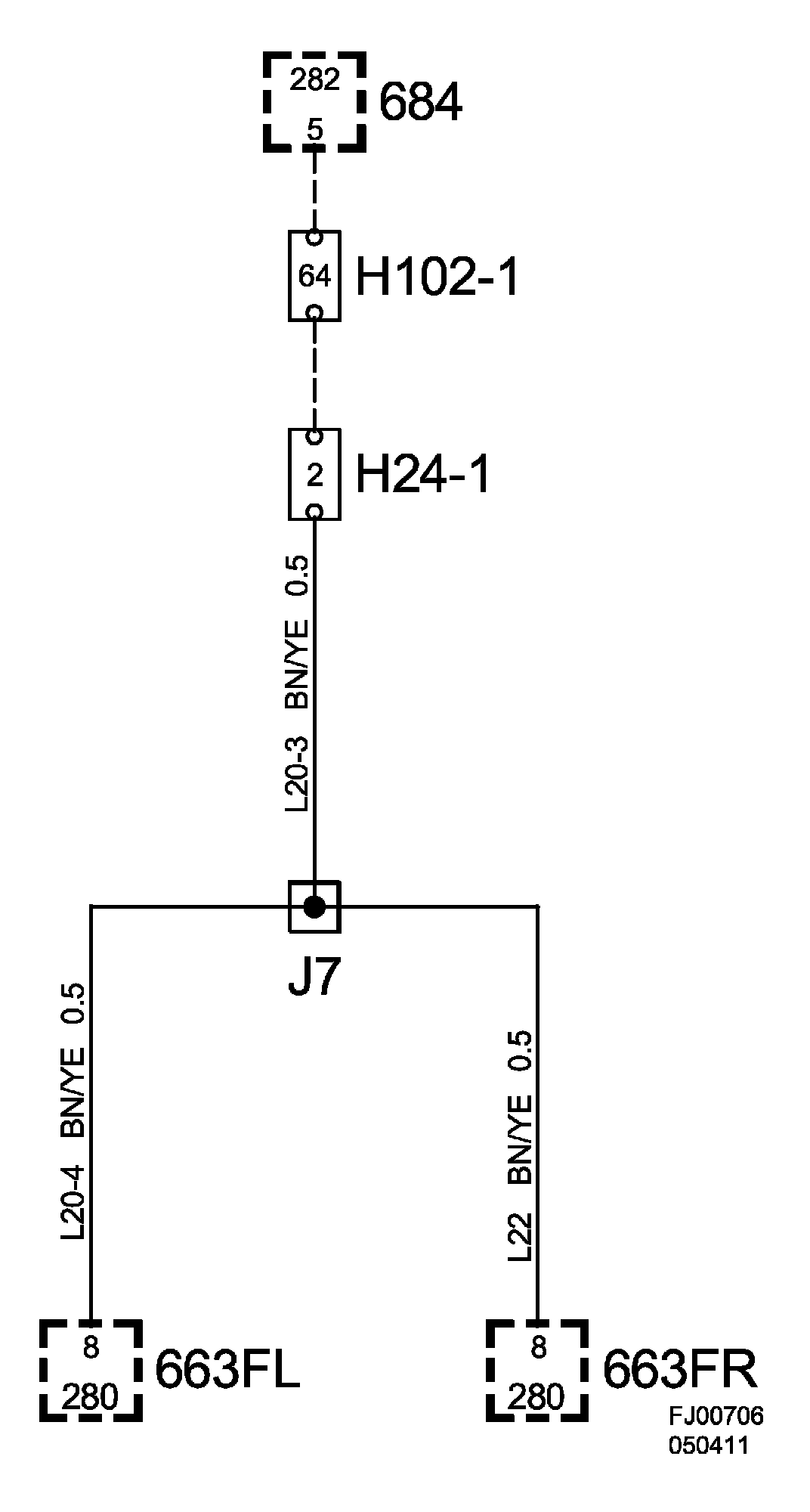

Crimp Connection J7, Front Harness:

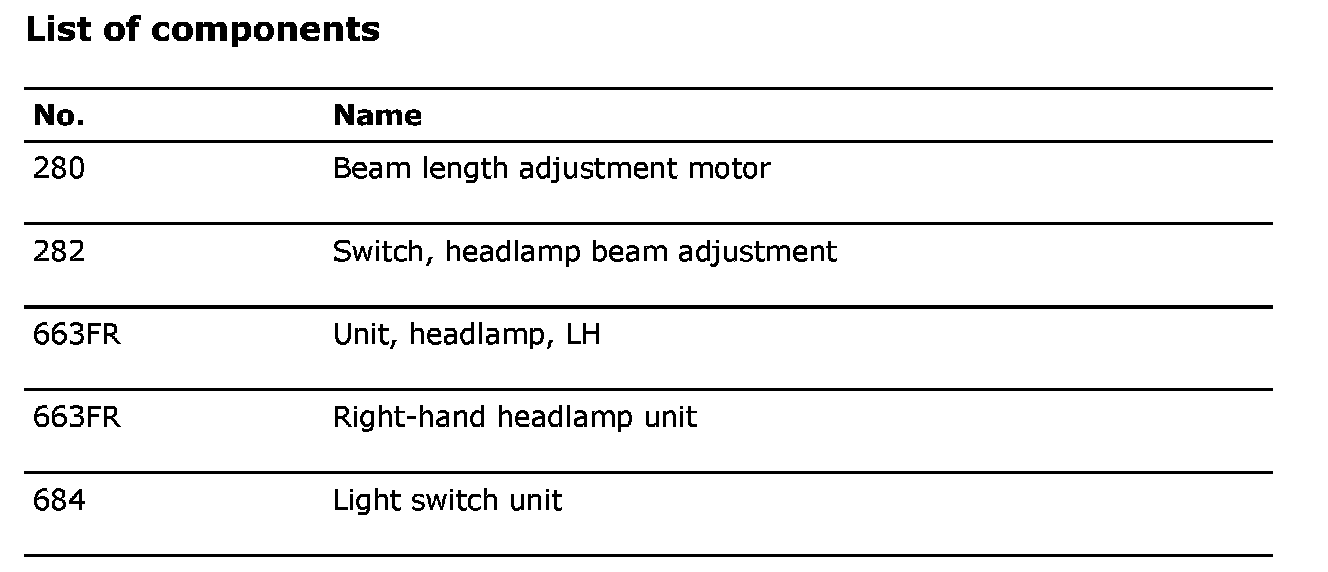

List Of Components:
