Crimp Connection J70, Instrument Harness
Crimp Connection J70, Instrument Harness
Location:
LHD:
Approx.
290 mm
from branching point of light switch unit towards the column integration unit

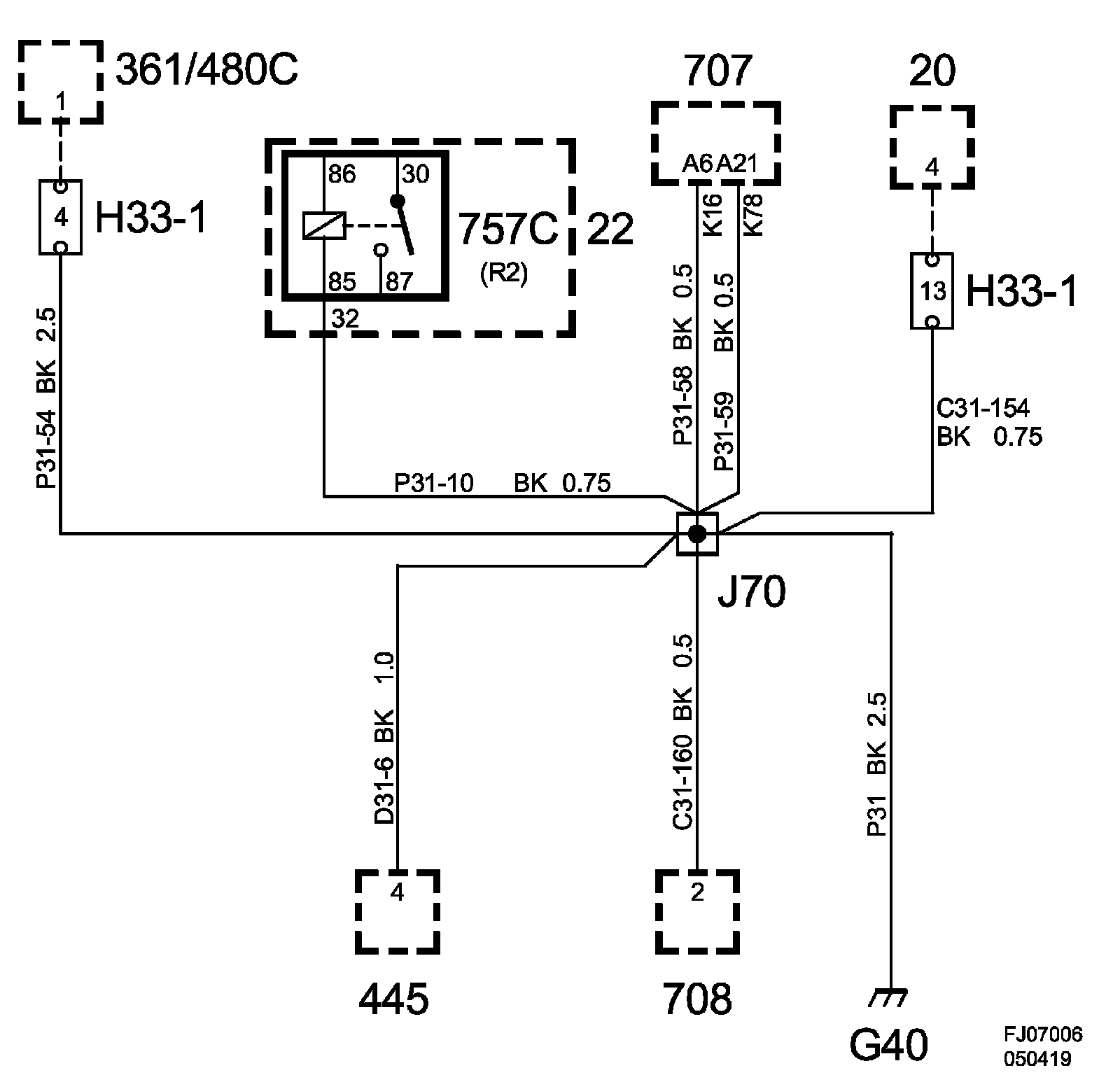

Crimp Connection J70, Instrument Harness:

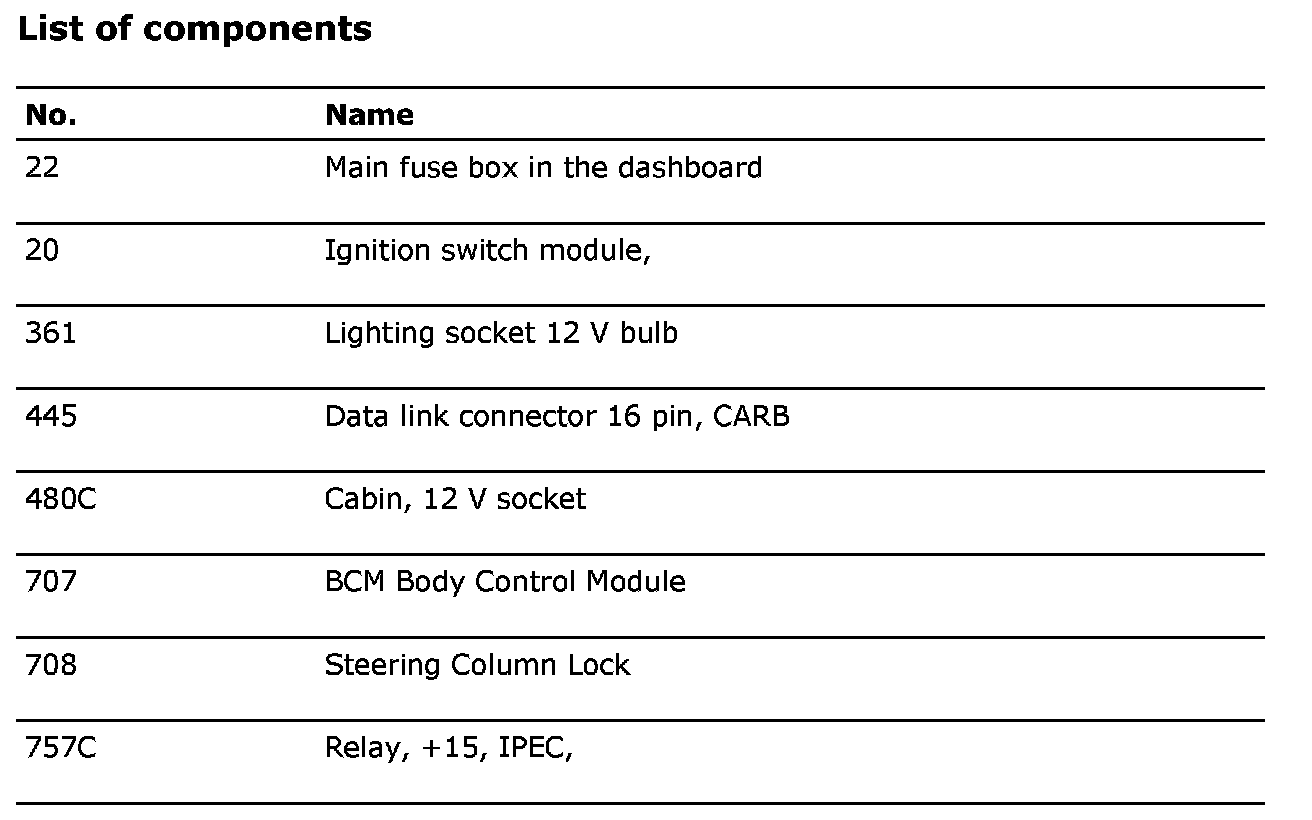

List Of Components:
