Crimp Connection J72, Instrument Harness
Crimp Connection J72, Instrument Harness
Location:
LHD:
Approx.
210 mm
from infotainment control panel

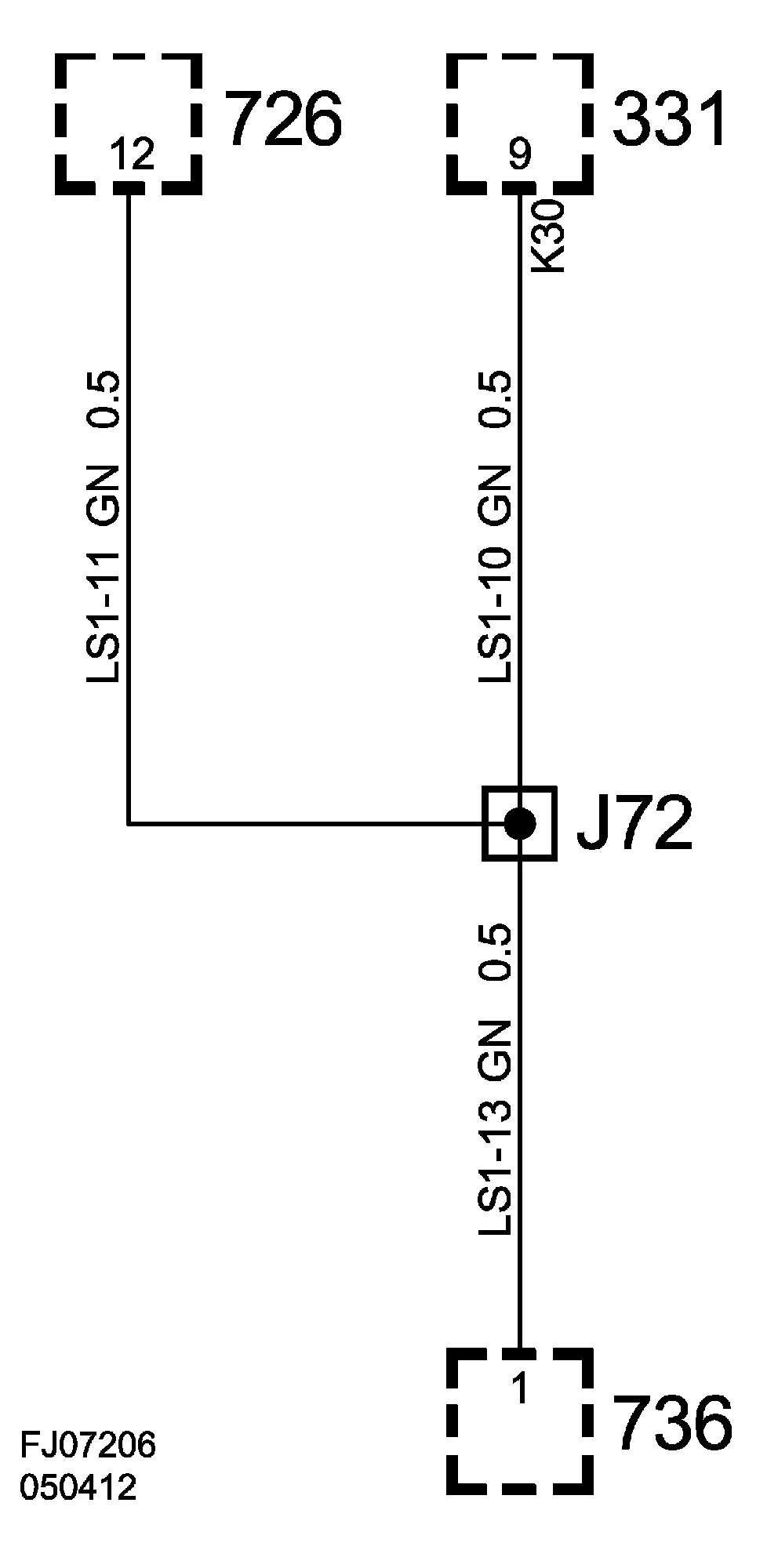

Crimp Connection J72, Instrument Harness:

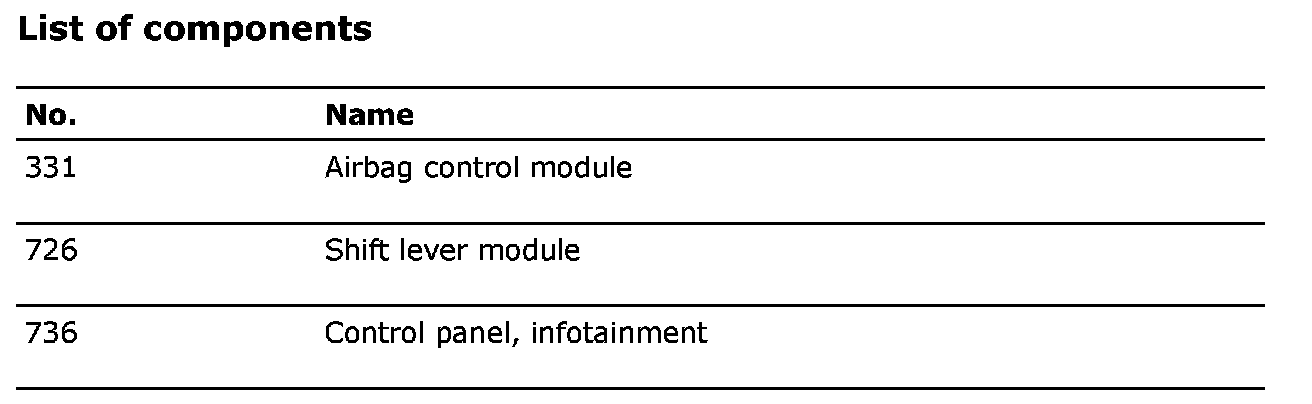

List Of Components:
