Crimp Connection J73, Instrument Harness
Crimp Connection J73, Instrument Harness
Location:
Approx.
90 mm
from infotainment control panel

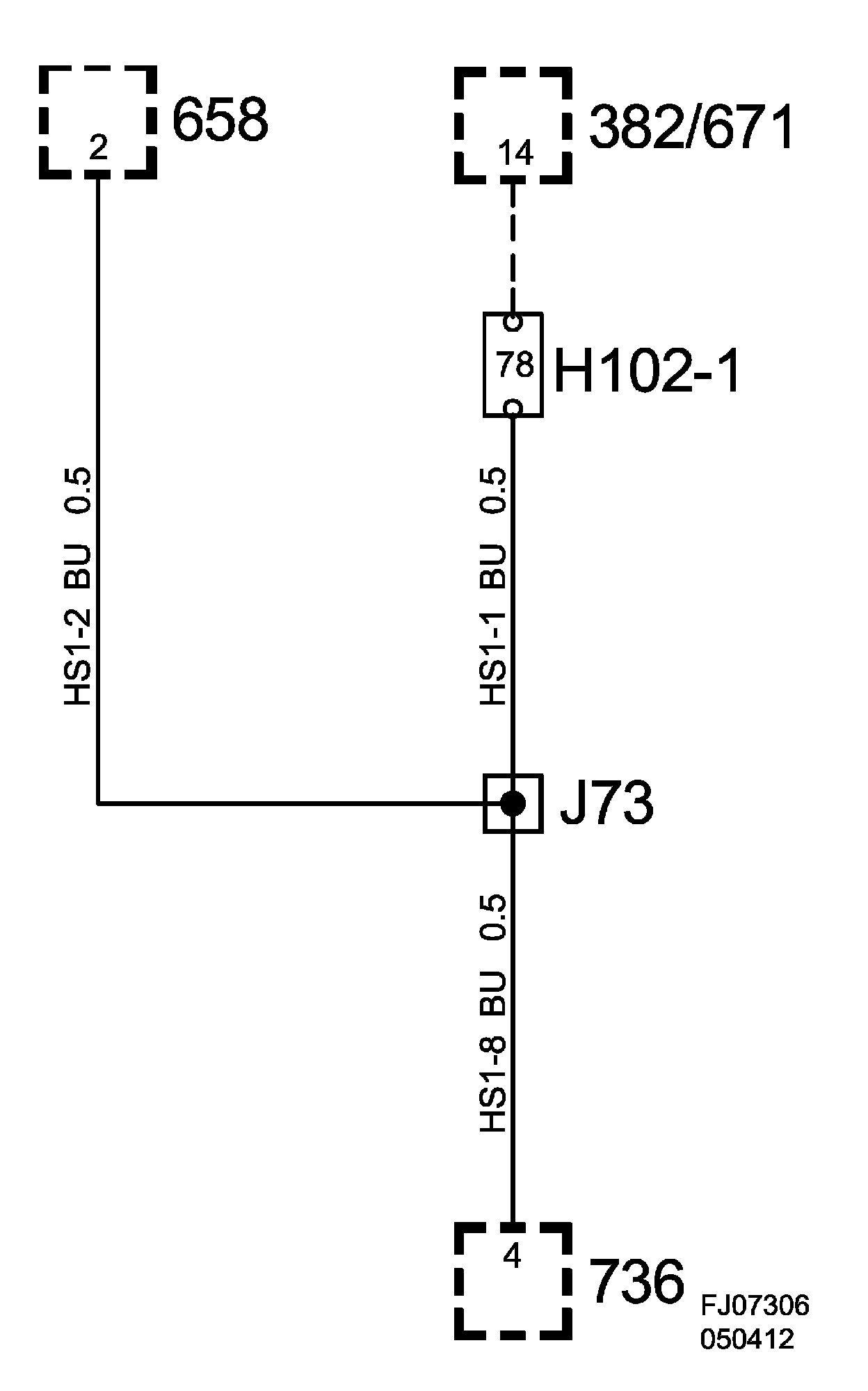

Crimp Connection J73, Instrument Harness:

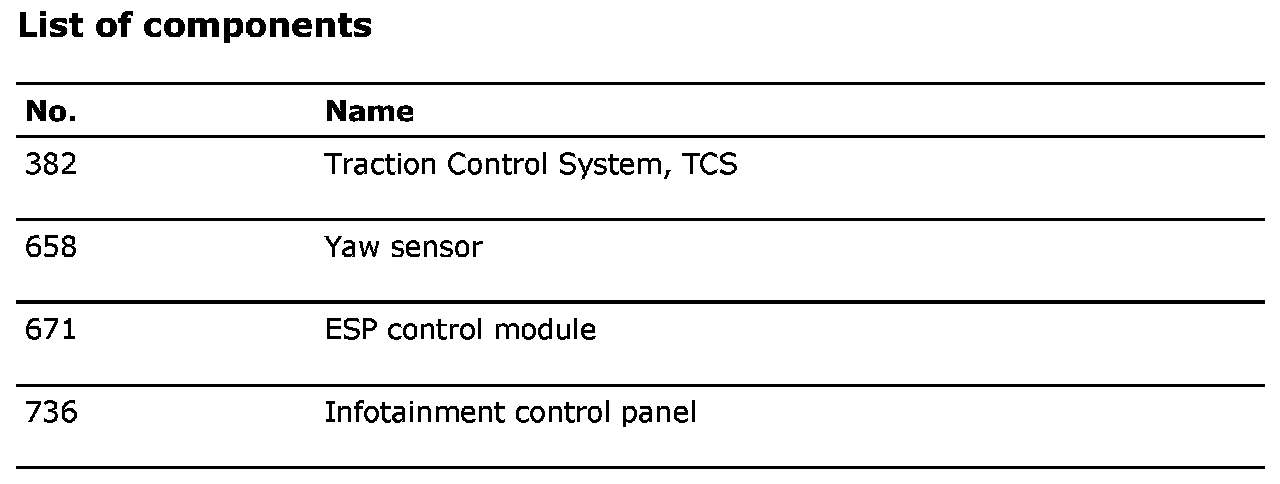

List Of Components:
