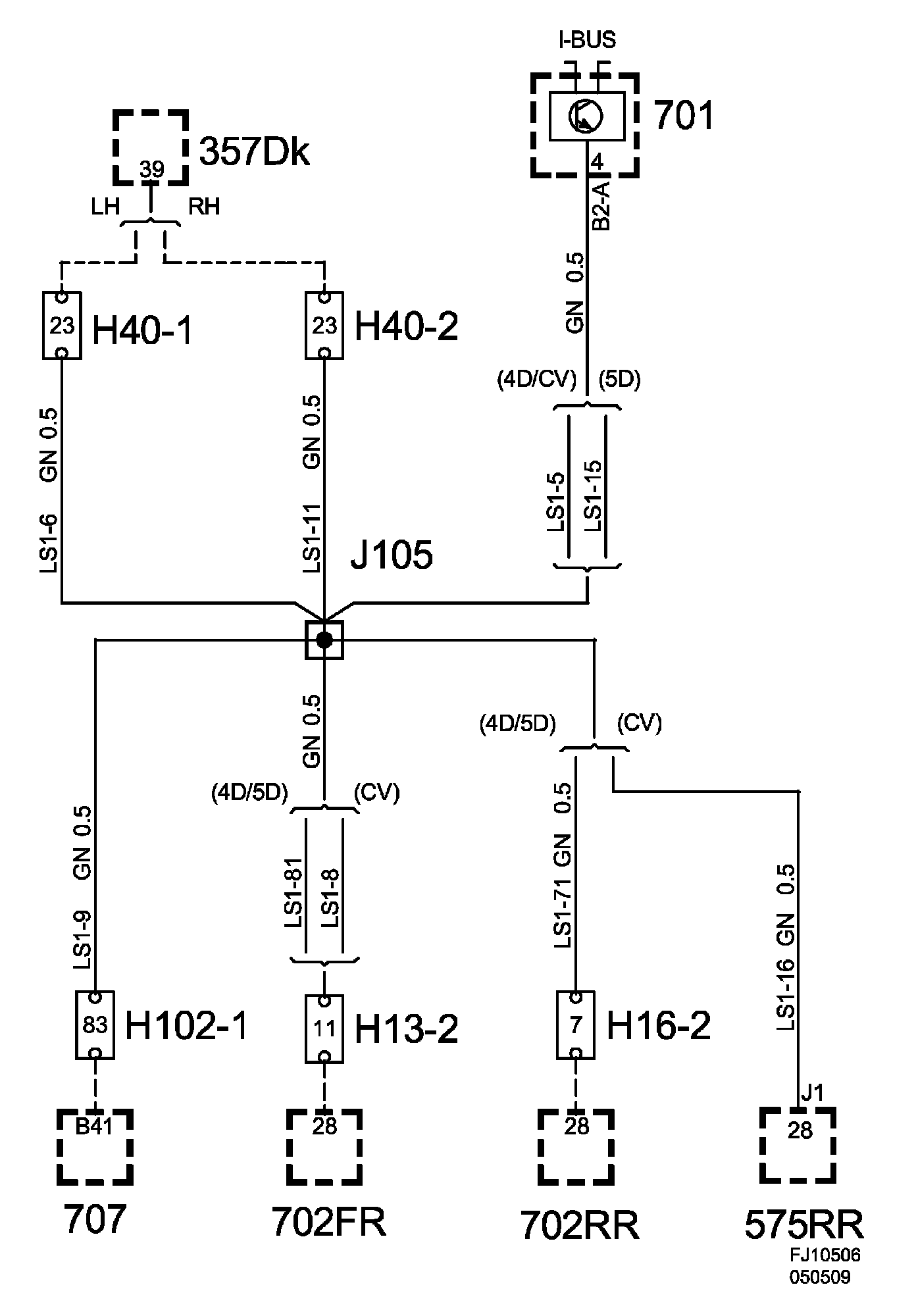

Crimp Connection J105, Main Harness

Location:

4D/5D: Approx. 290 mm from branching of grounding point G14 towards airbag control module

CV: Approx. 320 mm from branching to grounding point G14 towards the airbag control module
