Crimp Connection J165, Seat Harness
Location
LH: Approx. 30 mm from branching point control module towards seat switch
RH: Approx. 30 mm from branching point control module towards switch unit

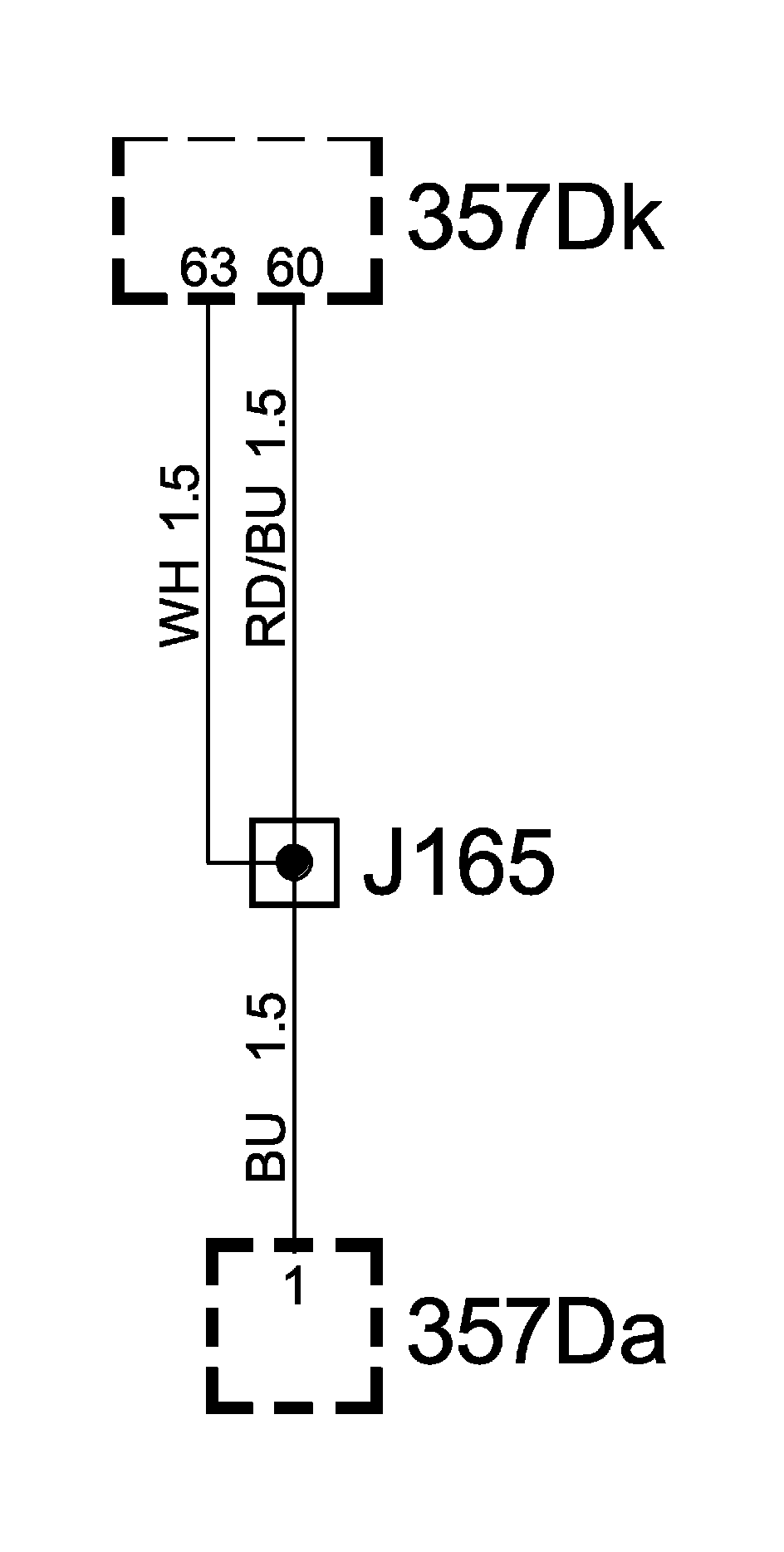

Crimp J165, Seat Harness:

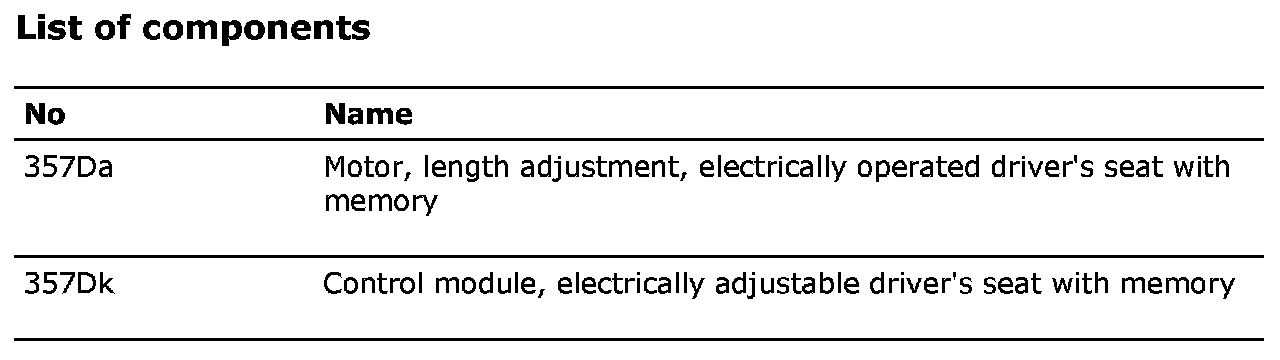

List Of Components:
Location
LH: Approx. 30 mm from branching point control module towards seat switch
RH: Approx. 30 mm from branching point control module towards switch unit
