Crimp Connection J168, Seat Harness
Location
Electrically adjustable seat CV LH: Approx. 350 mm from switch unit
Electrically adjustable seat CV RH: Approx. 380 mm from switch unit

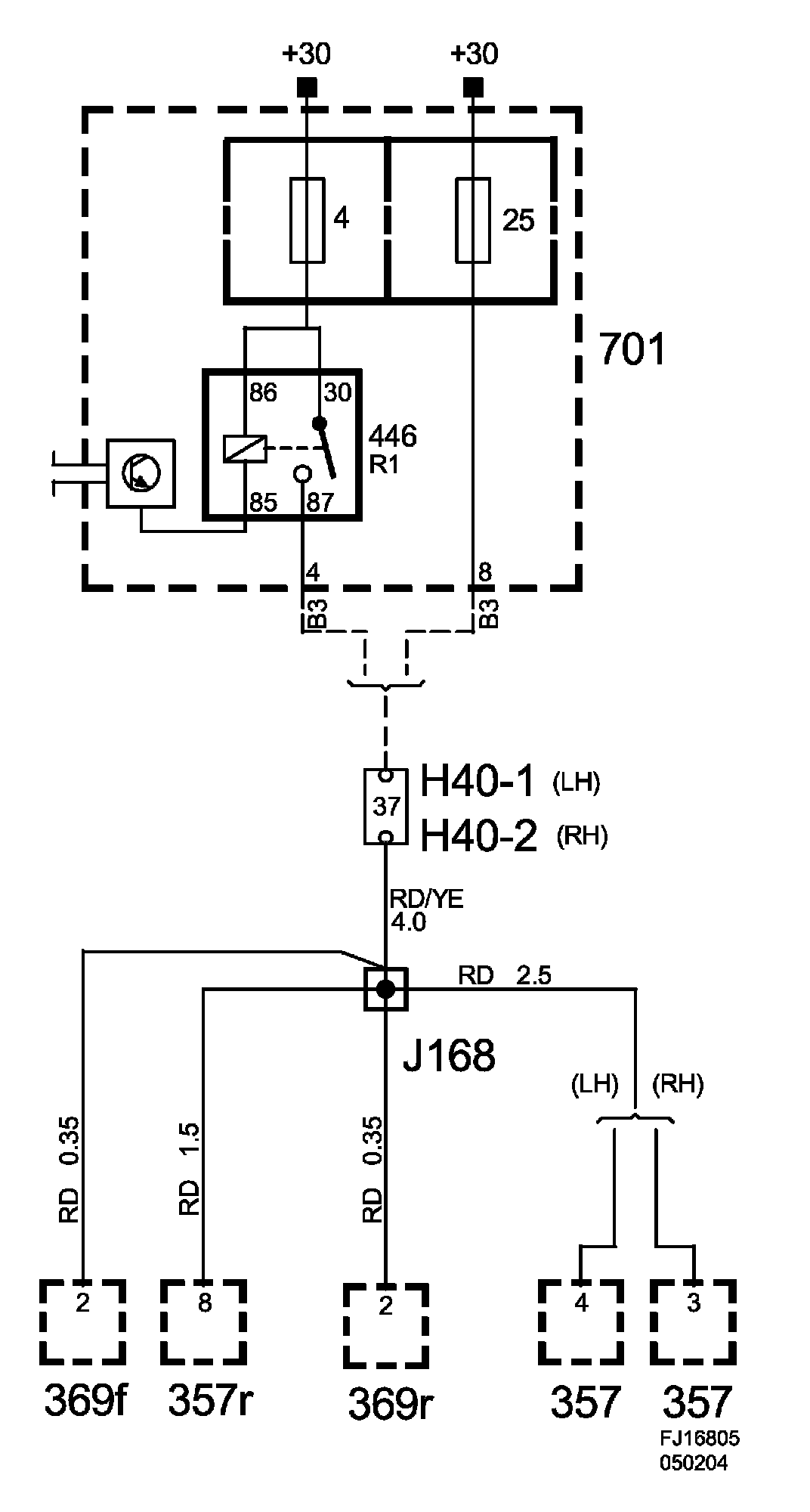

Crimp J168, Seat Harness:

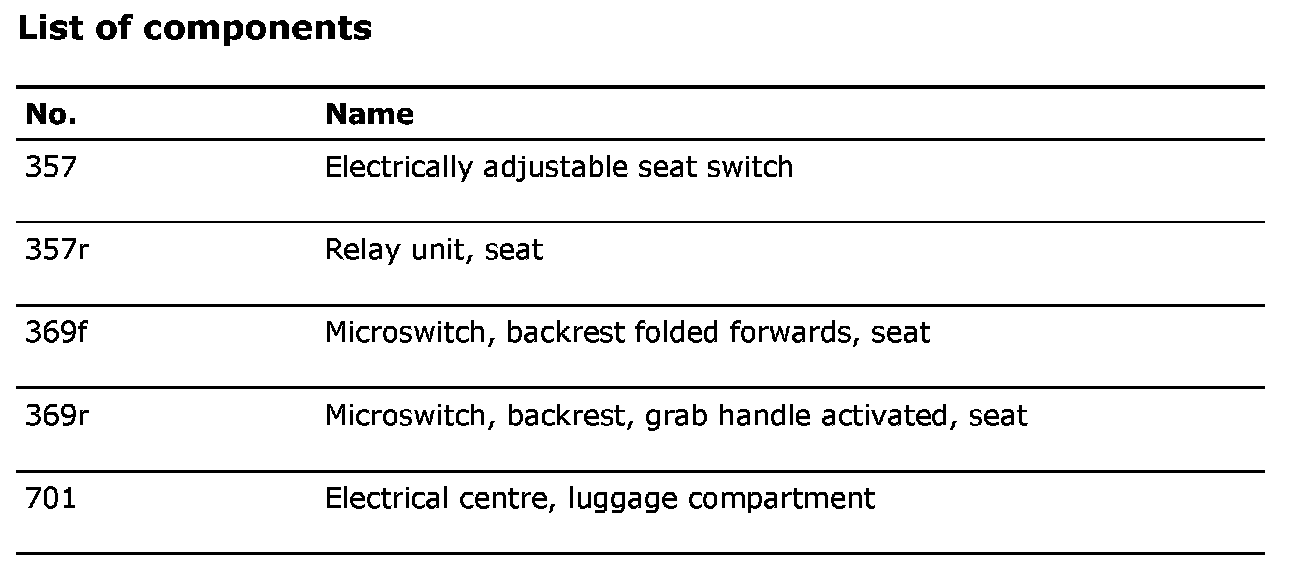

List Of Components:
Location
Electrically adjustable seat CV LH: Approx. 350 mm from switch unit
Electrically adjustable seat CV RH: Approx. 380 mm from switch unit
