Home >> Saab >> 2006 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Locations >> Splice Locations >> Crimp Connection J172, Spotlight Wiring Harness

Crimp Connection J172, Spotlight Wiring Harness



Location: Approx. 400 mm from branching grounding point G30A towards the spotlights

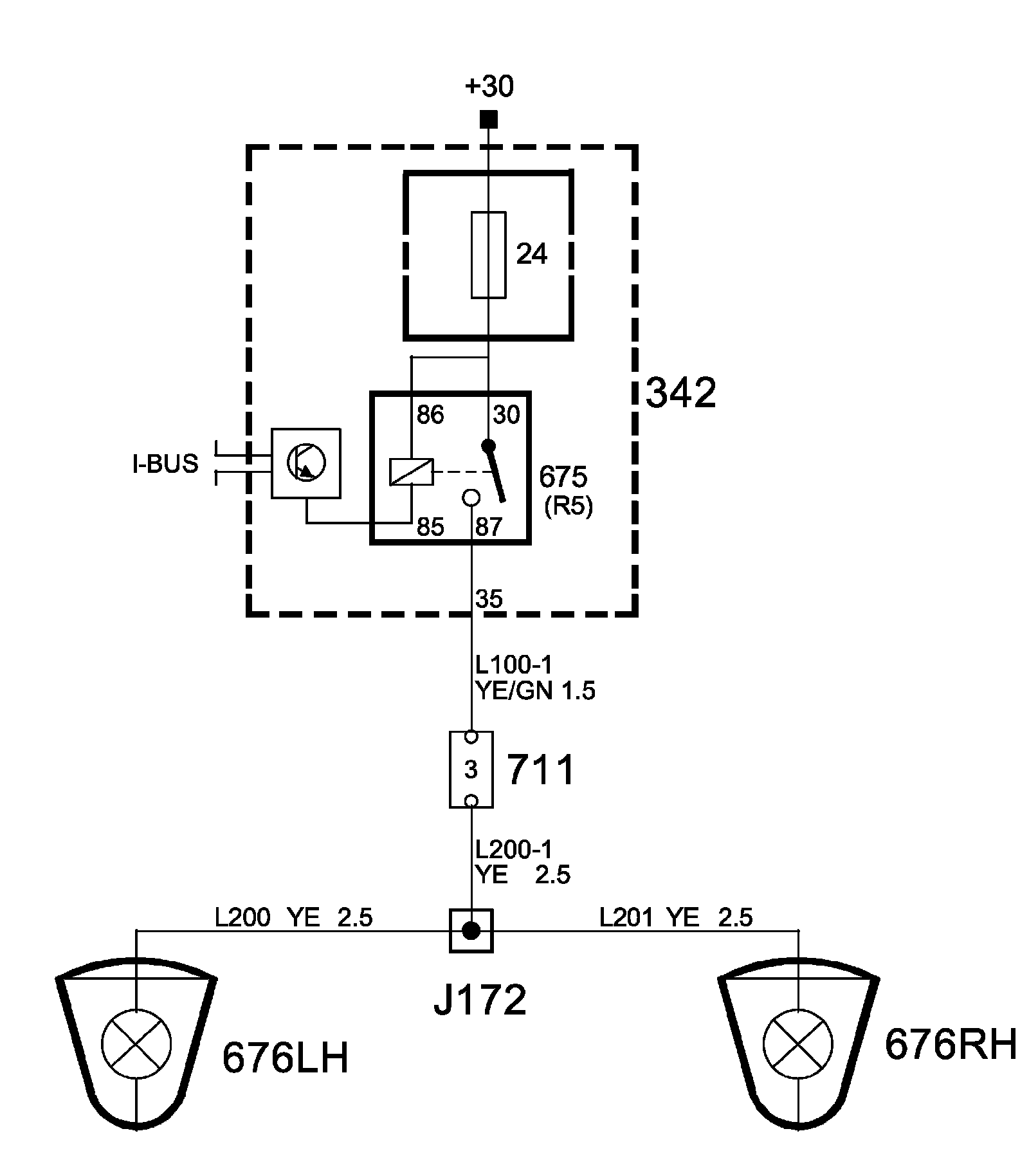

Crimp J172, Spotlight Wiring Harness:

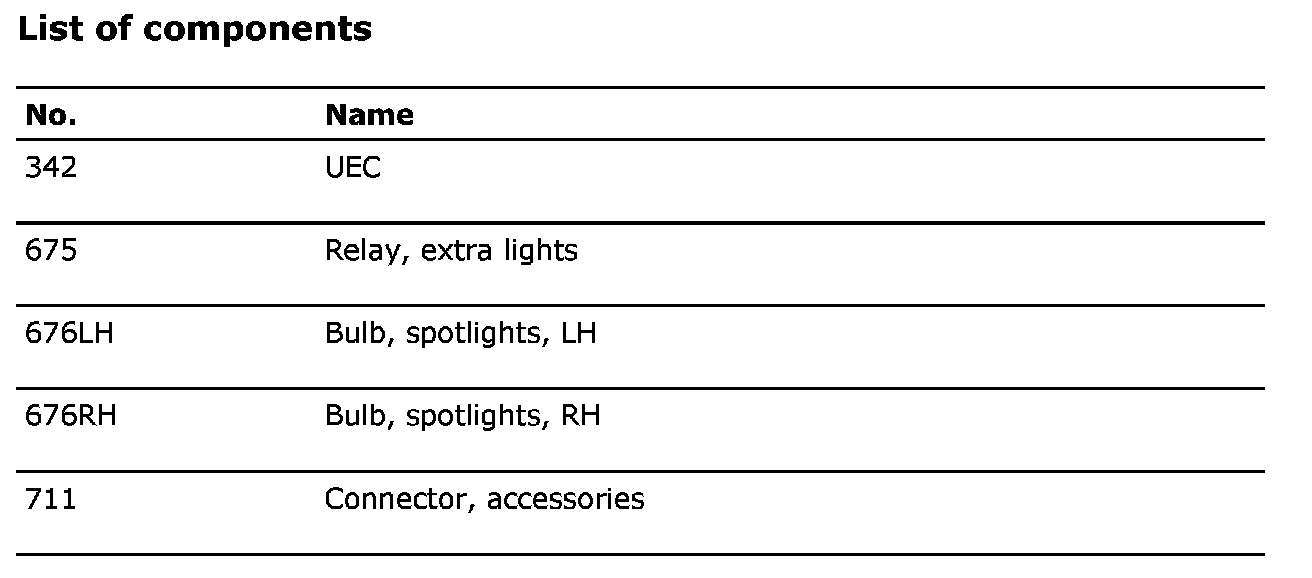

List Of Components:
