Home >> Saab >> 2006 >> 9-3 (9440) V6-2.8L Turbo >> Repair and Diagnosis >> Locations >> Splice Locations >> Crimp Connection J345, Main Wiring Harness SportCombi (Wagon)

Crimp Connection J345, Main Wiring Harness SportCombi (Wagon)



Location: Approx. 130 mm from Body 1 connector in REC

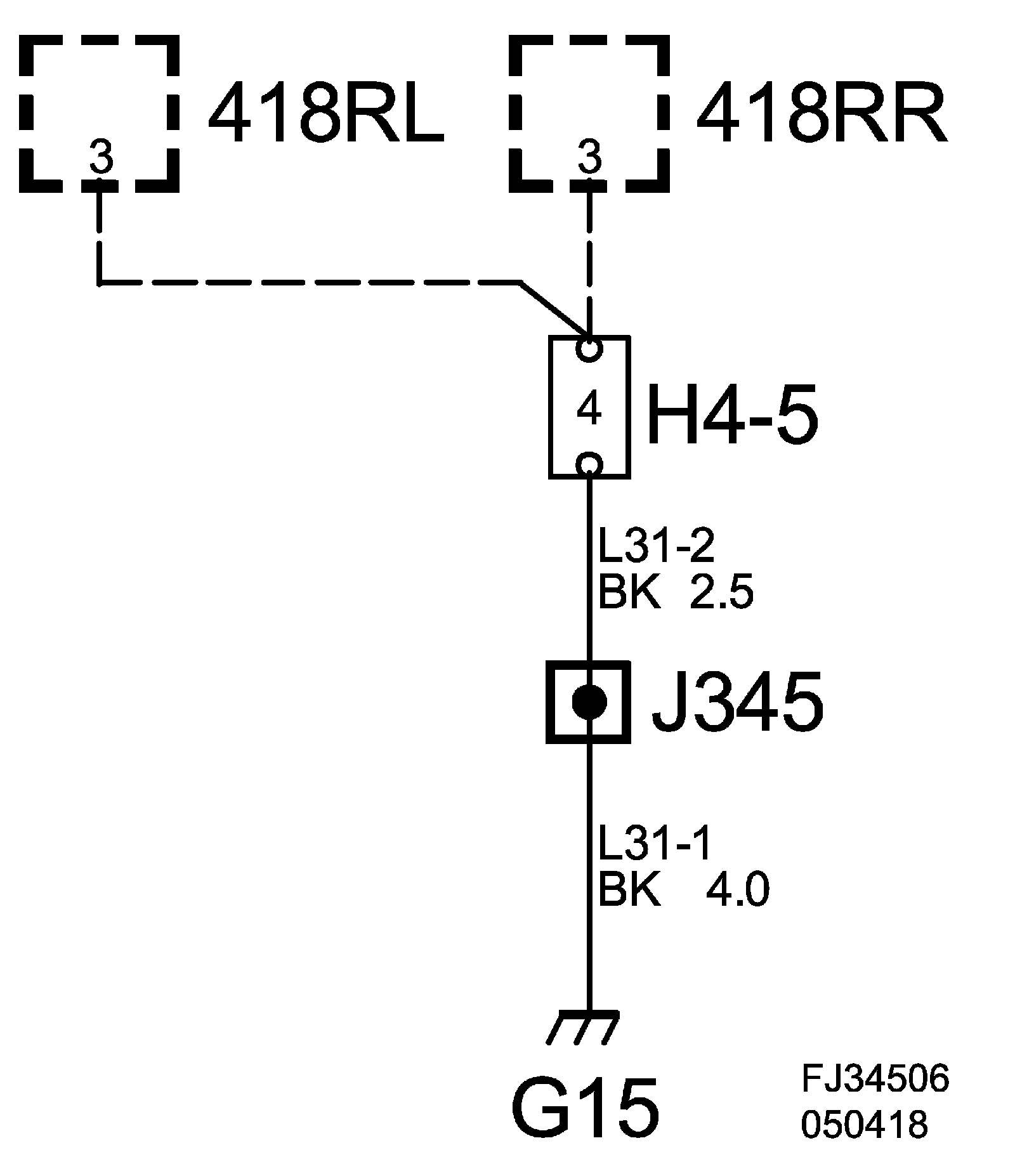

Crimp J345, Main Wiring Harness:

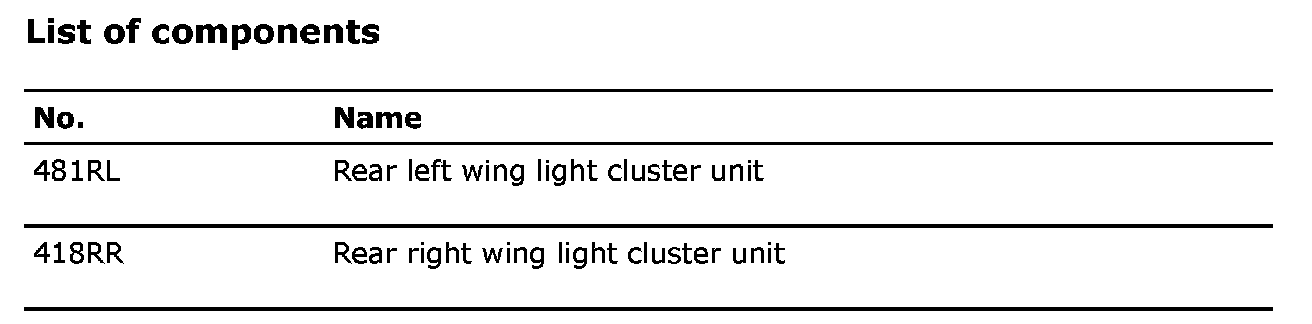

List Of Components:
