Crimp Connection J4, Front Harness



Location: Approx. 130 mm from branching of grounding point G30 towards the right headlamp

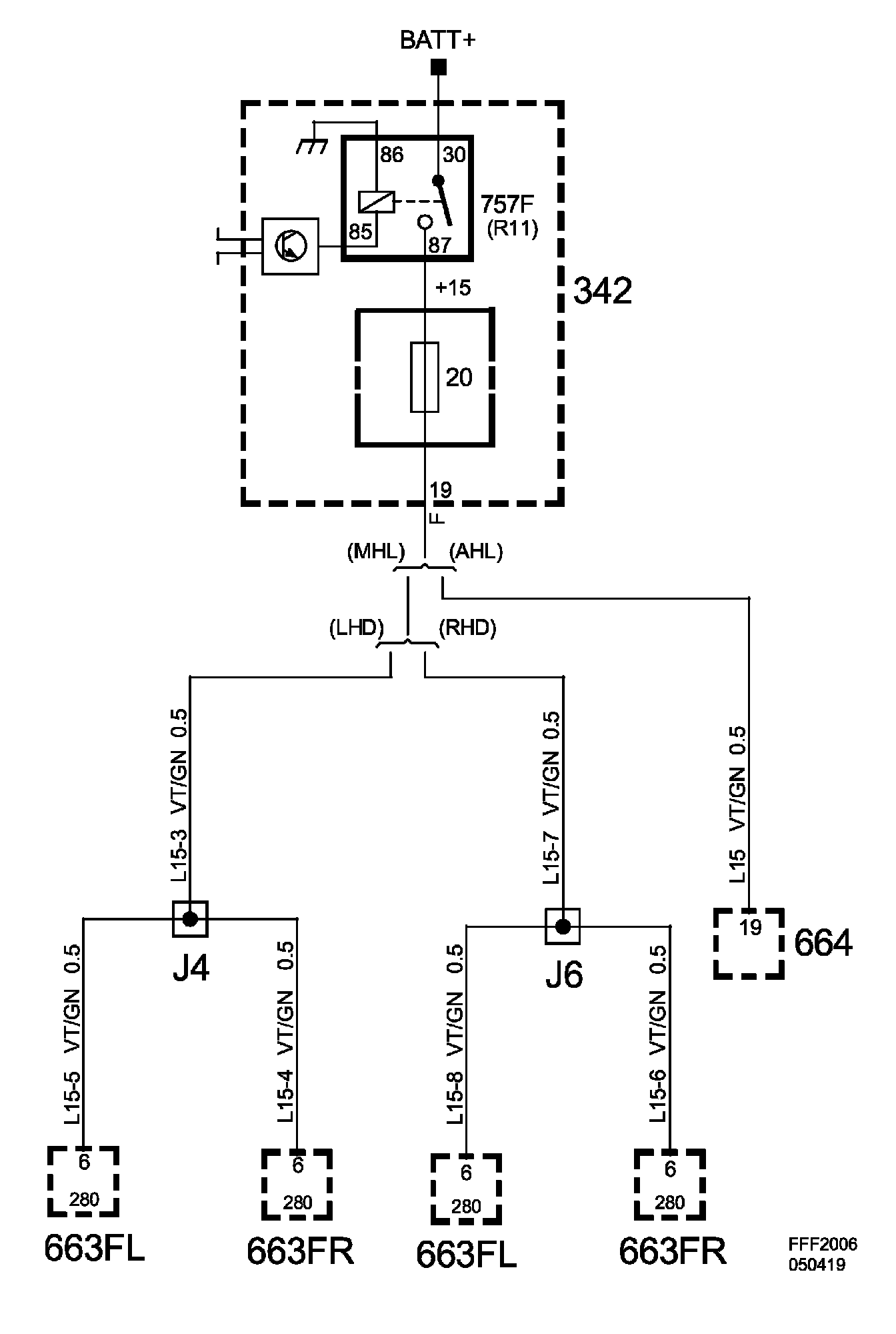

Crimp Connection J4, Front Harness:

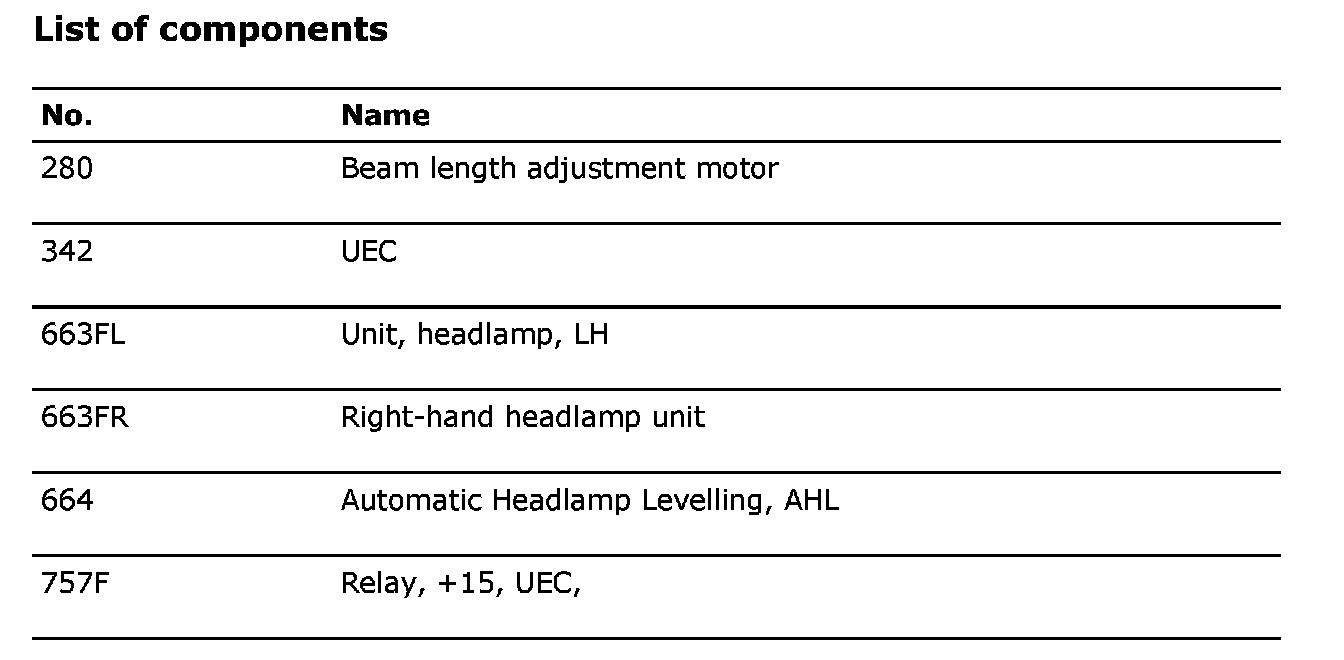

List Of Components:
