Crimp Connection J95, Main Harness



Location:

4D/5D: Approx. 60 mm from branching point front left door towards engine bay

CV: Approx. 30 mm from branching point left front door to engine bay

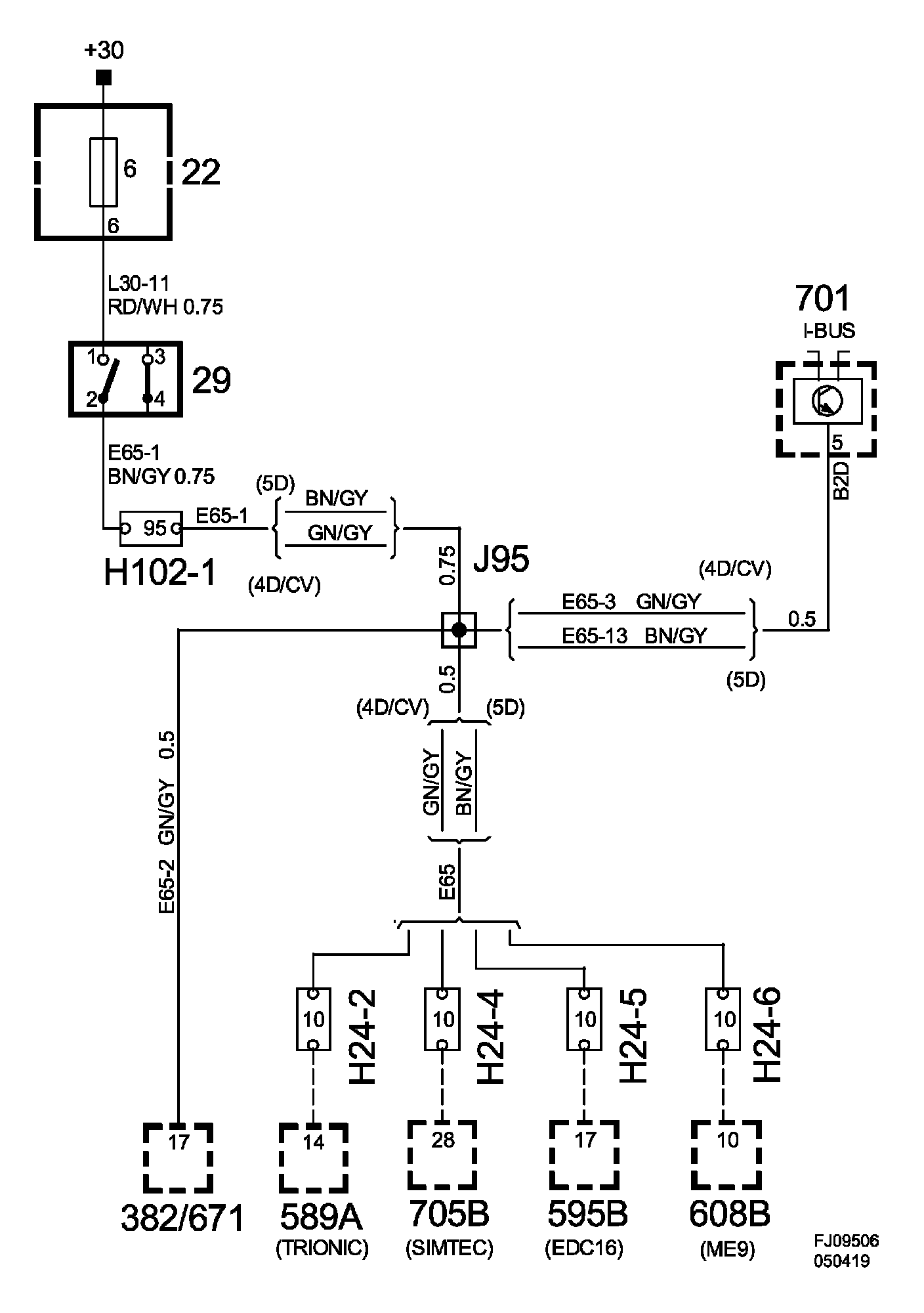

Crimp J95, Main Harness:




List Of Components:
