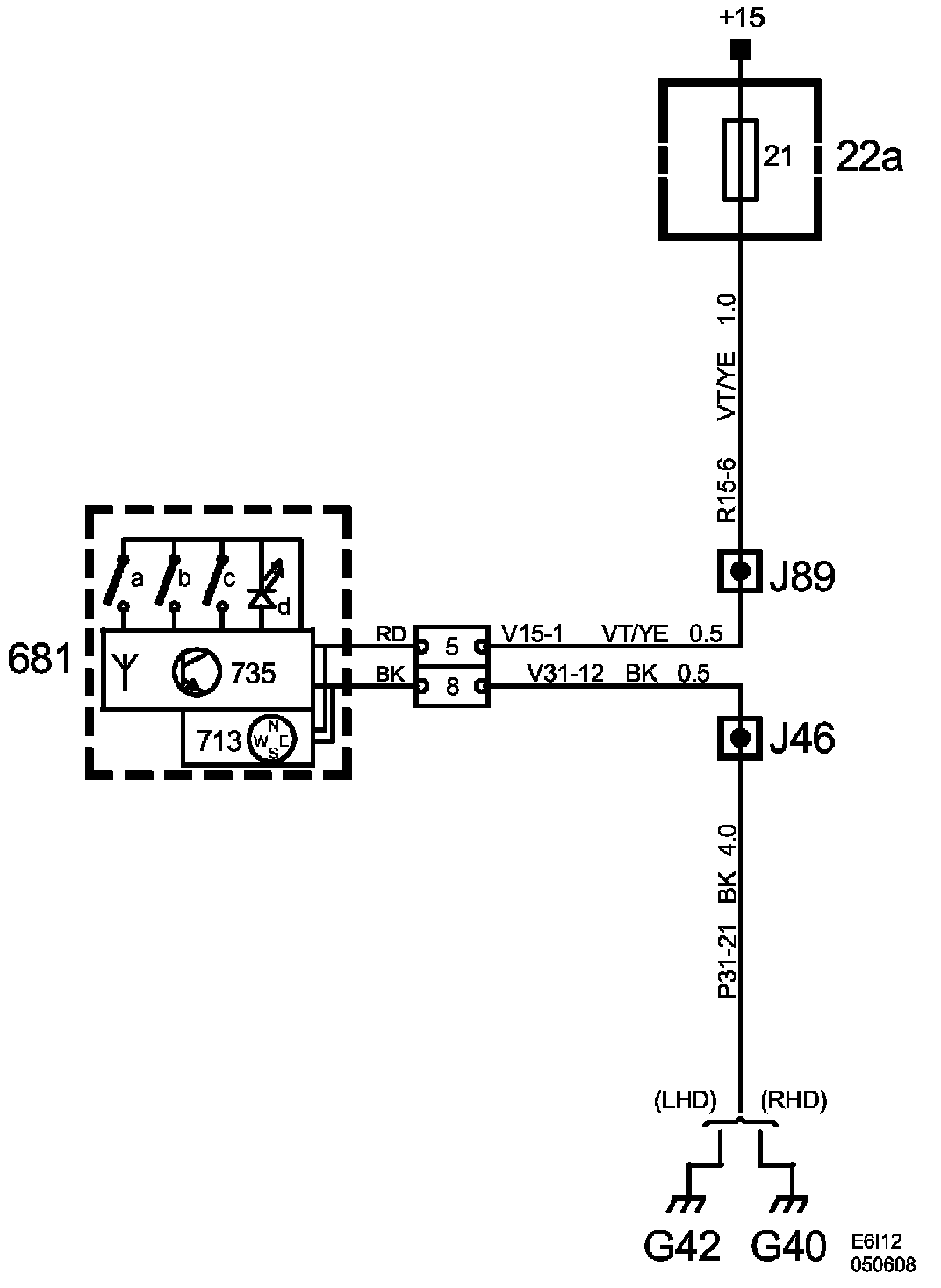

Garage Door Opener Transmitter

Compass/GDO:

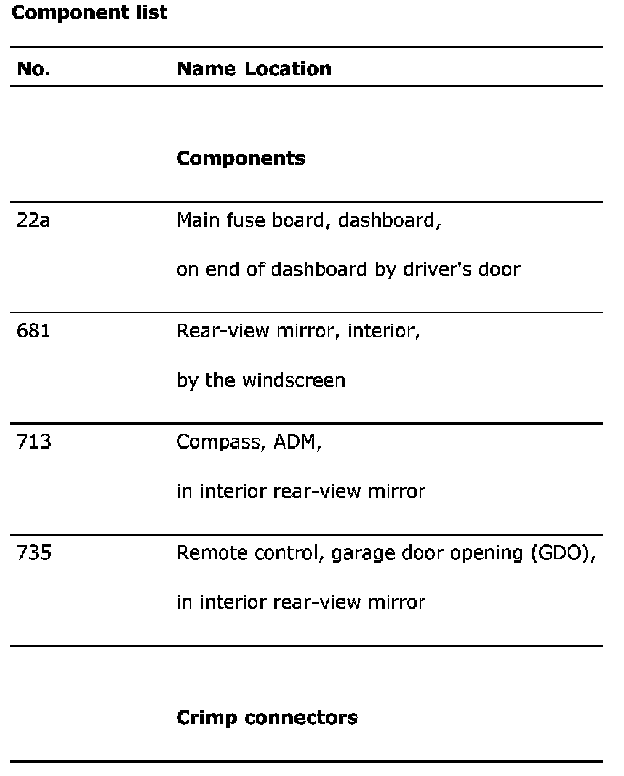

Component List (Part 1):

Component List (Part 2):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
