Vanity Lamp

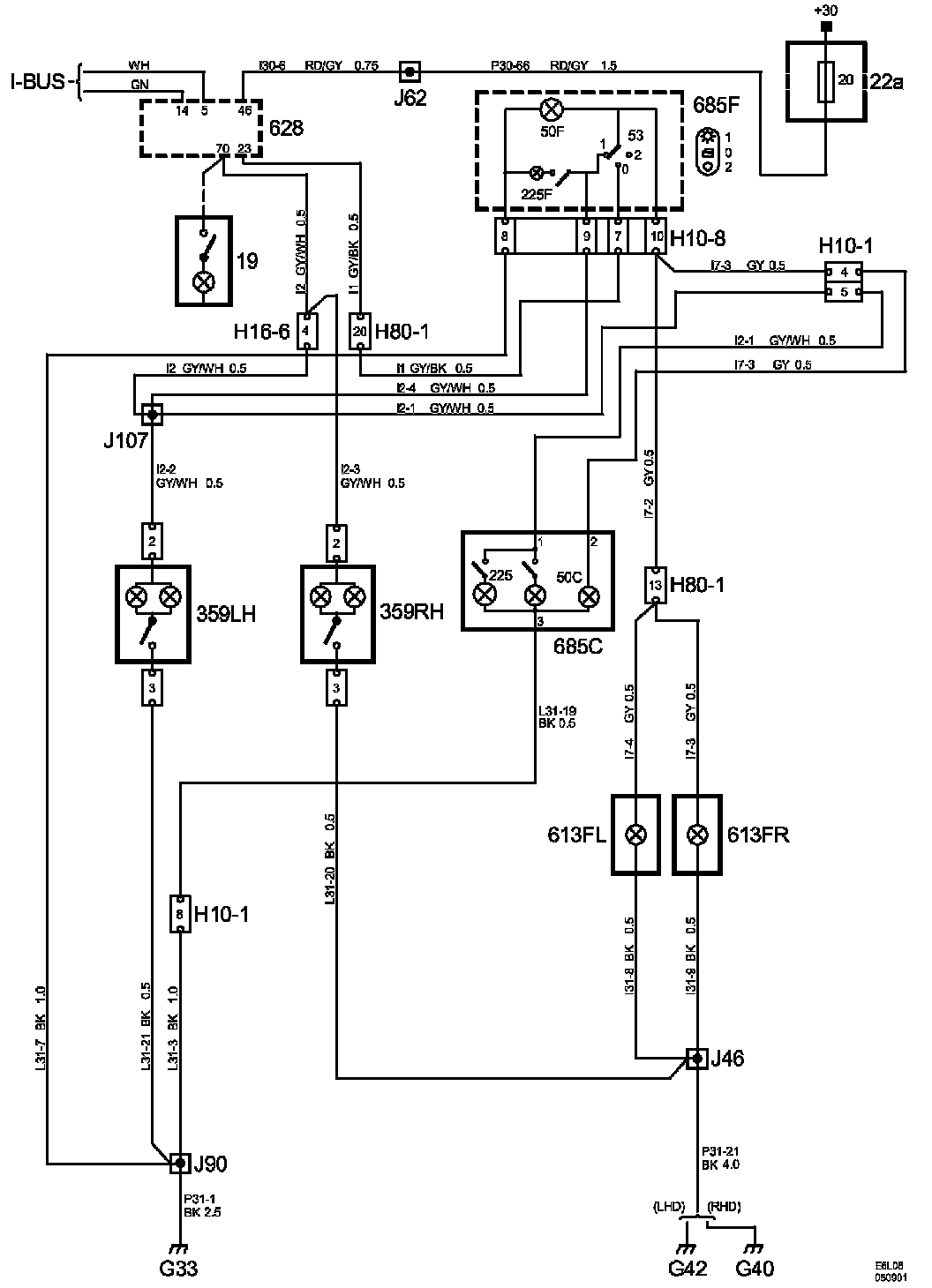

Interior Lighting And Reading Lamps:

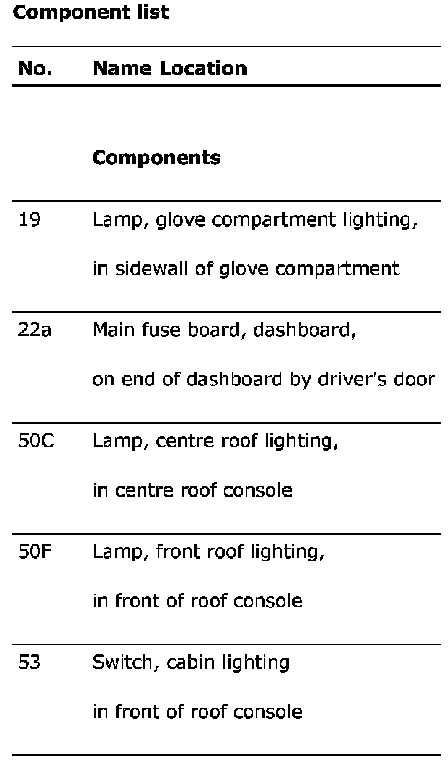

Component List (Part 1):

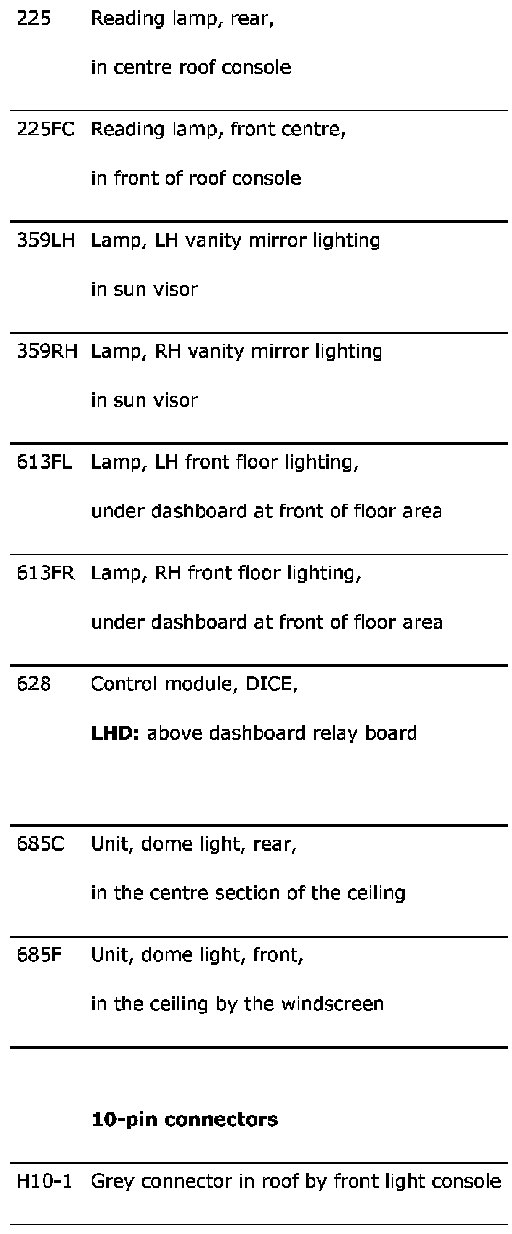

Component List (Part 2):

Component List (Part 3):

Component List (Part 4):

Power Supply Diagrams: The diagrams for the power supplies that may be feeding this system (+30, +15, +54, +X, and +B) can be found at Power and Ground Distribution diagrams. Electrical Diagrams
