Grounding Point G14
Grounding Point G14
Location:
On seat member under left-hand seat.

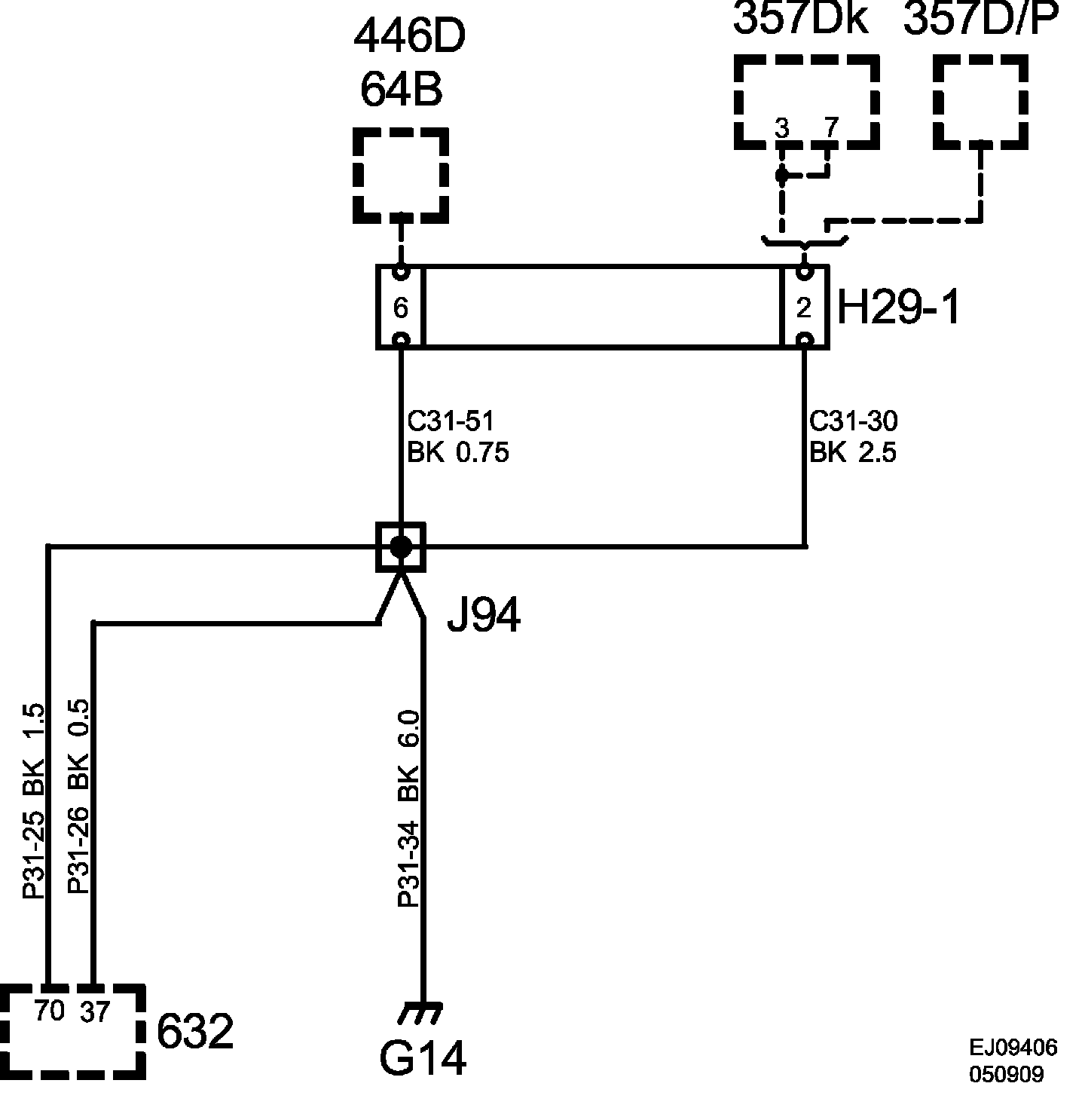

Grounding Point G14:

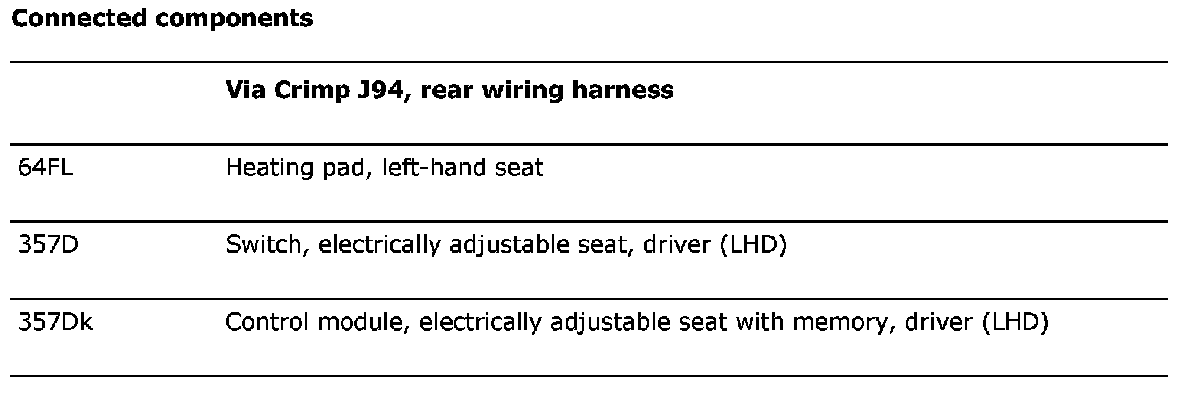

Connected Components (Part 1):

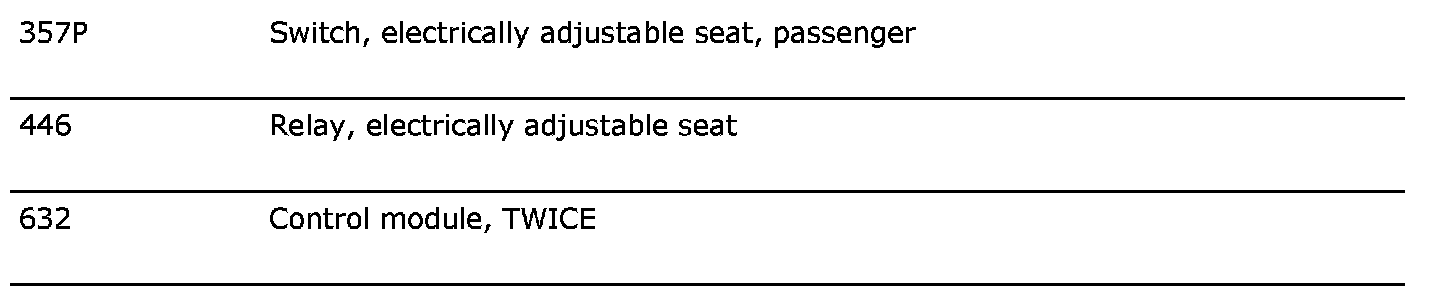

Connected Components (Part 2):
