Grounding Point G33
Grounding Point G33
Location:
Below left-hand A-pillar.

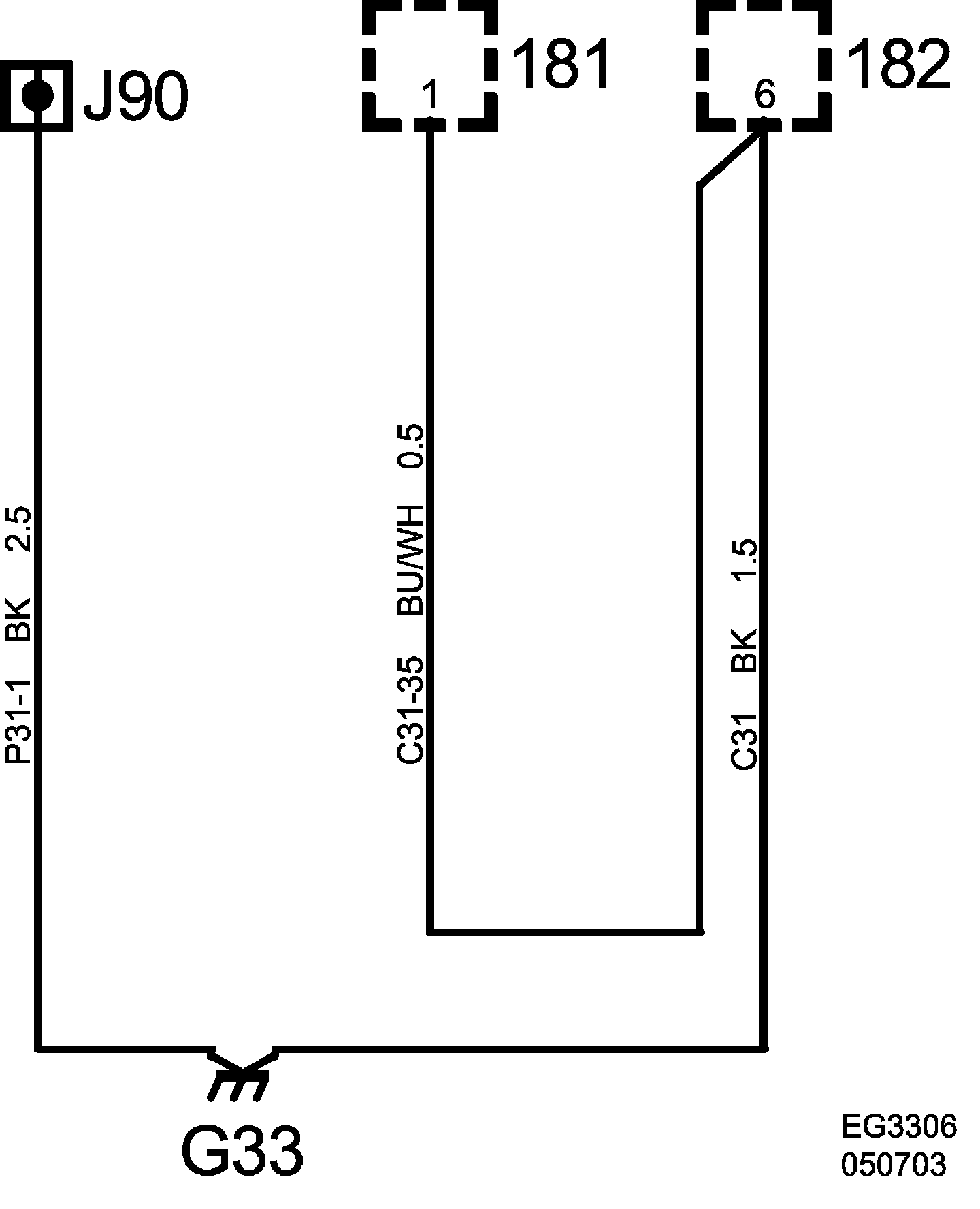

Grounding Point G33:

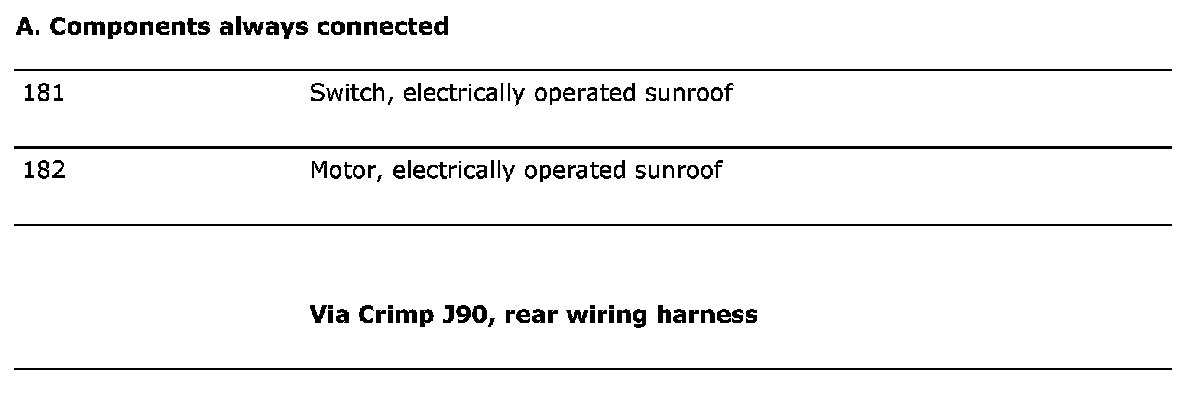

Connected Components (Part 1):
Connected Components (Part 2):
