Grounding Point G40
Grounding Point G40

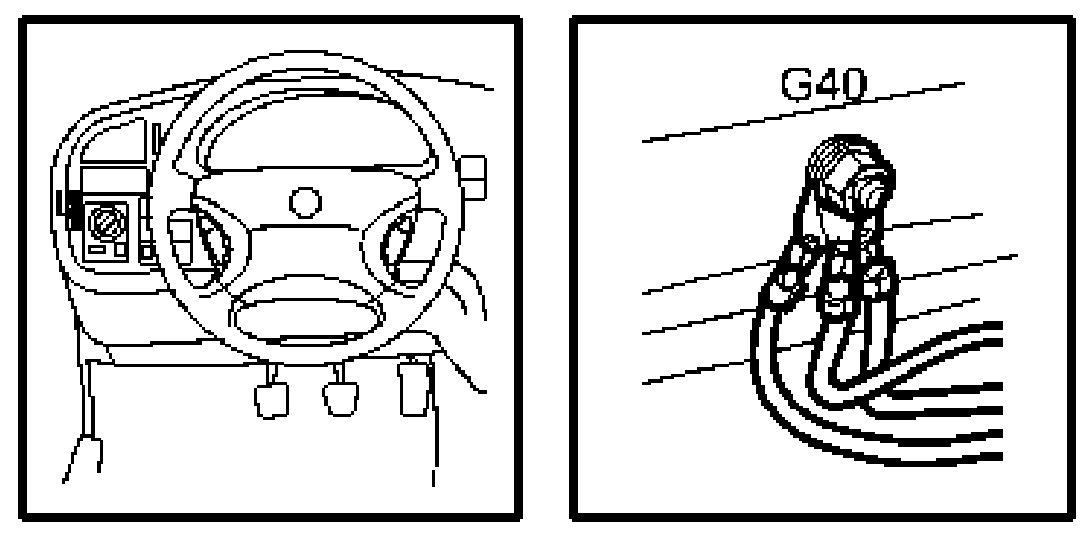

Location:
In passenger compartment on left-hand side of knee member.

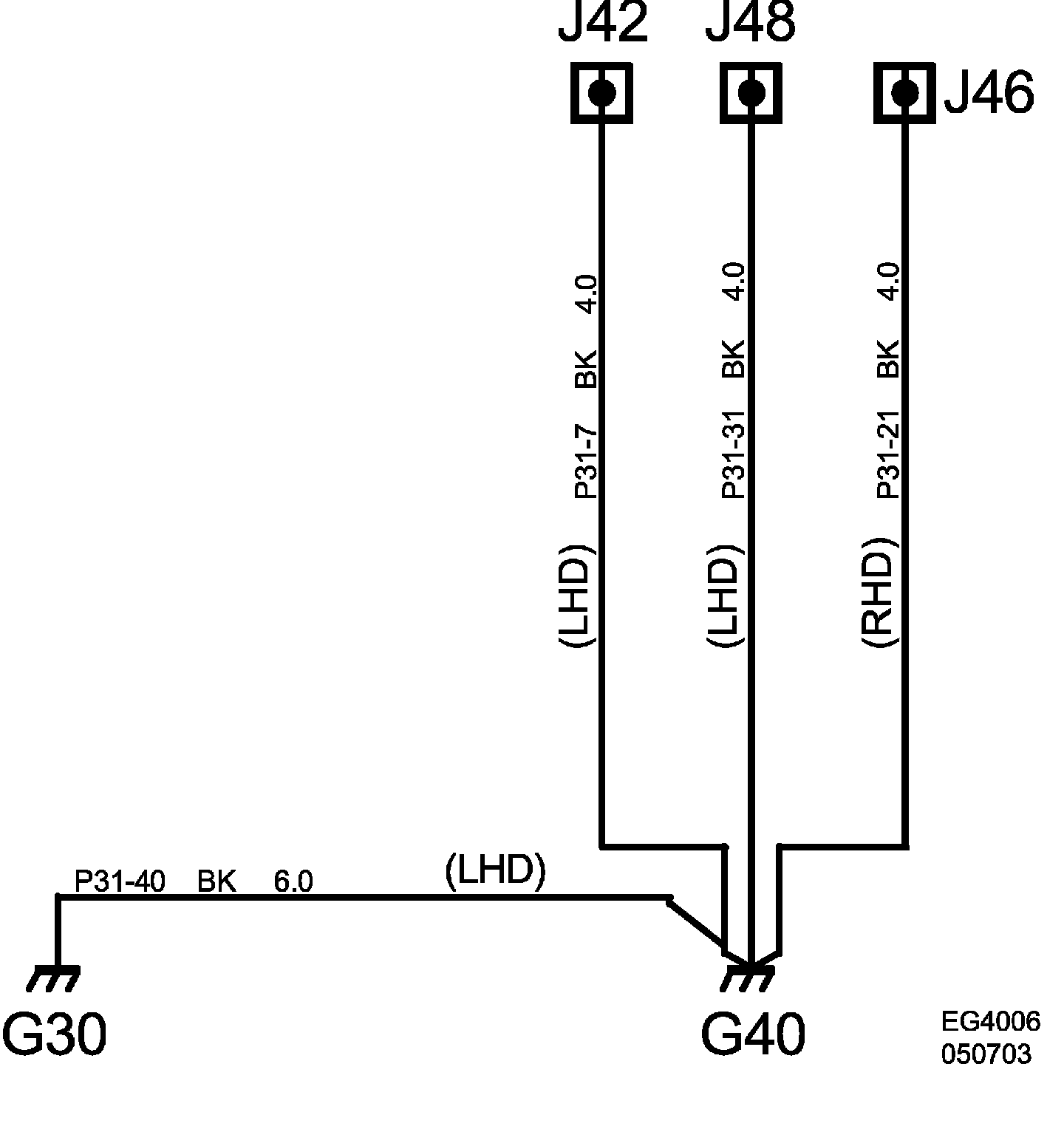

Grounding Point G40:

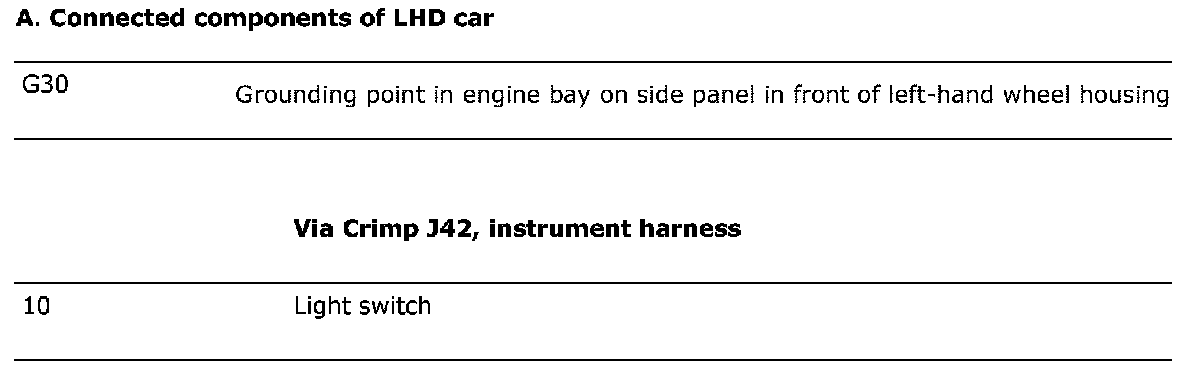

Connected Components (Part 1):

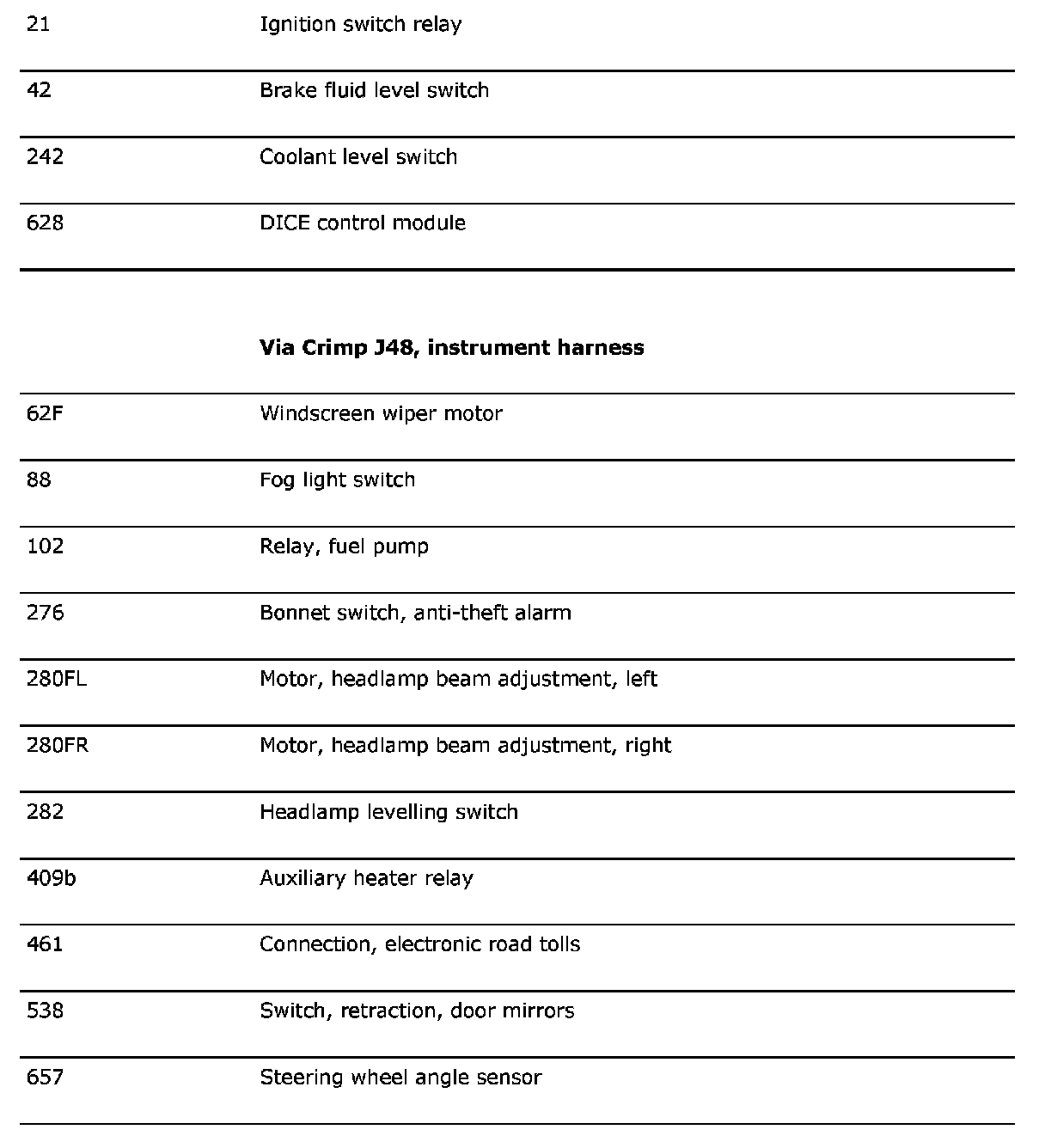

Connected Components (Part 2):
