Grounding Point G45 (Only 5D)
Grounding Point G45 (Only 5D)

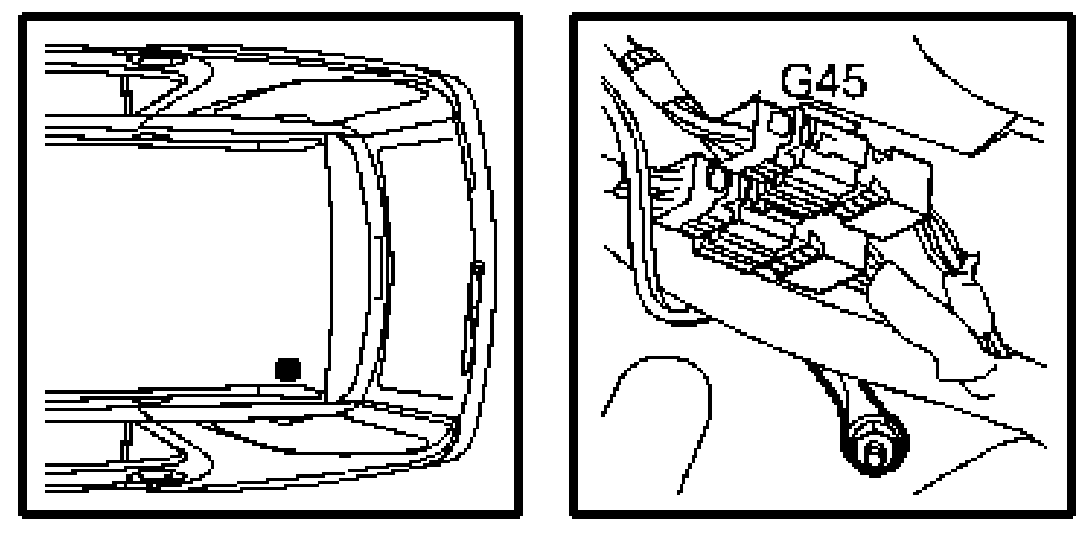

Location:
In roof above LH D-pillar.
Grounding Point G45 (Only 5D):

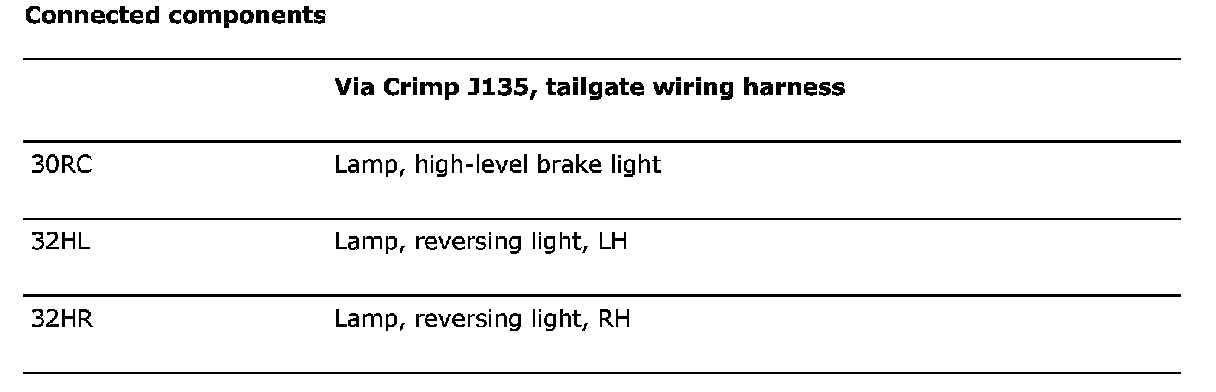

Connected Components (Part 1):

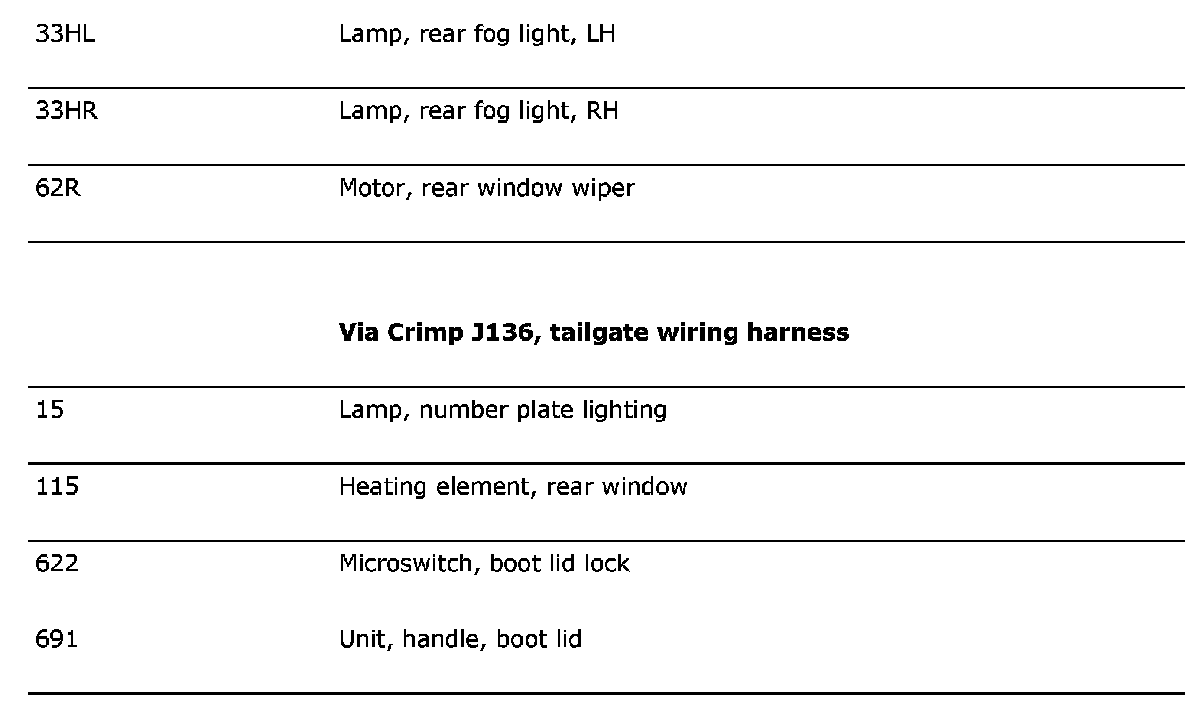

Connected Components (Part 2):
