System Diagram

Automatic Transmission Controls Diagrams

Automatic Transmission Controls Diagrams 1:

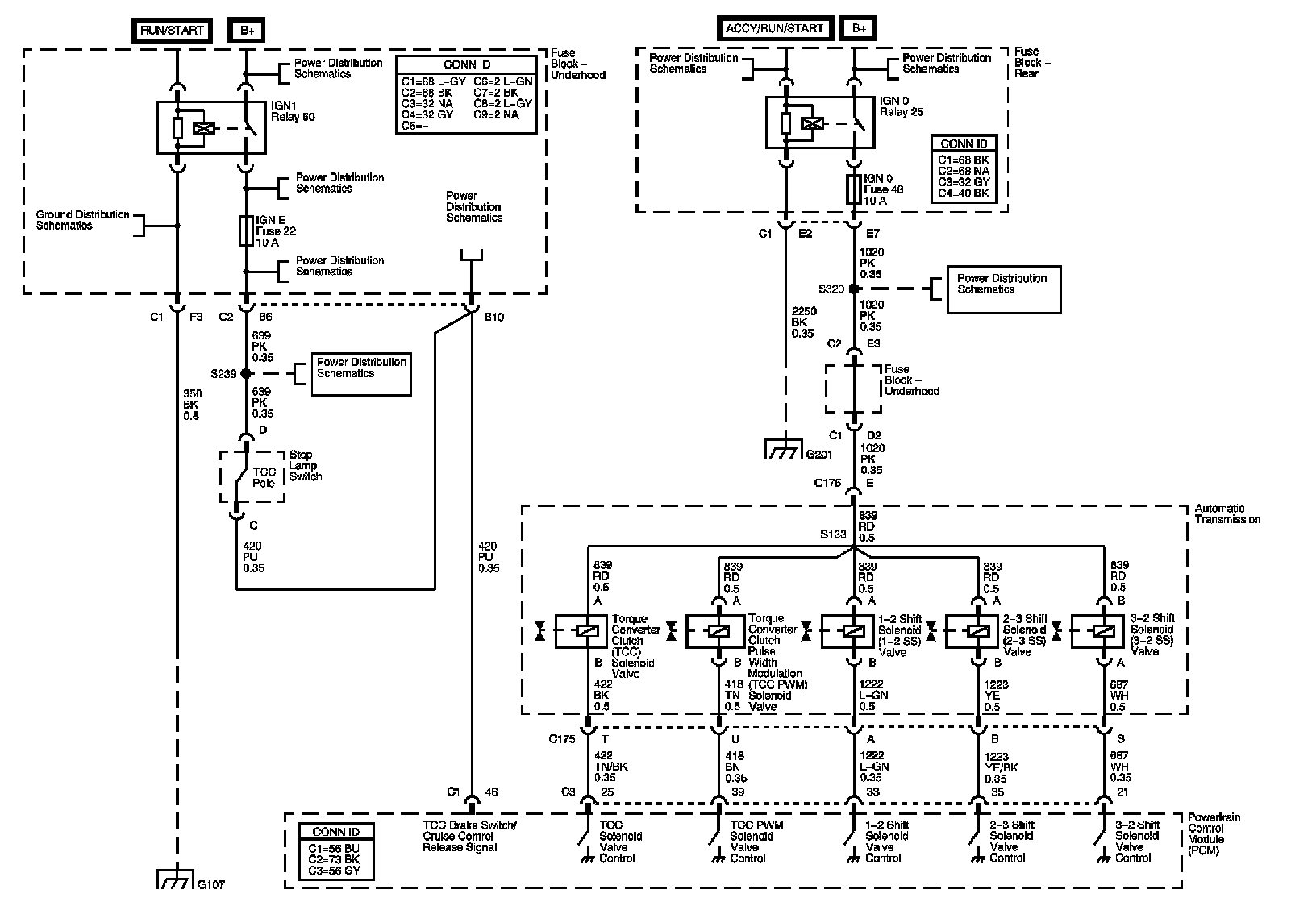

Shift Control and Stop Lamp Switch

Automatic Transmission Controls Diagrams 2:

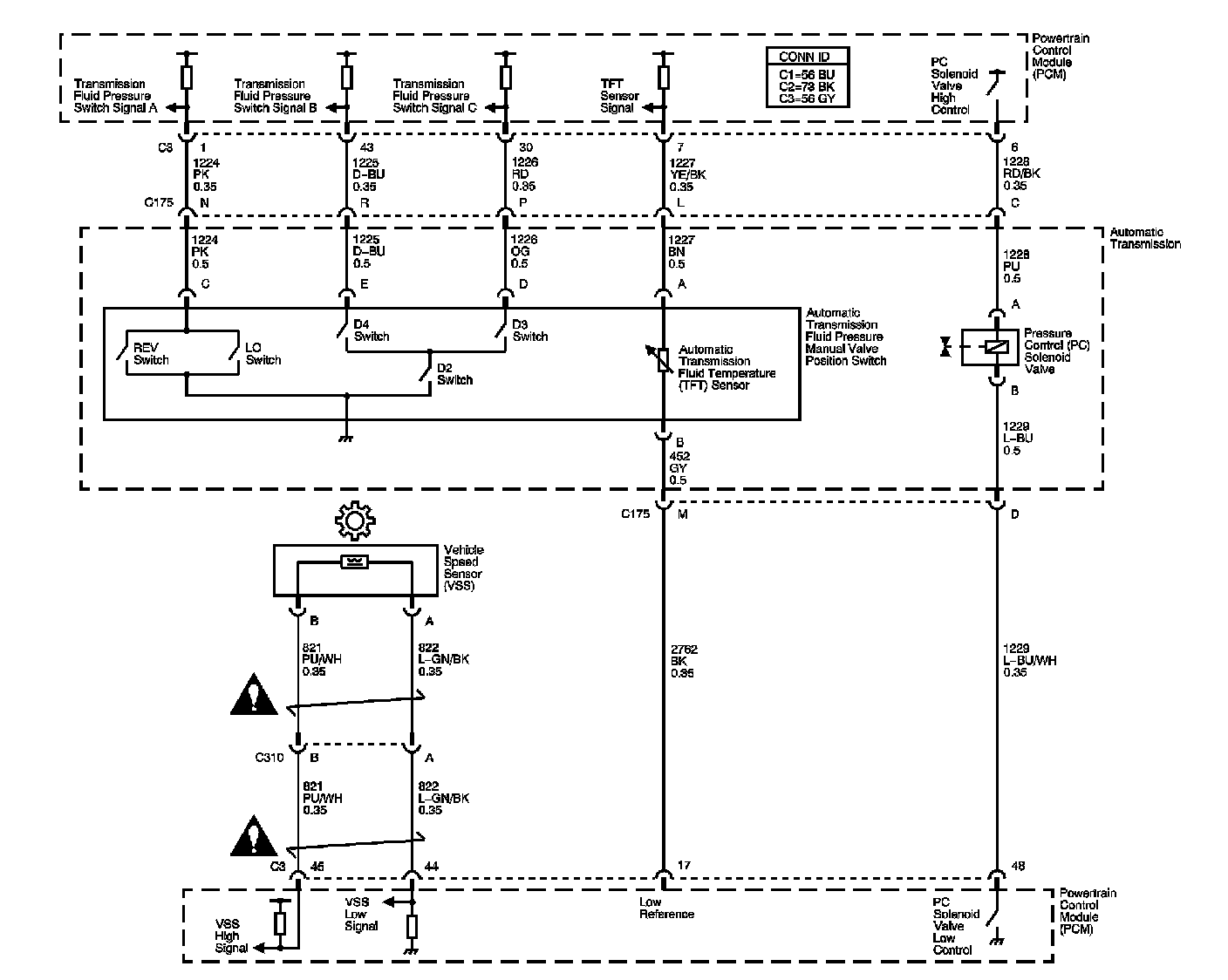

Pressure Controls, Temperature, and VSS

Automatic Transmission Controls Diagrams 3:

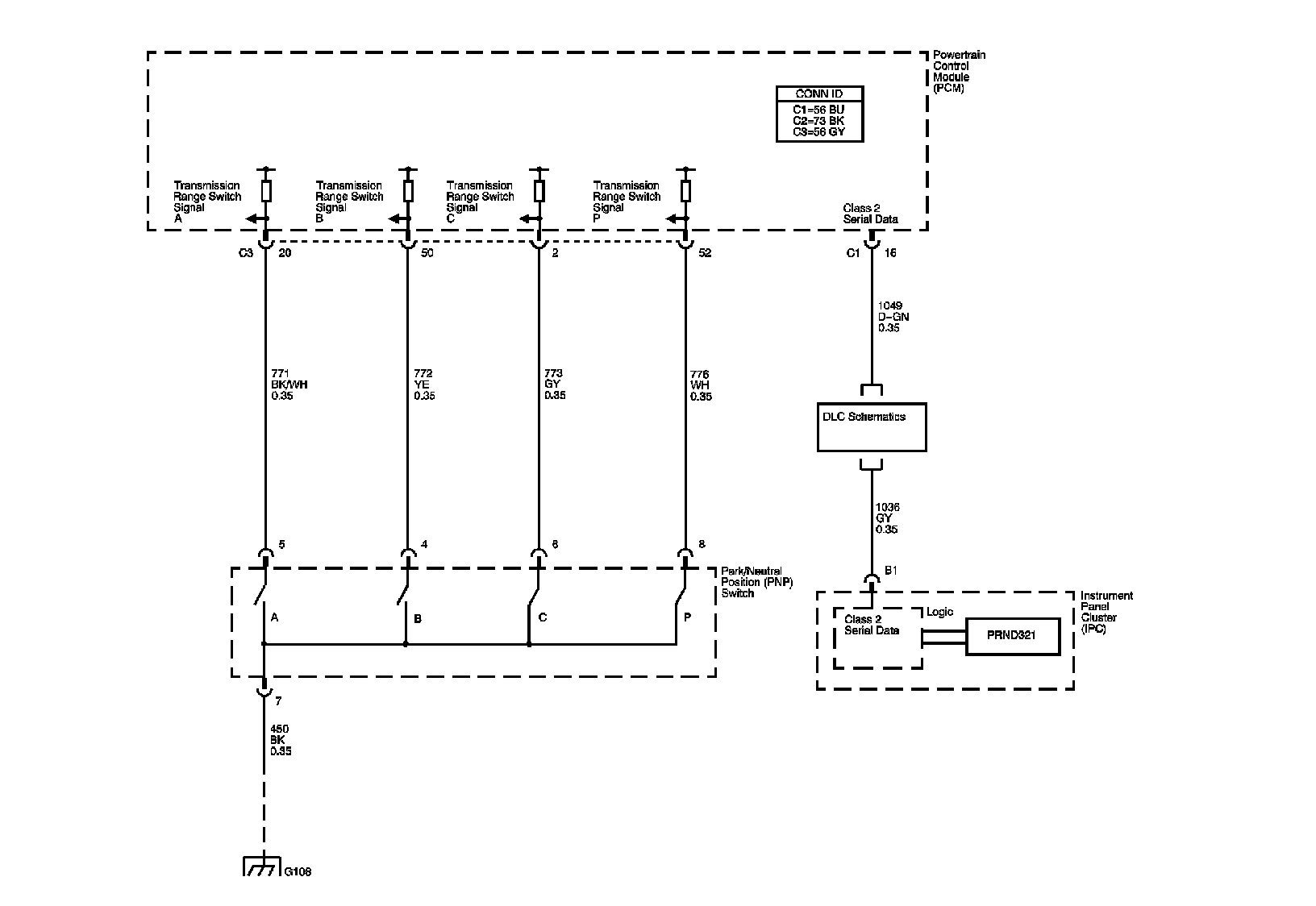

PNP Switch, Serial Data, and Indicators

Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
